5A Check Function of Air Exhaust System
5A Check Function of Air Exhaust System

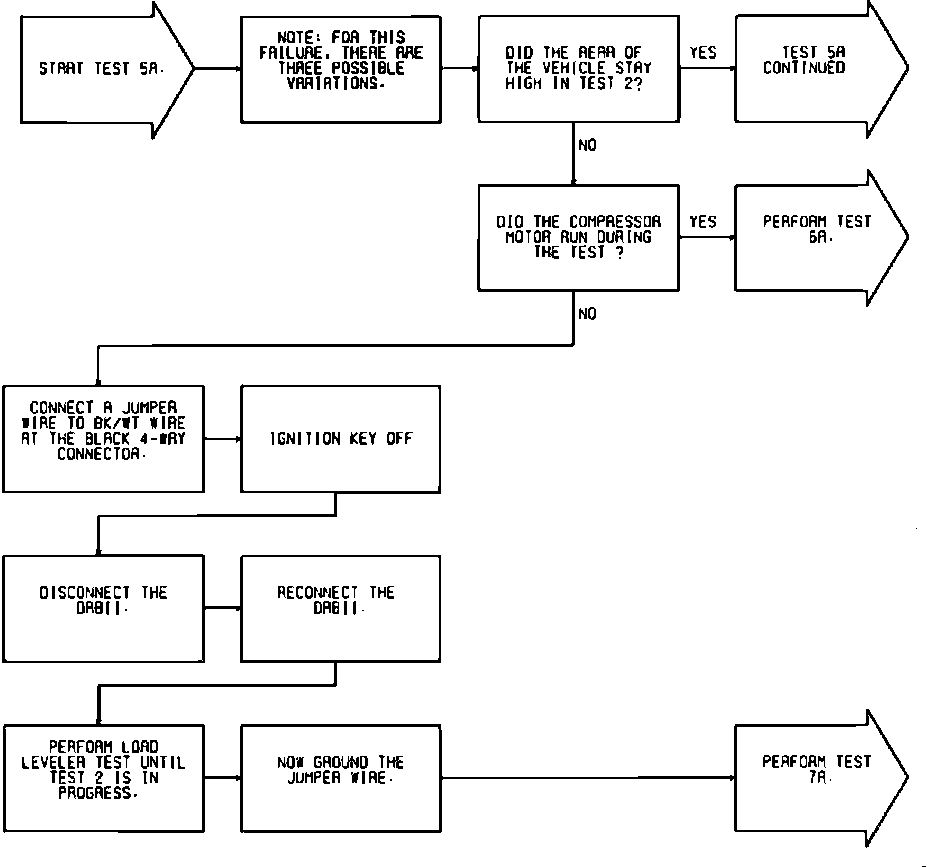

Fig. 22 Test 5A, Checking Function Of Air Exhaust System (Part 1 Of 2):

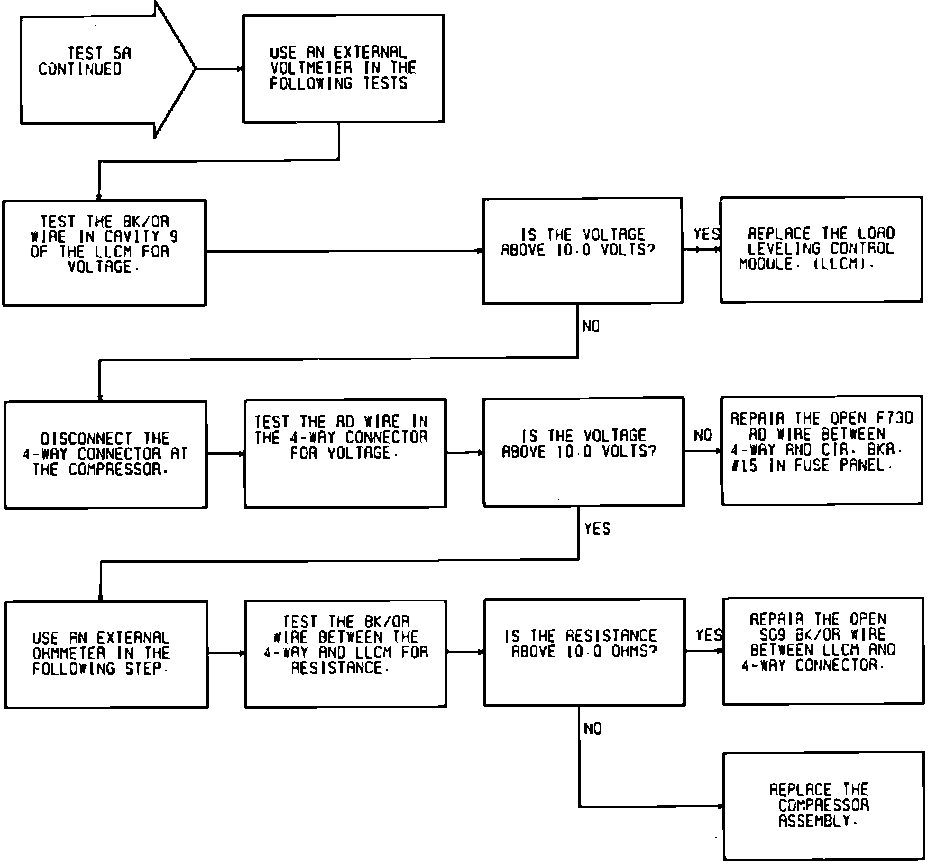

Fig. 22 Test 5A, Checking Function Of Air Exhaust System (Part 2 Of 2):
