3A Right Front Height Sensor Circuit

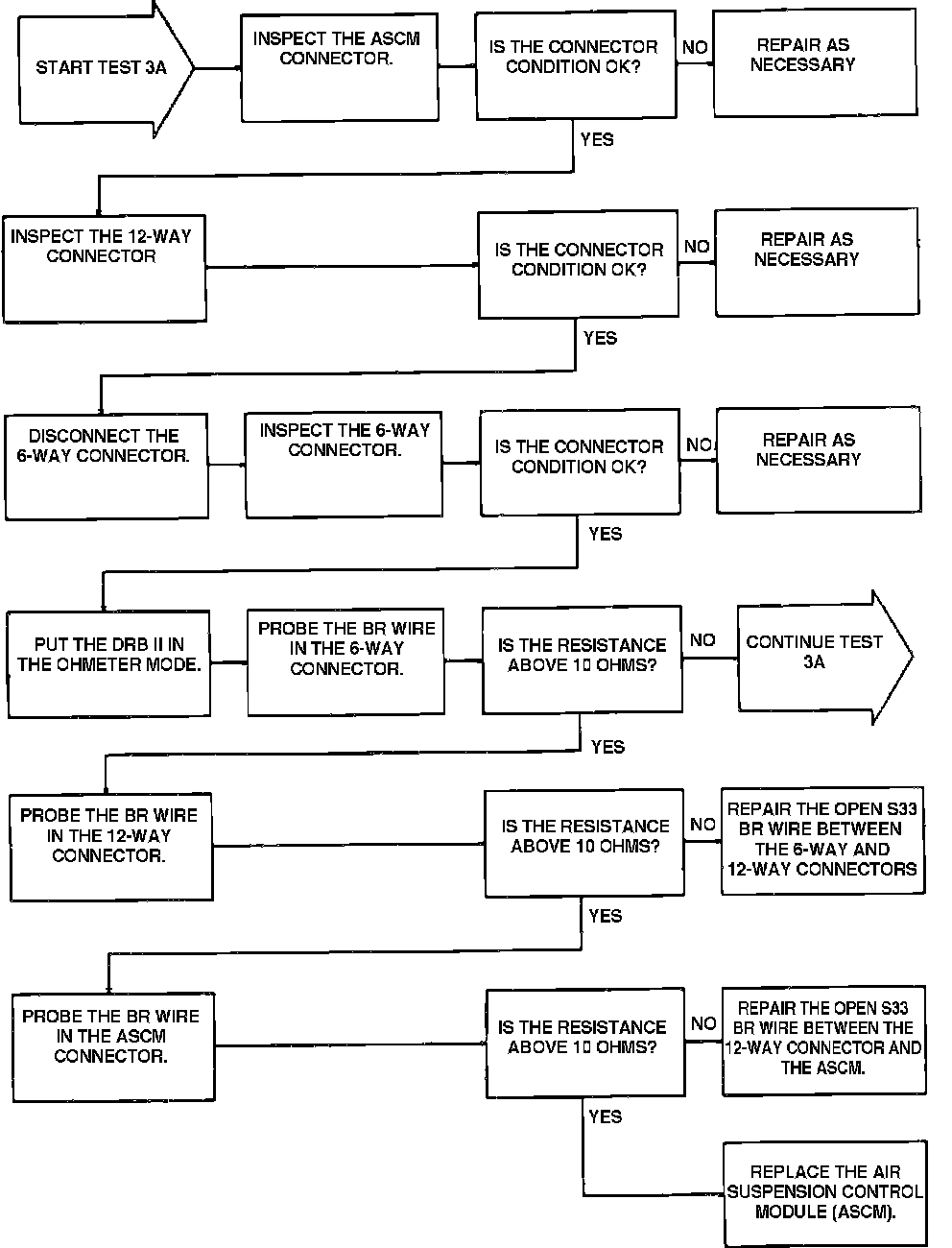

Fig. 30 Test 3A, Testing Right Front Height Sensor Circuit (Part 1 Of 4):

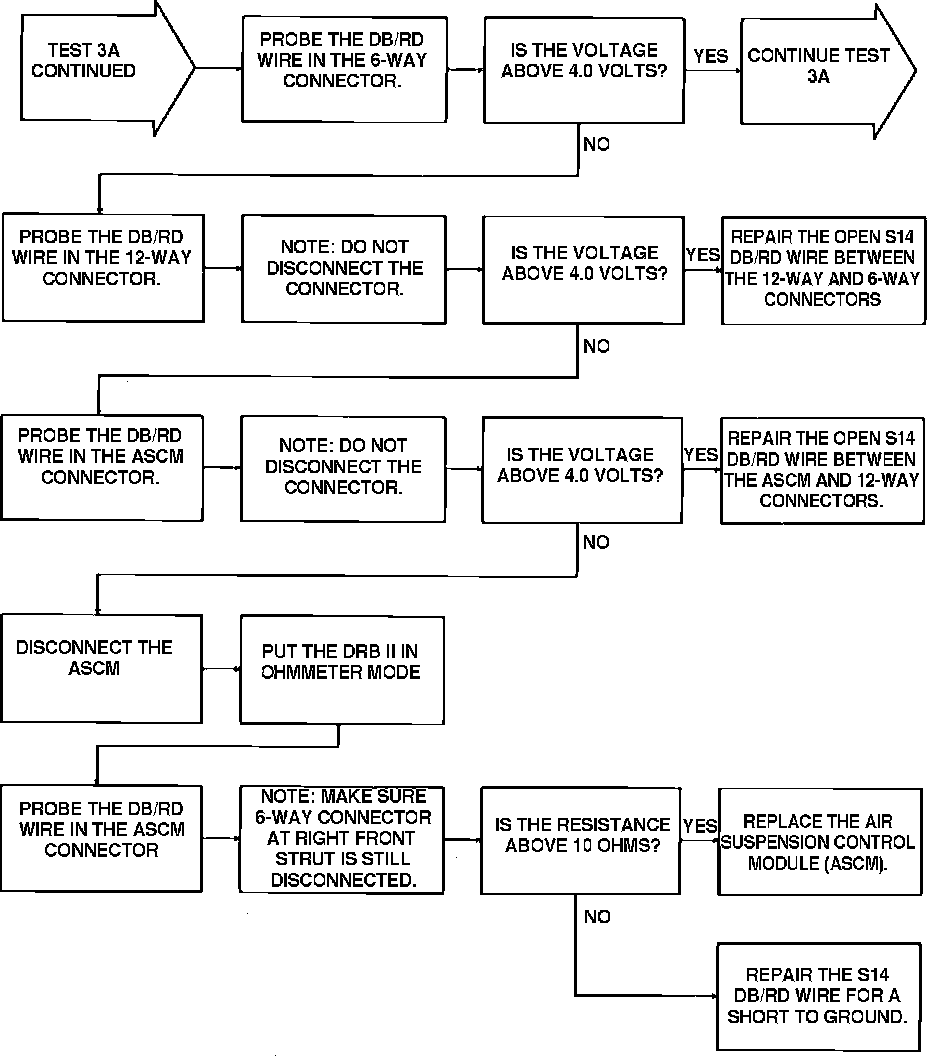

Fig. 30 Test 3A, Testing Right Front Height Sensor Circuit (Part 2 Of 4):

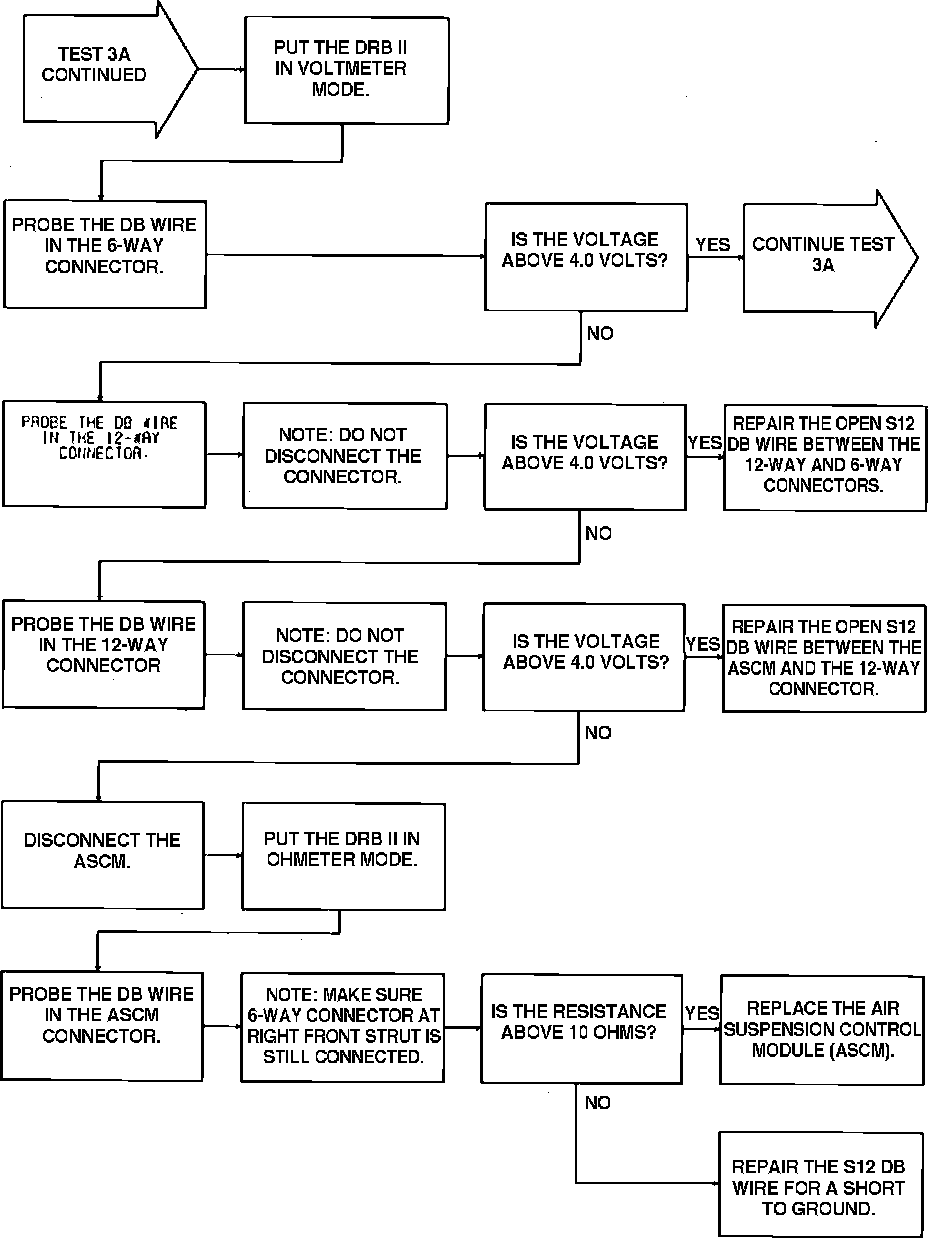

Fig. 30 Test 3A, Testing Right Front Height Sensor Circuit (Part 3 Of 4):

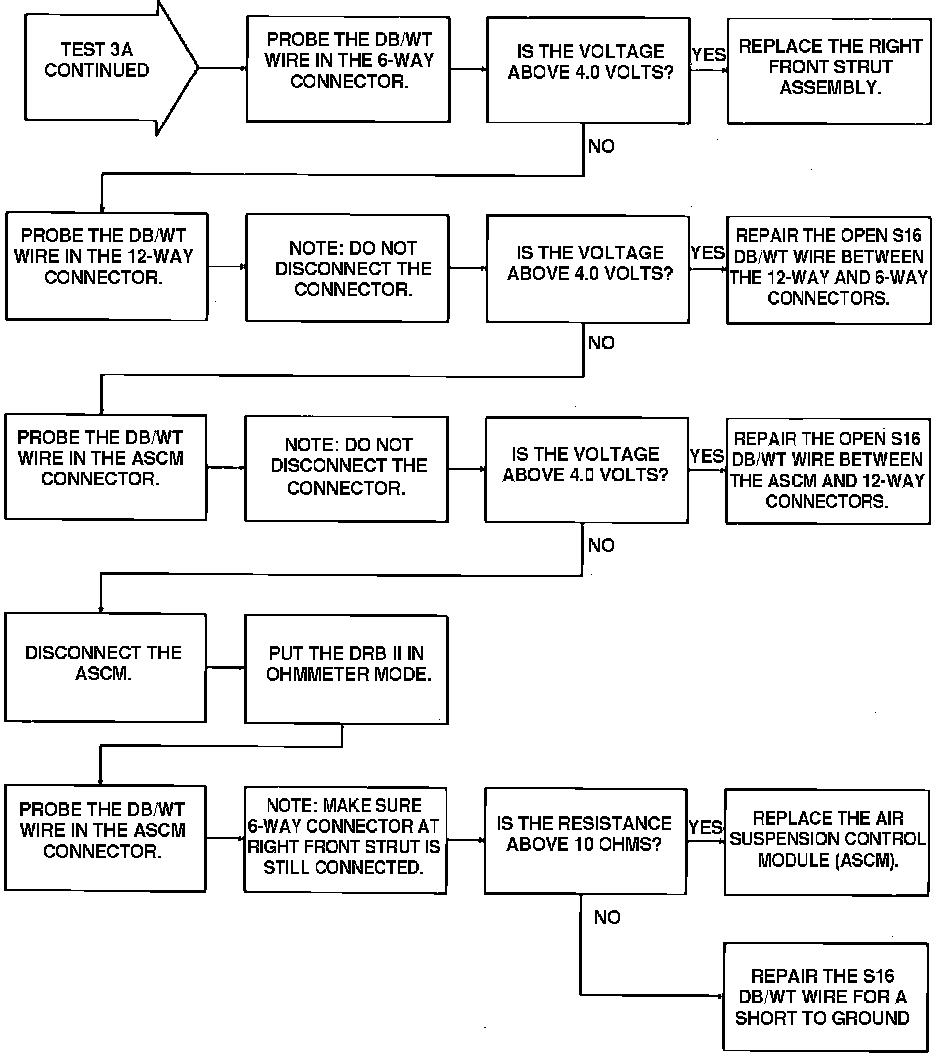

Fig. 30 Test 3A, Testing Right Front Height Sensor Circuit (Part 4 Of 4):
