2A Verification Test
2A Verification Test

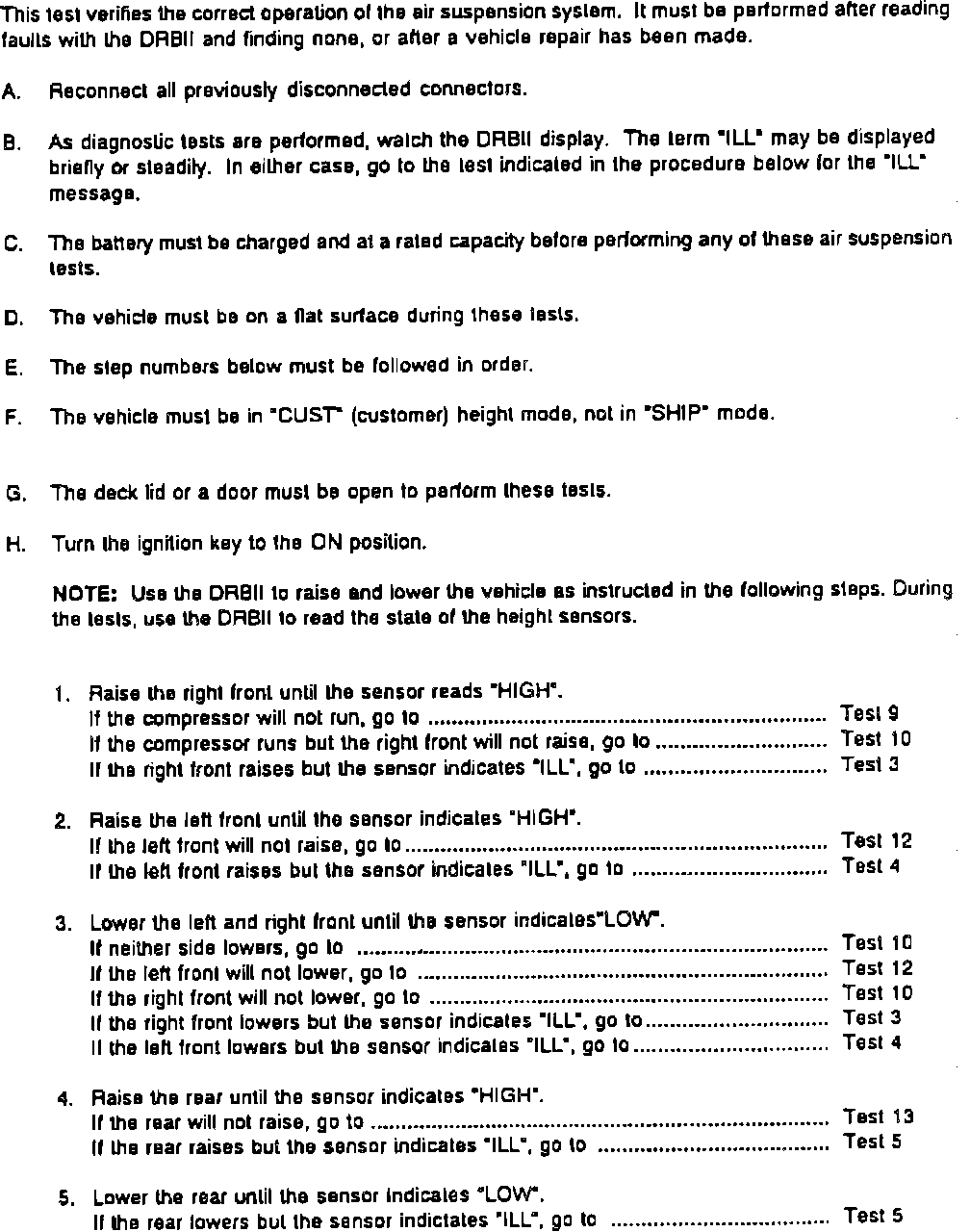

Fig. 29 Test 2A, Verification Test (Part 1 Of 2):

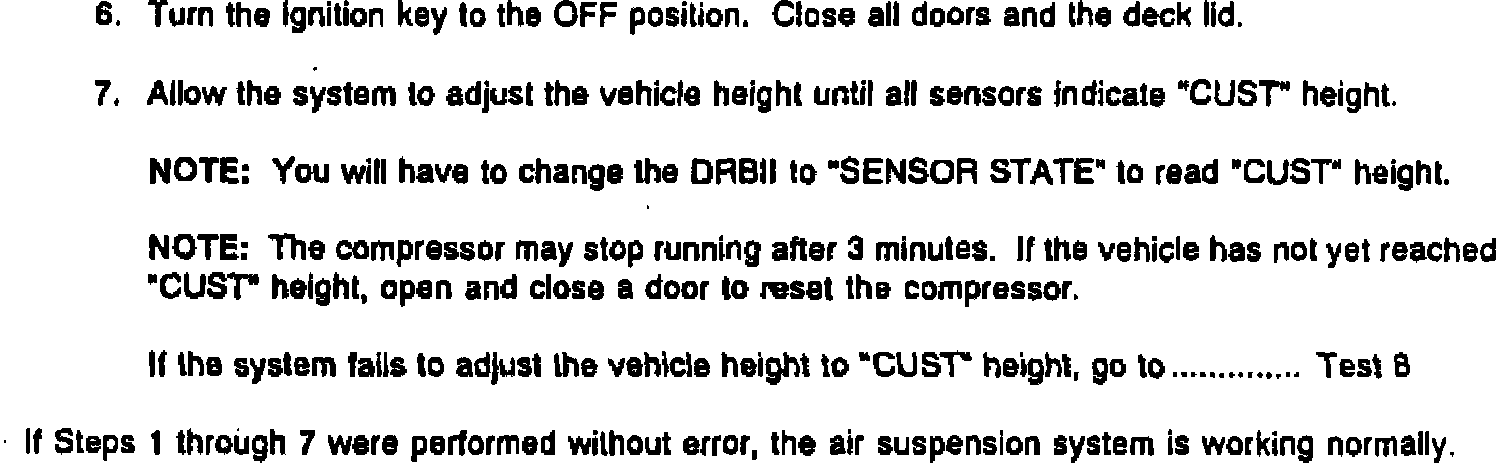

Fig. 13 Test 2A Verification Part 2:
