1A DRBII Hook-Up/Reading Fault Message
1A DRBII Hook-Up/Reading Fault Message

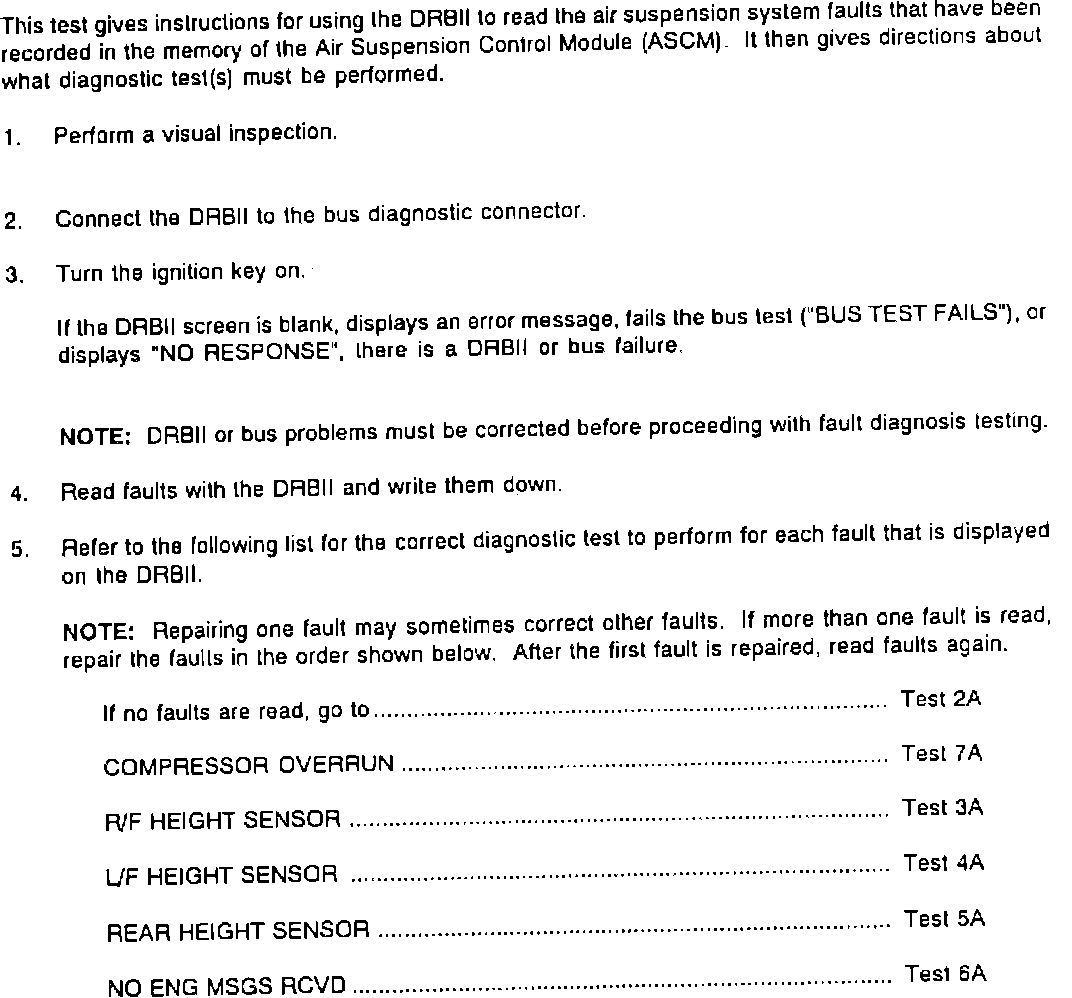

Fig. 28 Test 1A, DRB II Hook-up/reading Fault Messages:
