13A Rear Will Not Raise or Lower

Fig. 41 Test 13A, Rear Will Not Raise Or Lower (Part 1 Of 2):

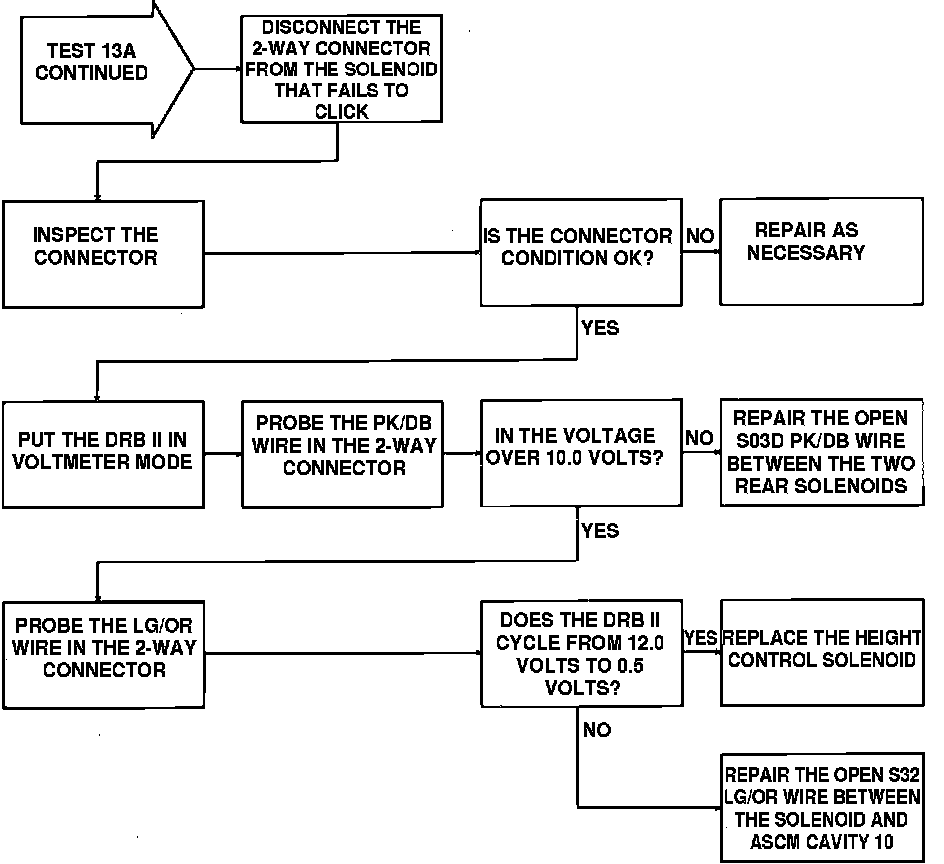

Fig. 41 Test 13A, Rear Will Not Raise Or Lower (Part 2 Of 2):
