Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> 11A Both Front Springs Will Not Lower

11A Both Front Springs Will Not Lower

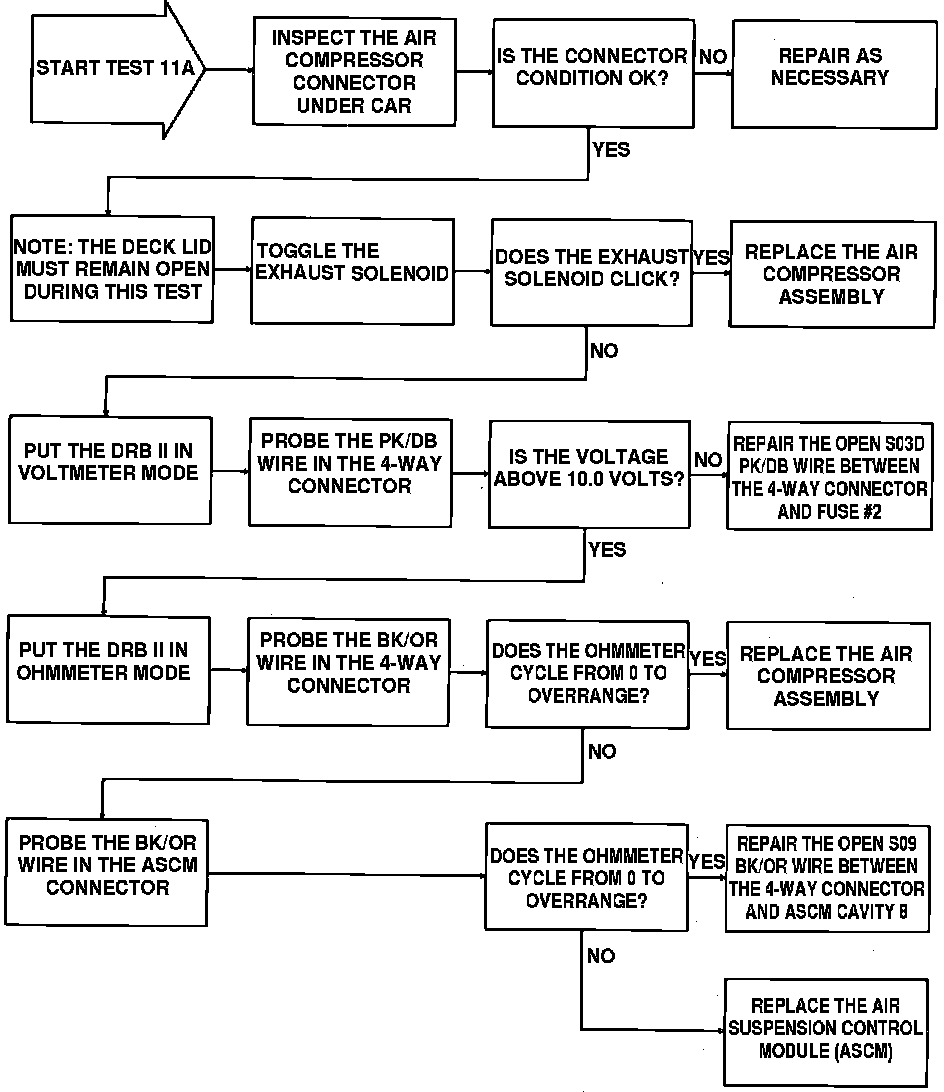

Fig. 39 Test 11A, Both Front Springs Will Not Lower:
