Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Suspension Control >> 10A Right Front Will Not Raise or Lower

10A Right Front Will Not Raise or Lower

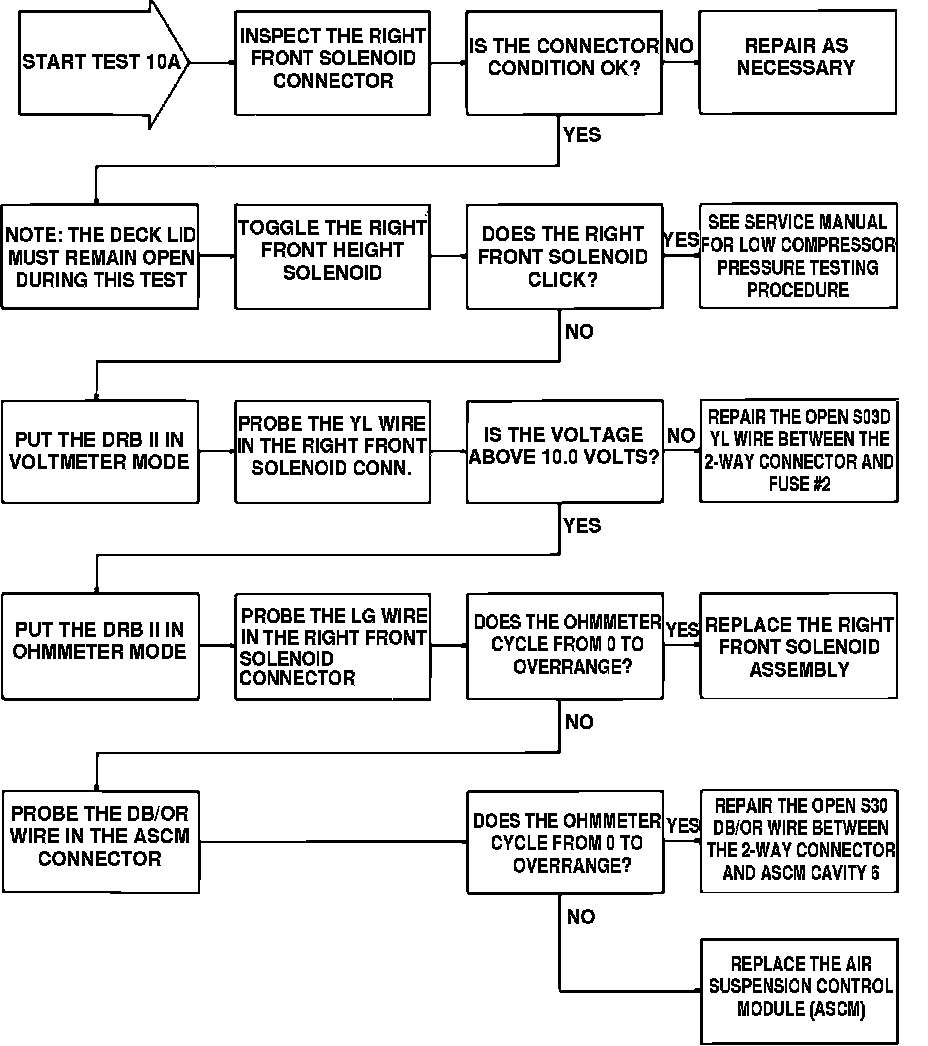

Fig. 38 Test 10A, Right Front Will Not Raise Or Lower:
