Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Speed Control (SP) Tests >> SP-16A Repairing Fault "Speed Control Power Relay Circuit"

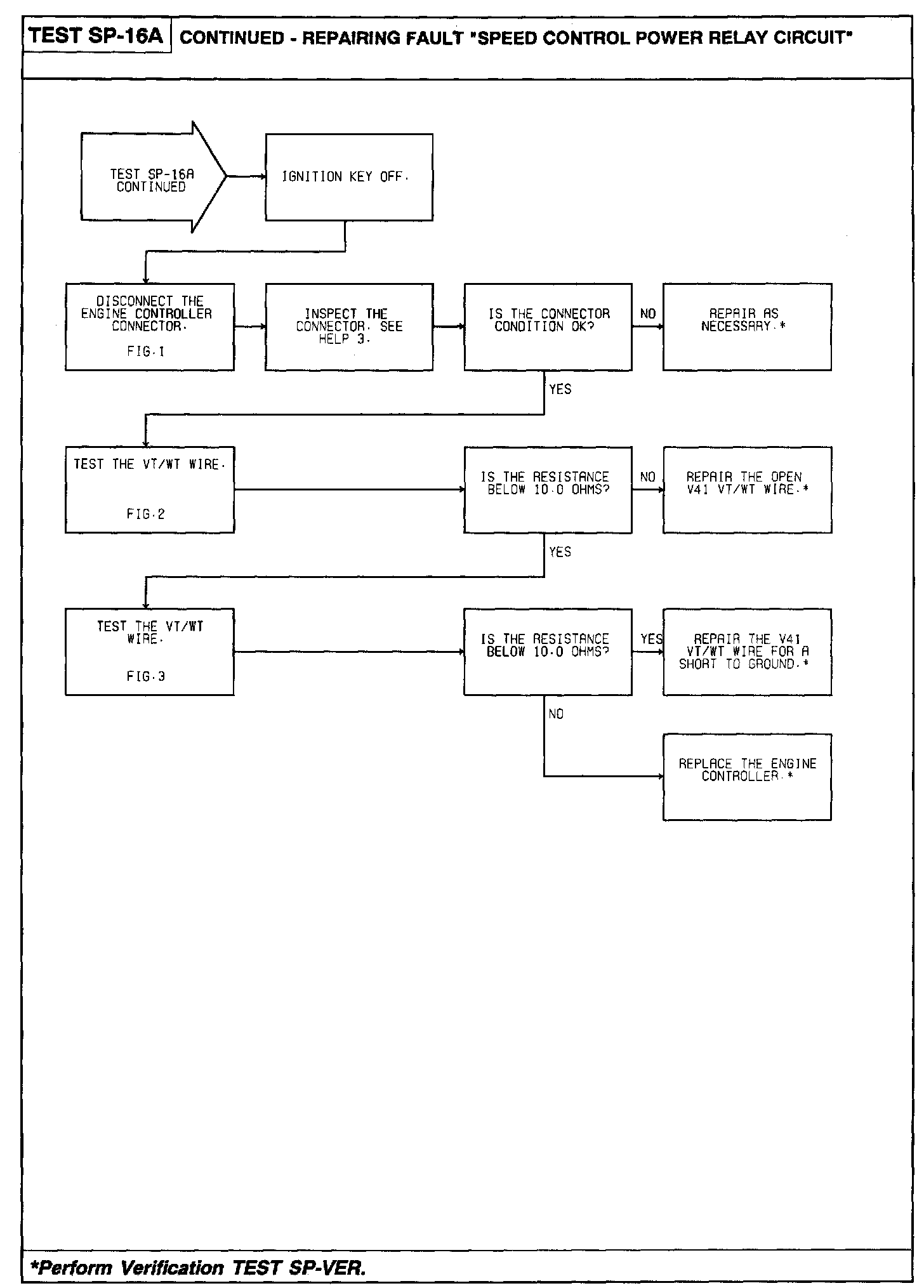

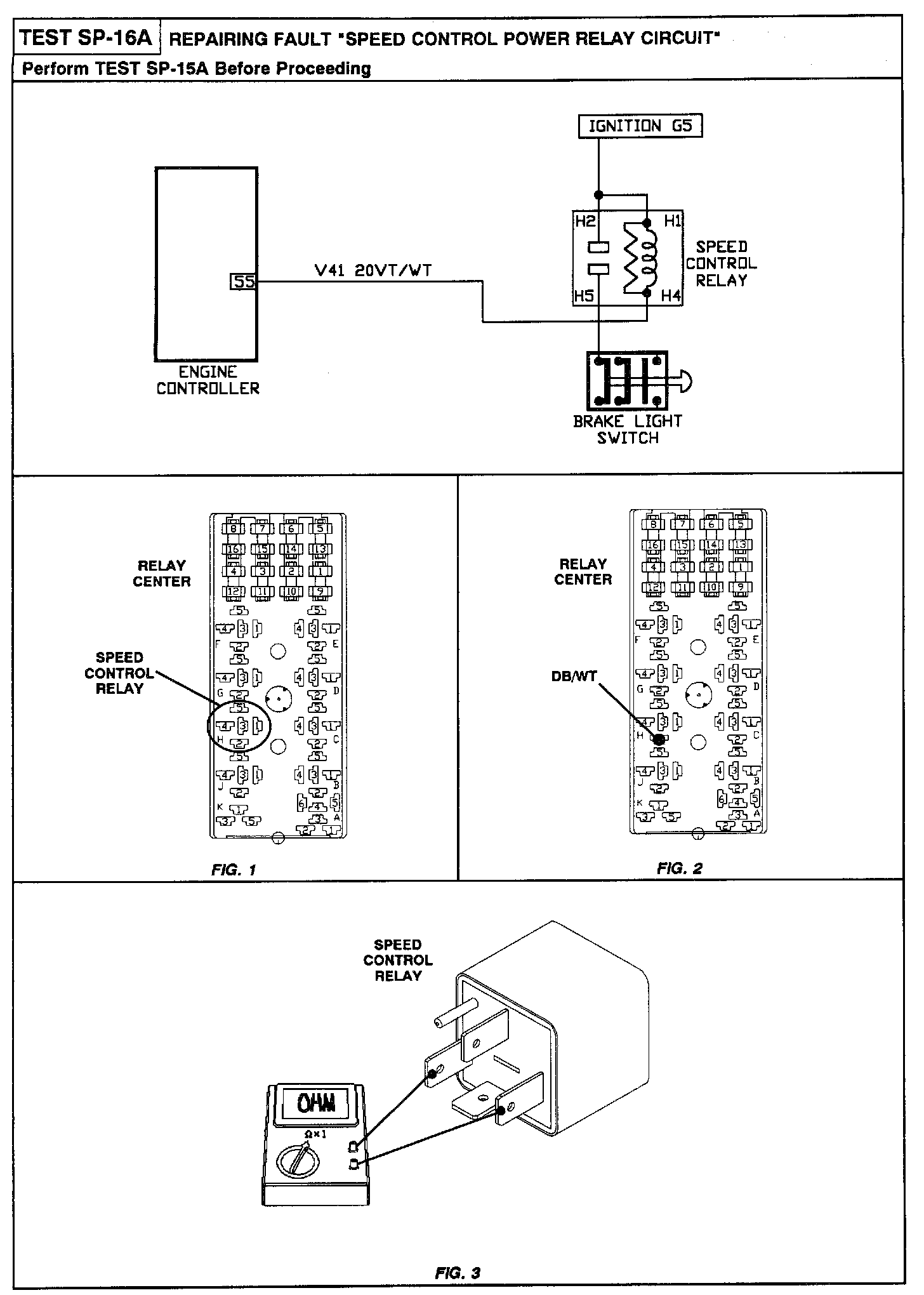

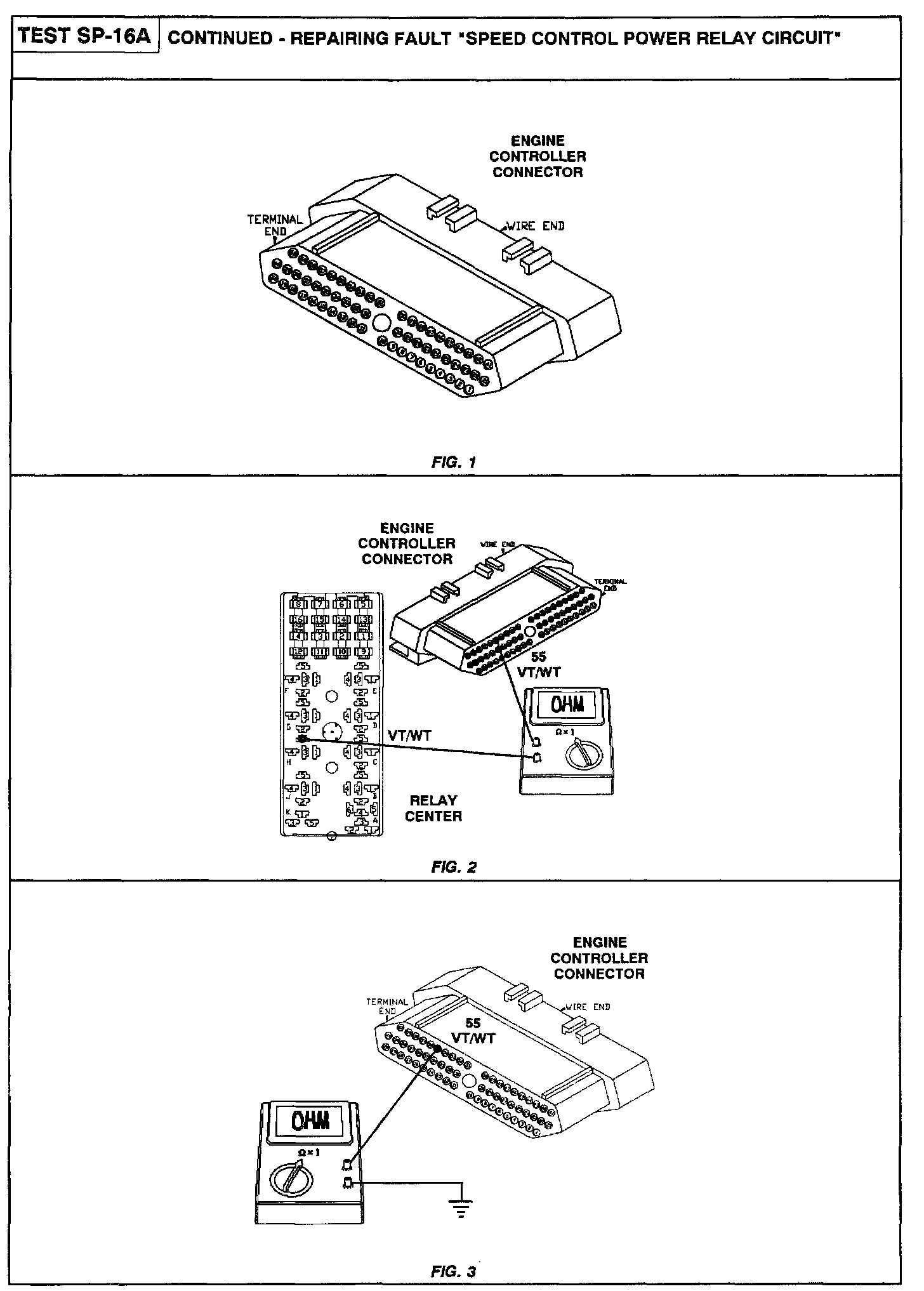

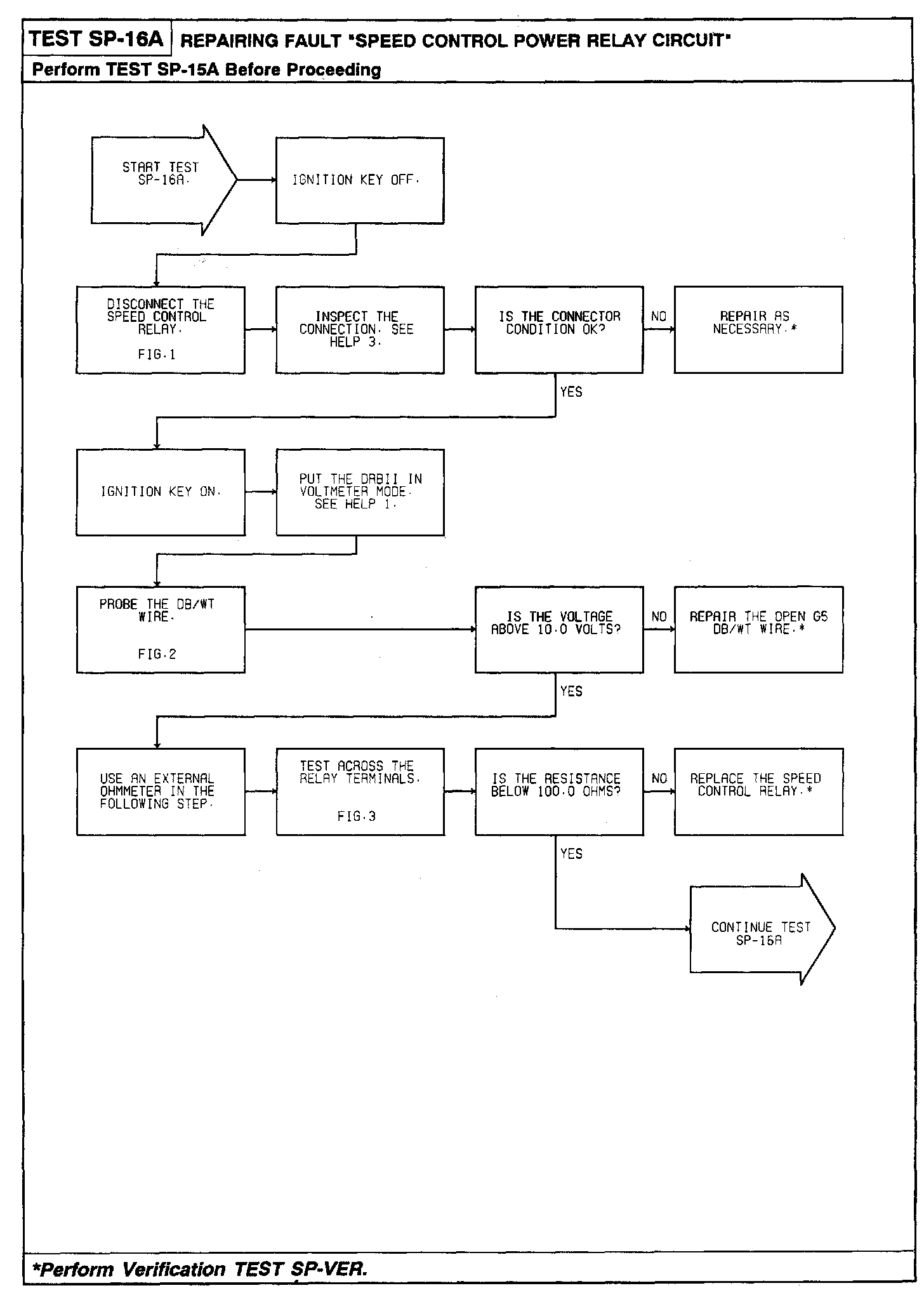

SP-16A Repairing Fault "Speed Control Power Relay Circuit"
