Fault Code 10

1. Disconnect the 21-way connector at the control module.
2. Check for continuity between terminal 17 and ground.
- If there is continuity, repair the wiring and retest.
- If there is no continuity, go to step 3.

Fault Code 10:

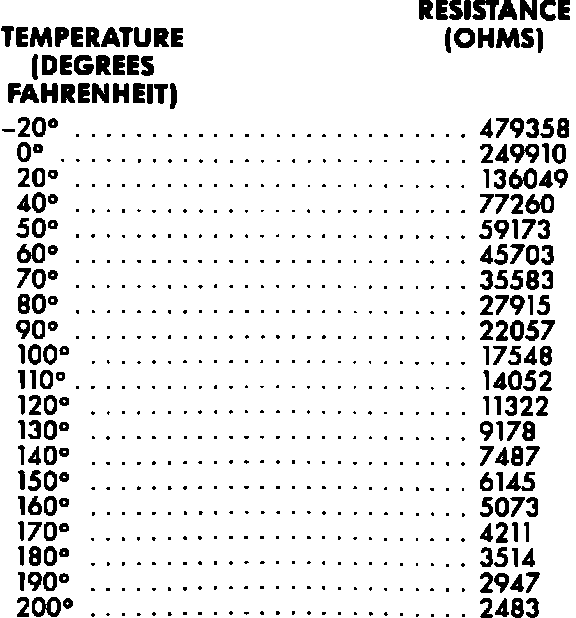

3. Measure the resistance between terminals 17 and 7. Compare the measured value to the chart.
- If the measured value is incorrect, replace the water temperature sensor.
