Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-6A "Oxygen Sensor Signal Stays at Center"

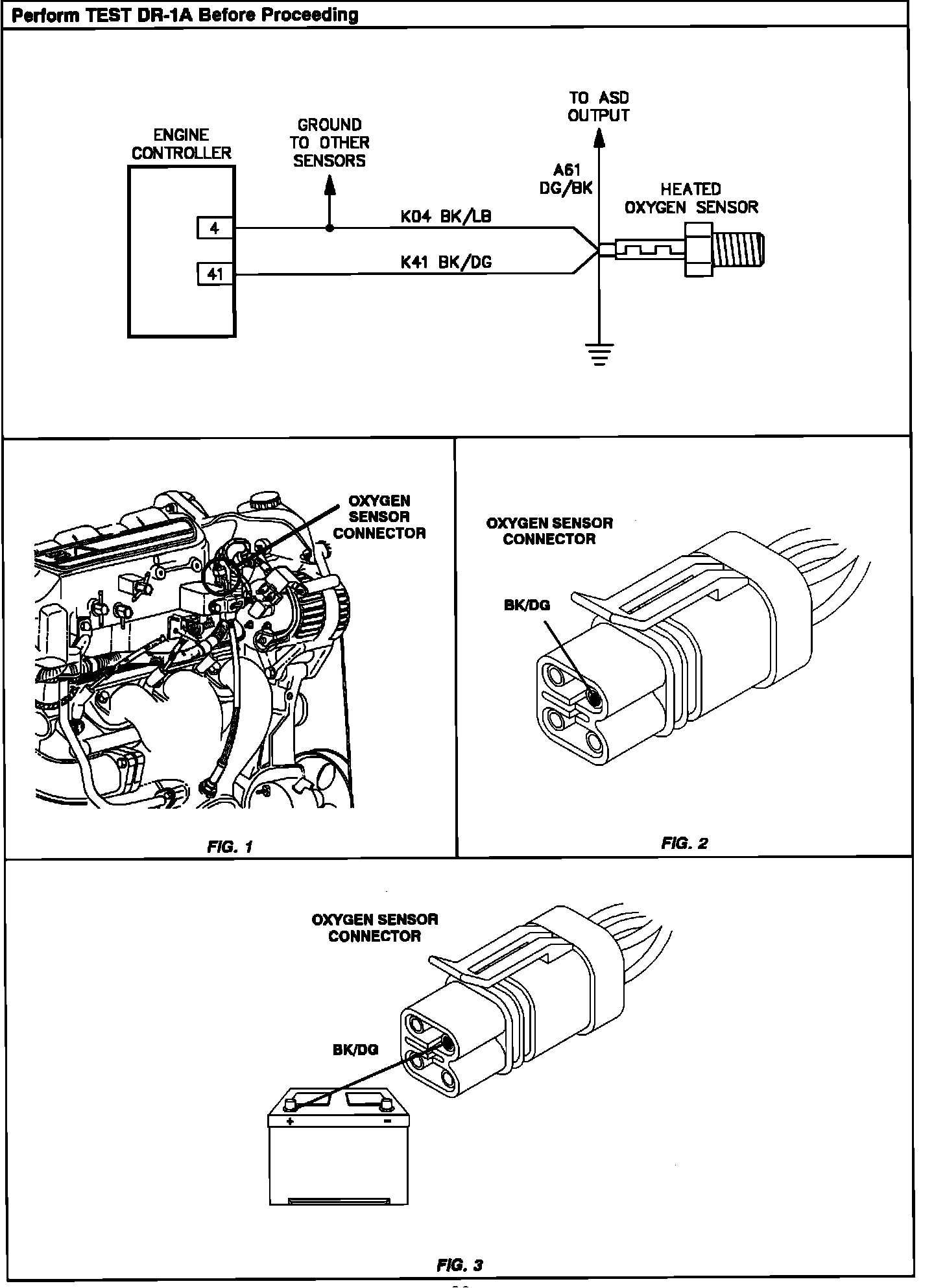

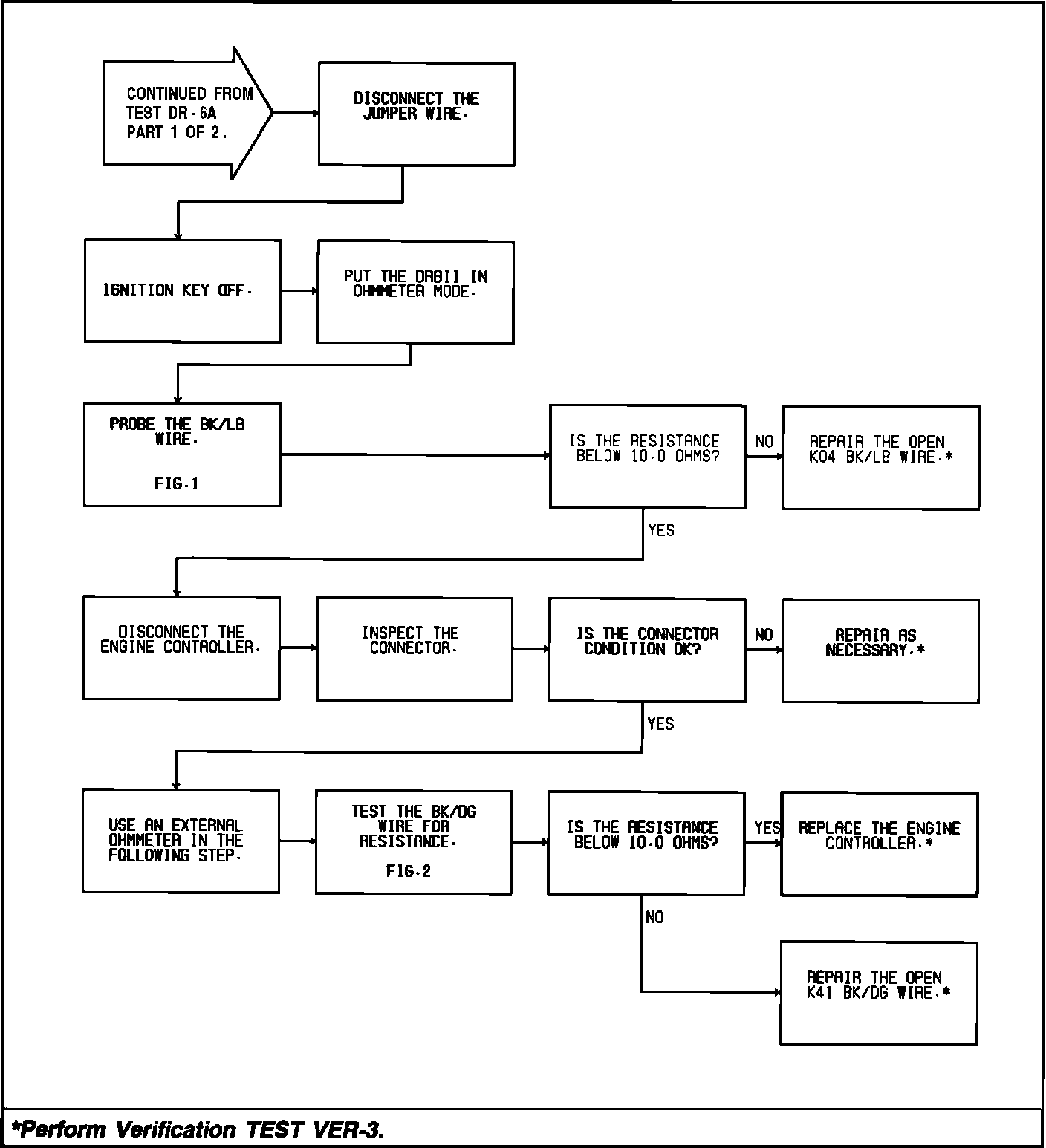

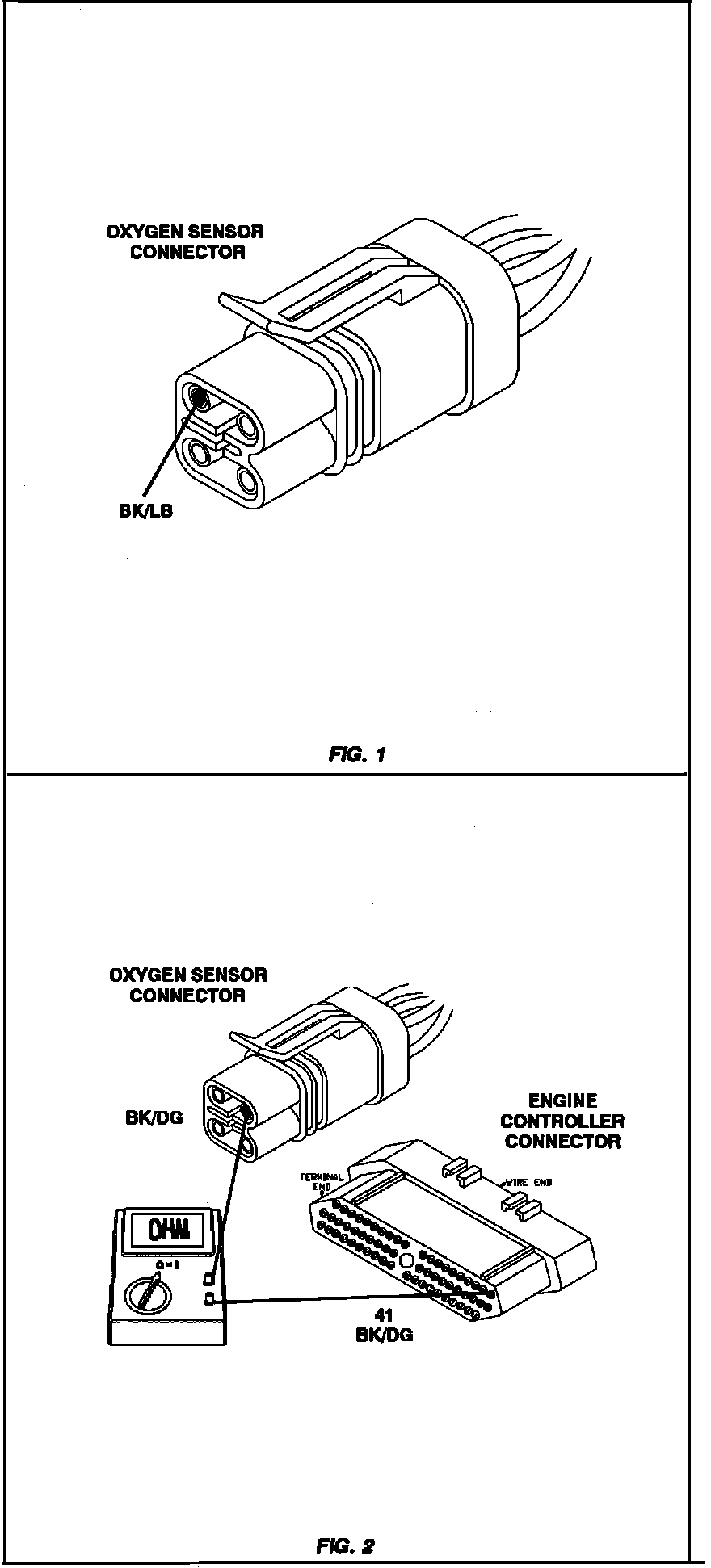

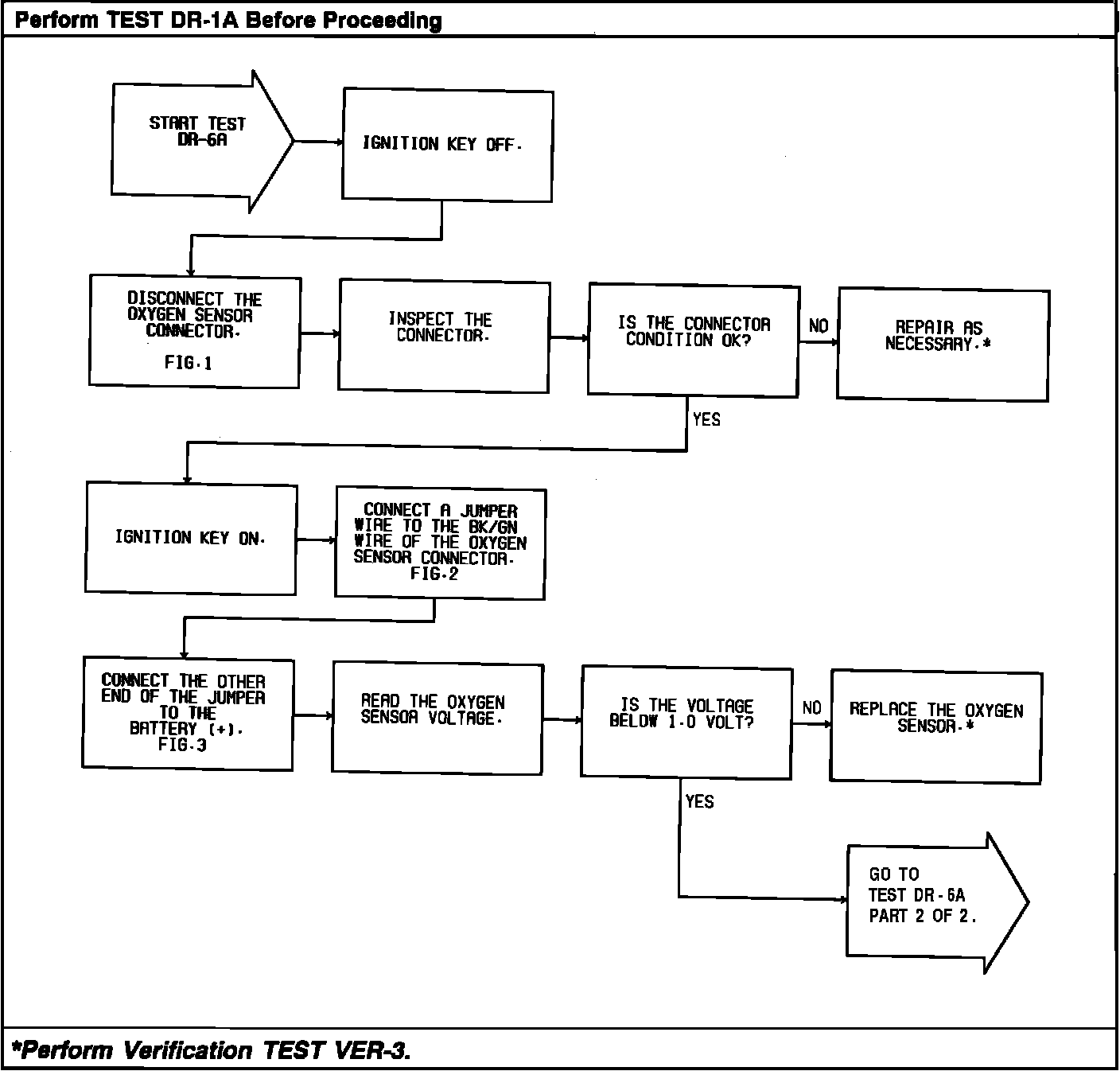

DR-6A "Oxygen Sensor Signal Stays at Center"

Test DR-6A - "Oxygen Sensor Signal Stays At Center":



Test DR-6A - "Oxygen Sensor Signal Stays At Center":



Test DR-6A - "Oxygen Sensor Signal Stays At Center":



Test DR-6A - "Oxygen Sensor Signal Stays At Center":
