Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-5A Repairing "No Vehicle Speed Signal" Fault

DR-5A Repairing "No Vehicle Speed Signal" Fault

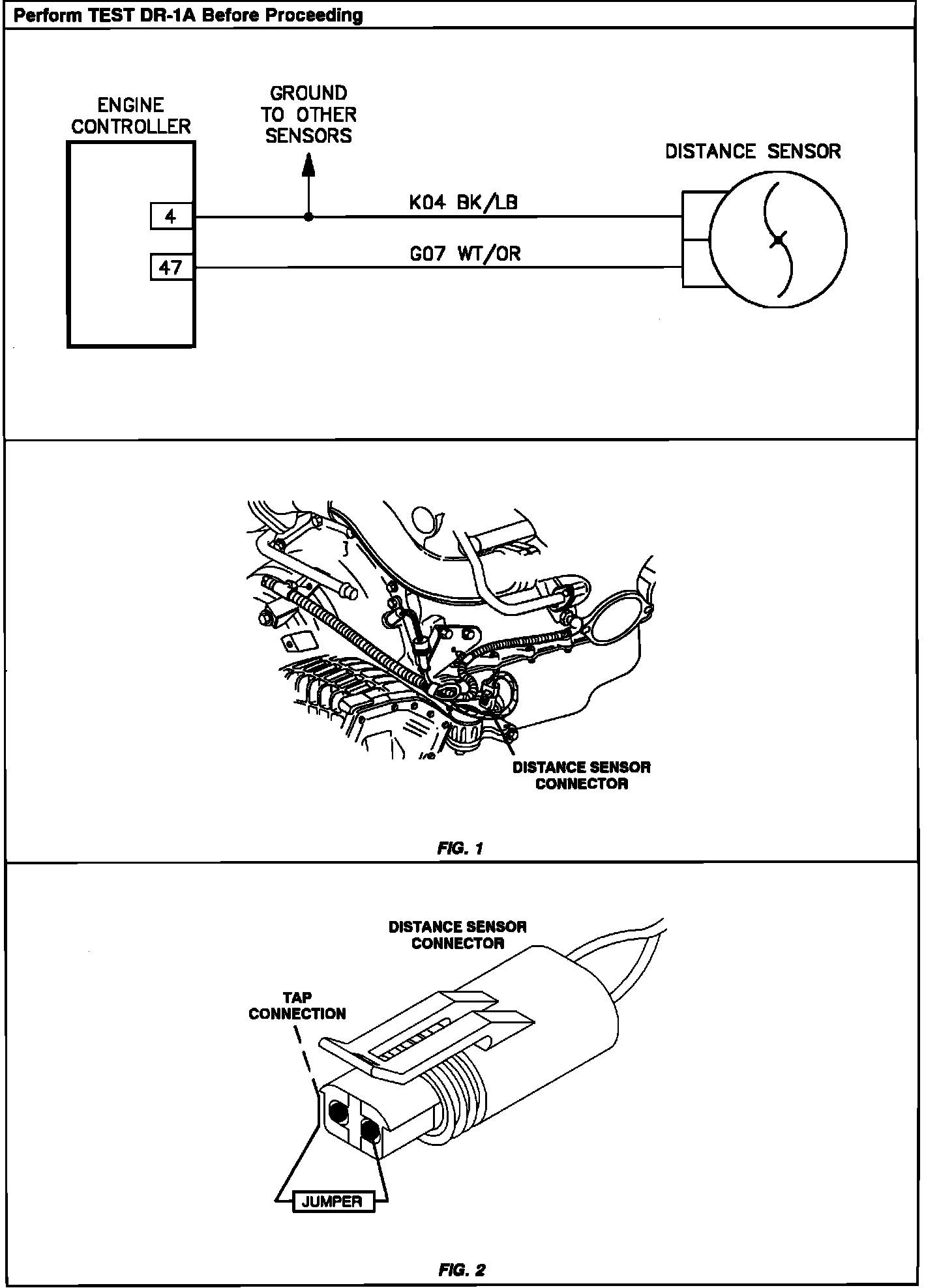

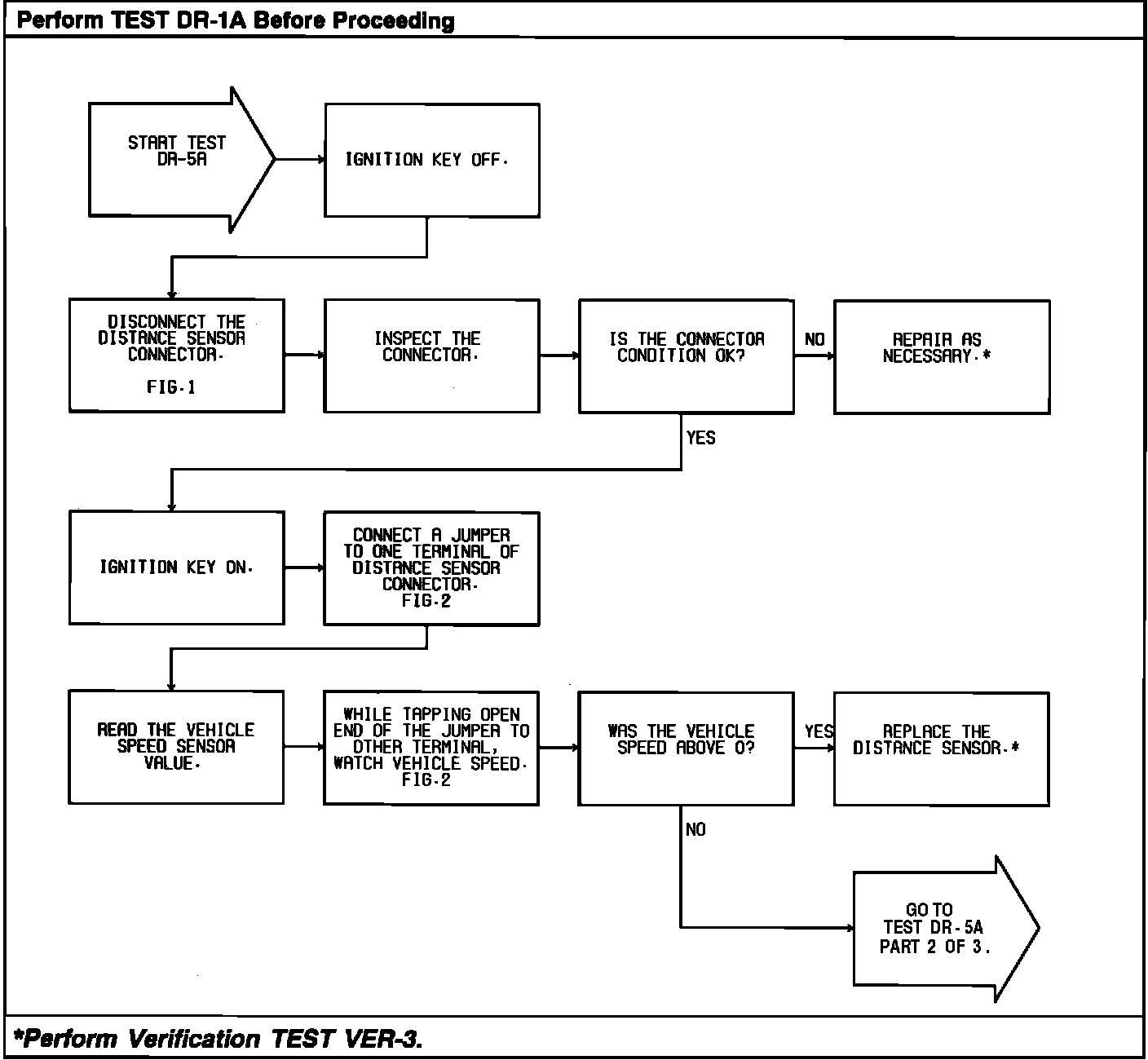

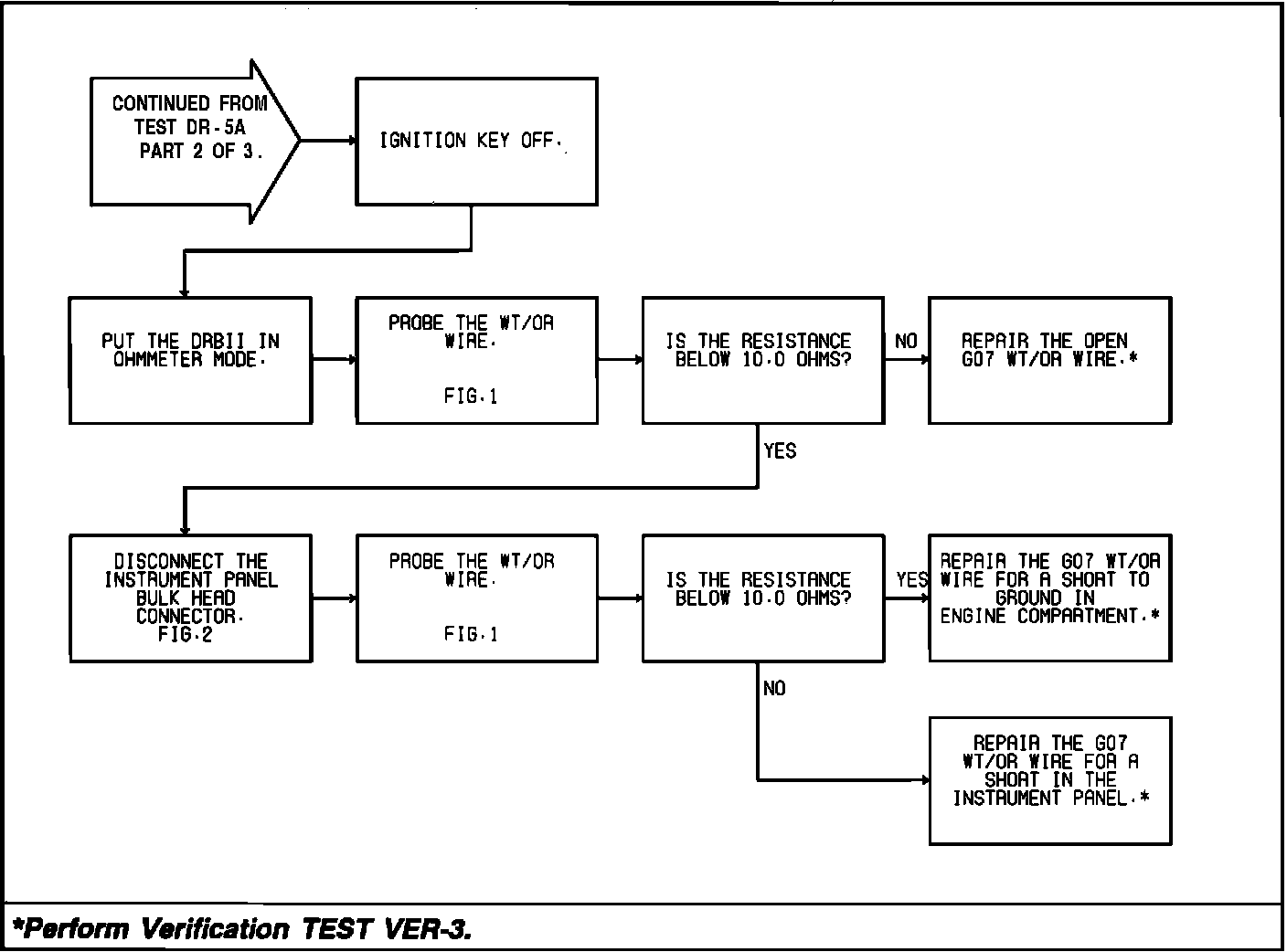

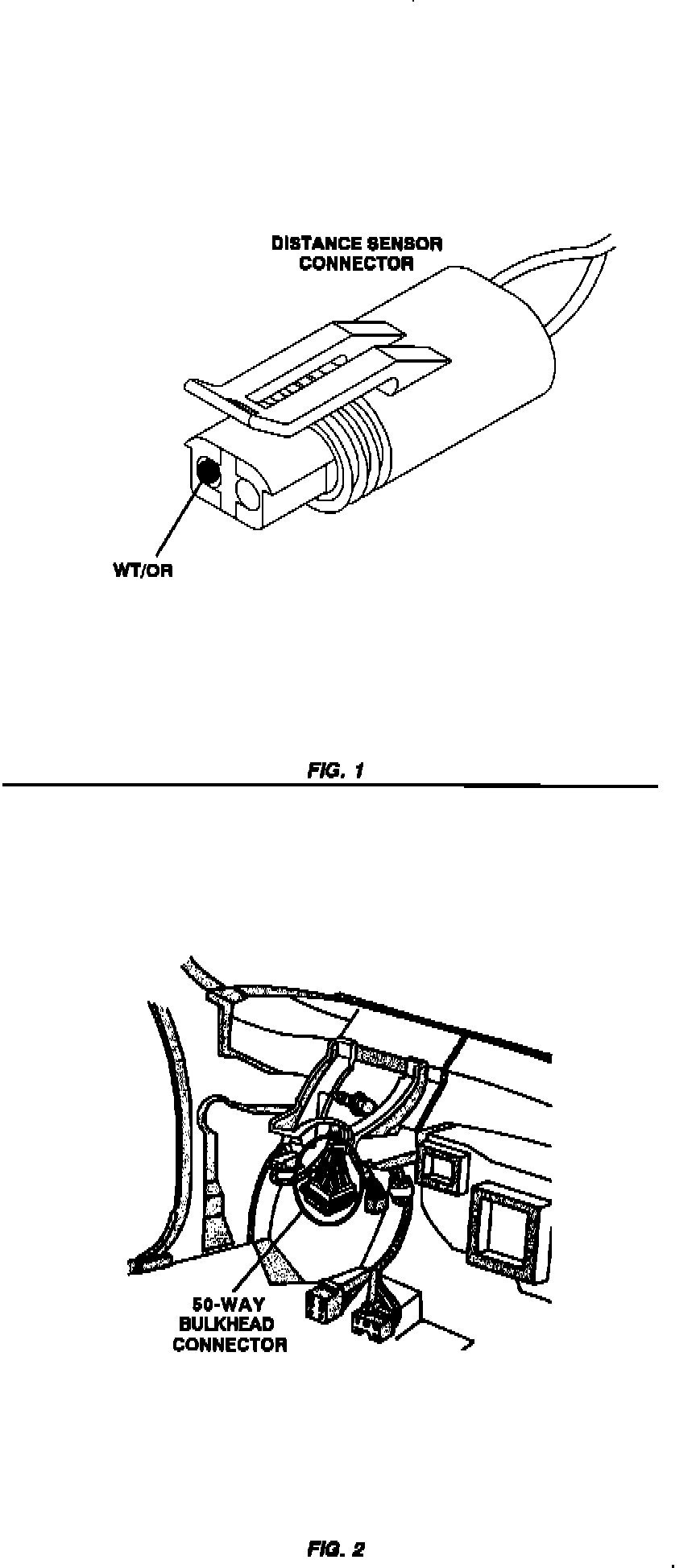

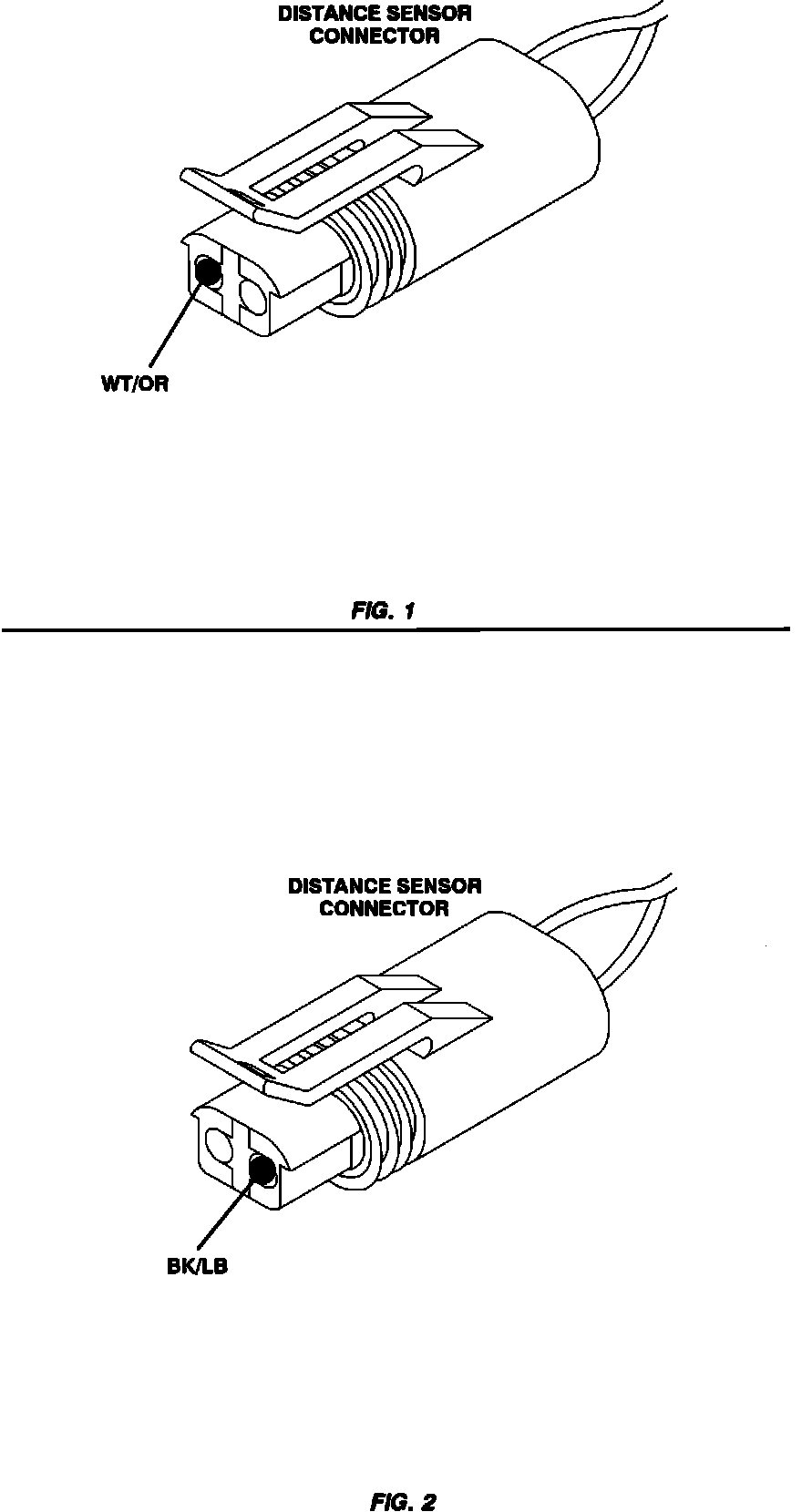

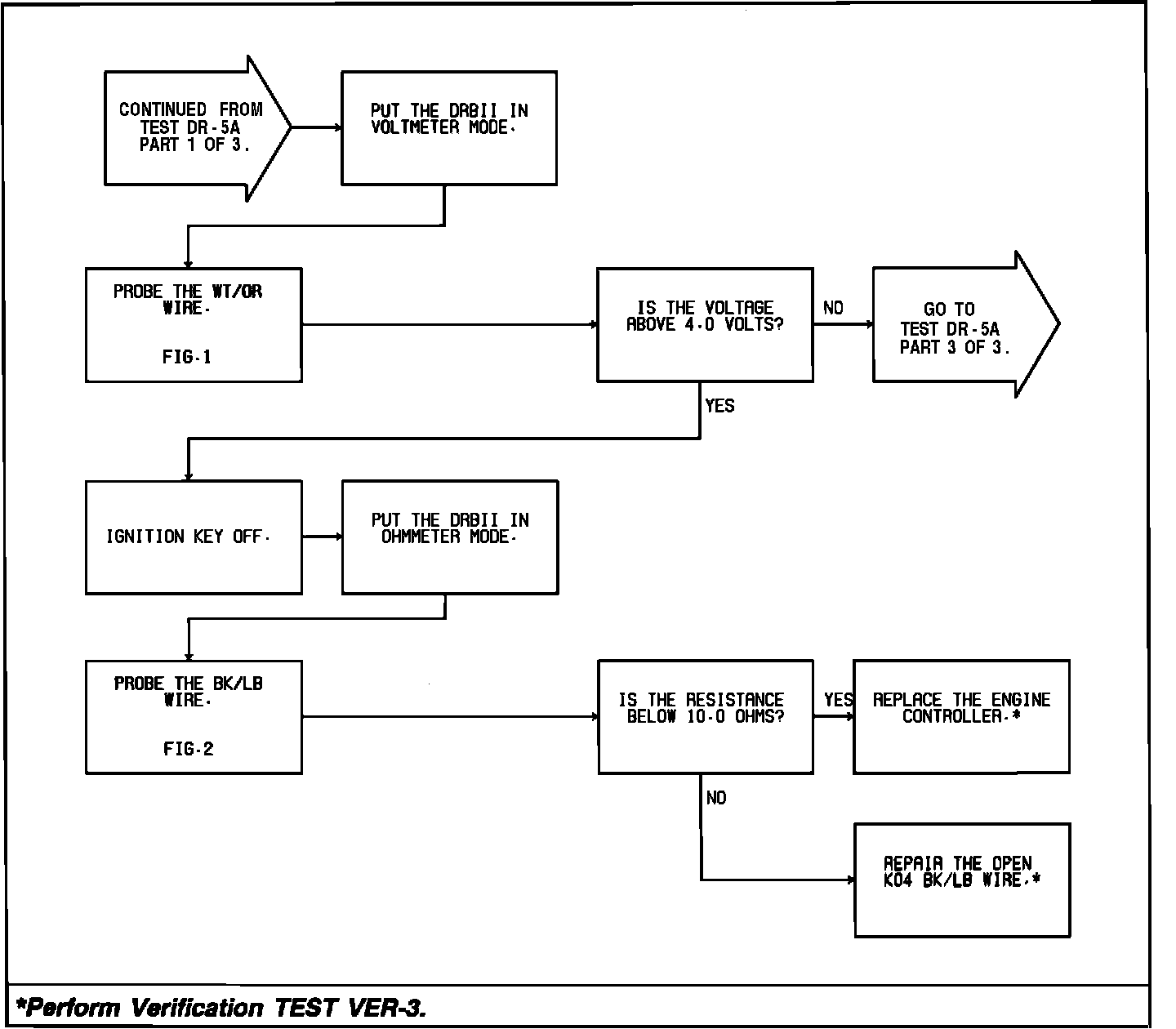

Test DR-5A - "No Vehicle Speed Signal":



Test DR-5A - "No Vehicle Speed Signal":



Test DR-5A - "No Vehicle Speed Signal":



Test DR-5A - "No Vehicle Speed Signal":



Test DR-5A - "No Vehicle Speed Signal":



Test DR-5A - "No Vehicle Speed Signal":
