Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-48A Intermittent Test For AIS Motor Circuits

DR-48A Intermittent Test For AIS Motor Circuits

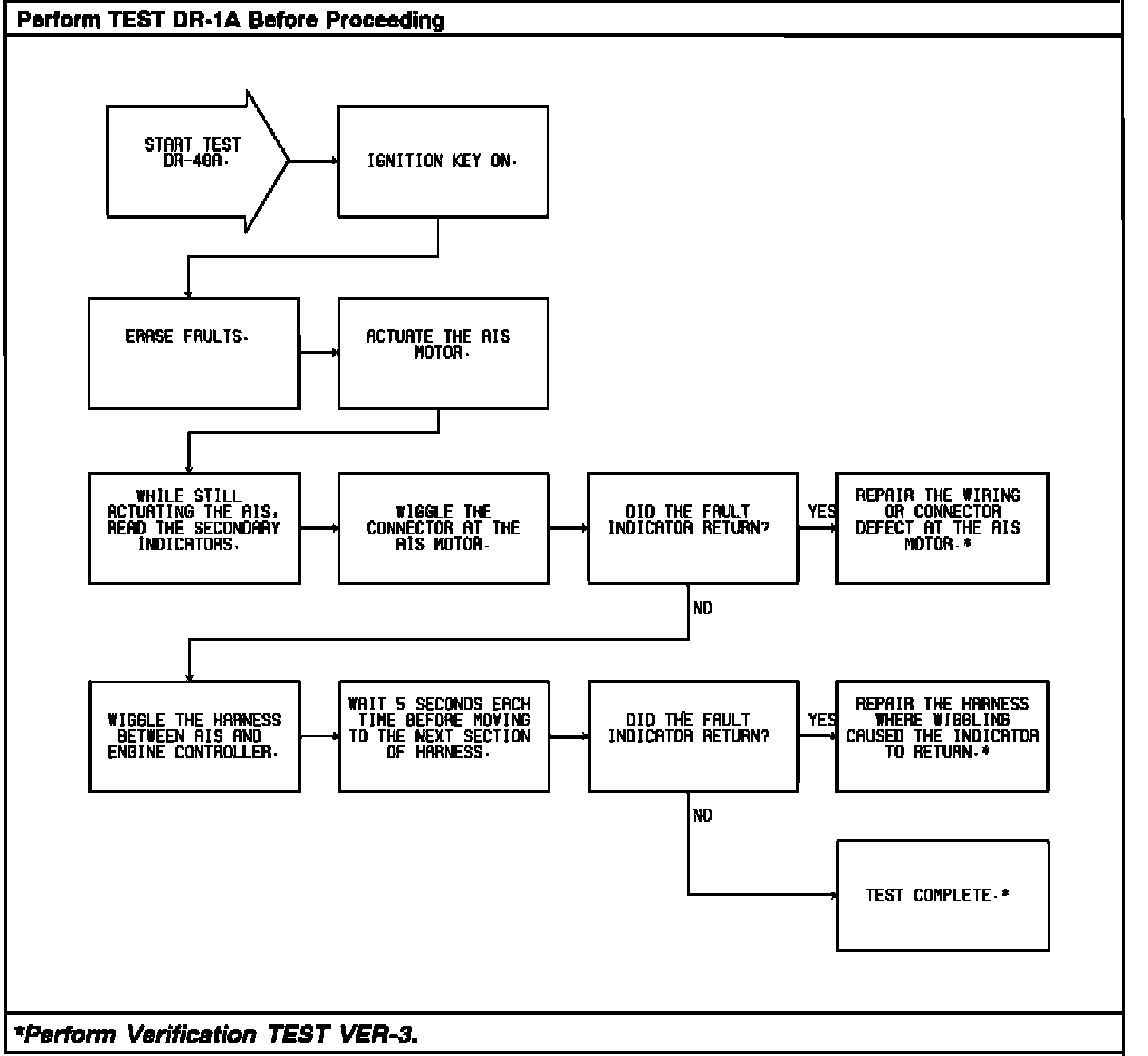

Test DR-48A - Intermittent Test For AIS Motor Circuits:
