Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-42A Checking Engine Vacuum

DR-42A Checking Engine Vacuum

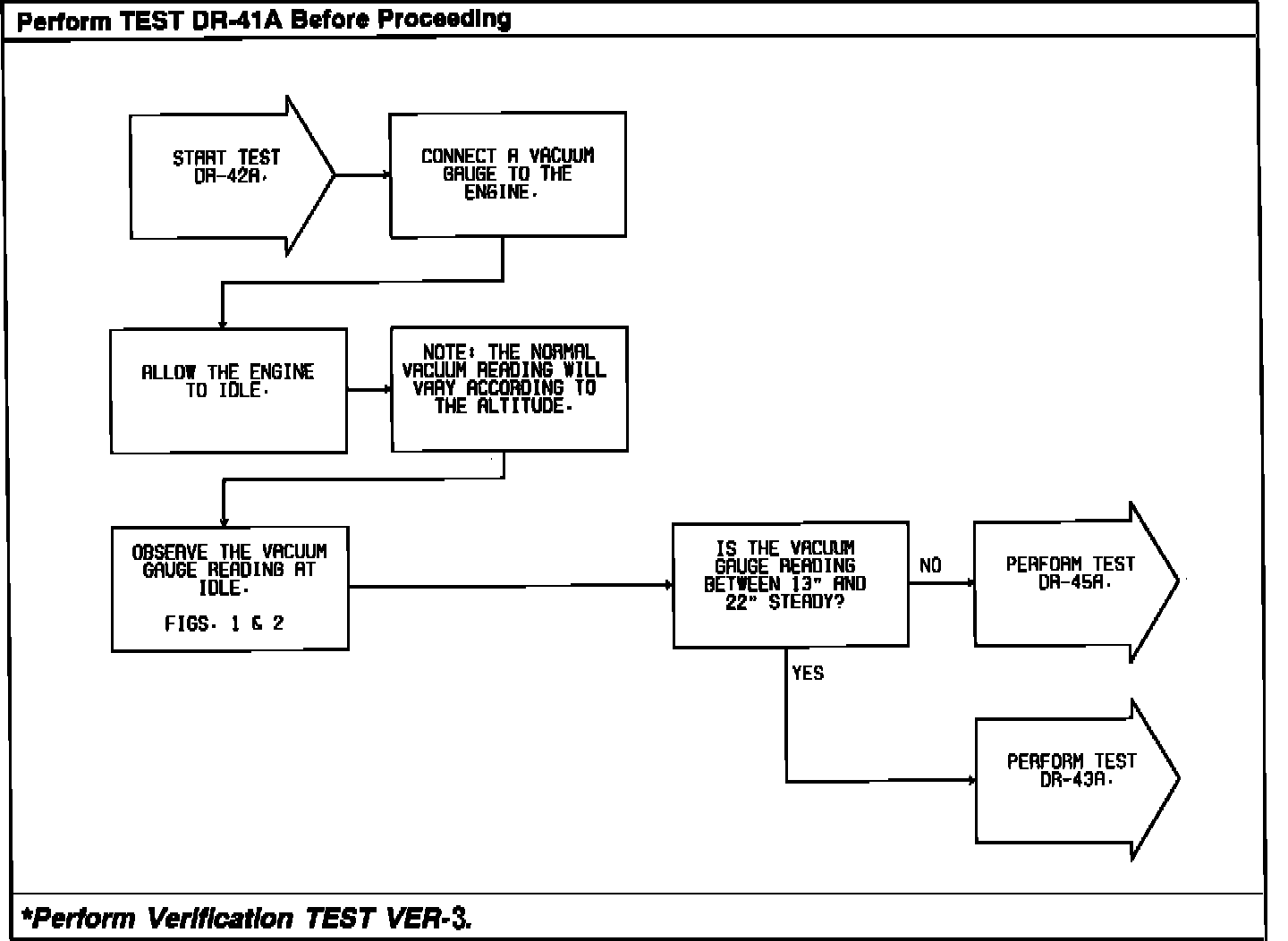

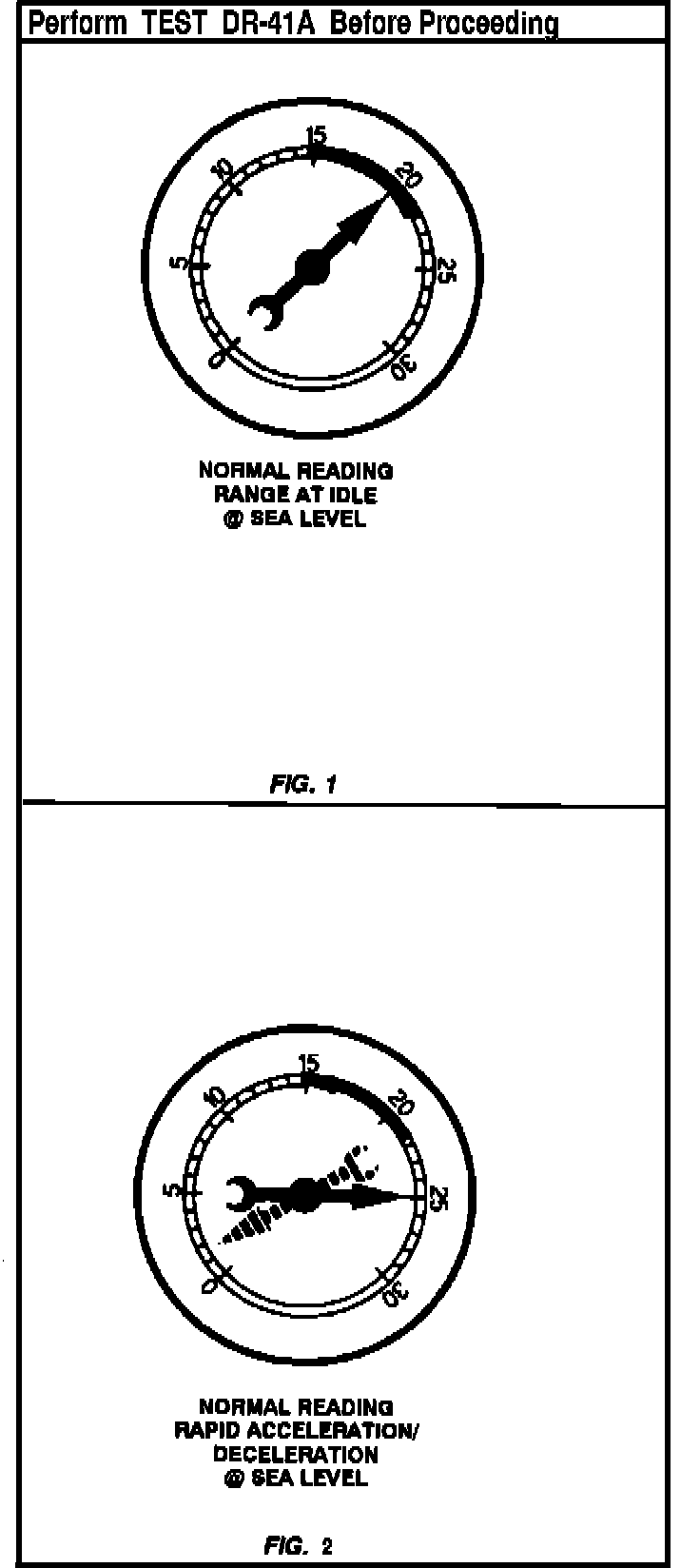

Test DR-42A - Checking Engine Vacuum:



Test DR-42A - Checking Engine Vacuum:
