Chrysler
>>
1991
>>
New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-41A Checking EGR Operation (Federal)
>>
Part 5 of 6
Part 5 of 6
***Updated by TSB# 183590, Nov. 1990

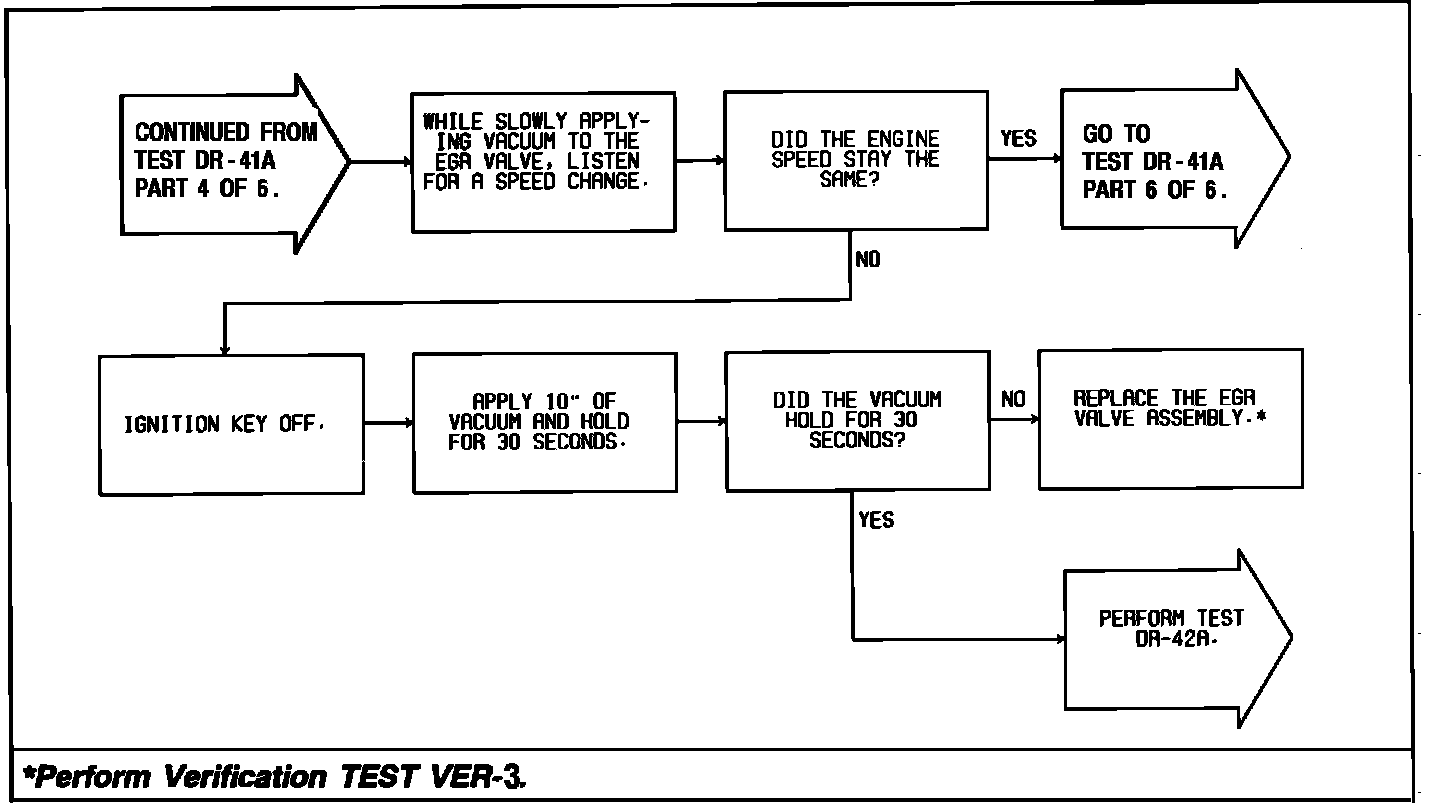

Test DR-41A - Checking EGR Operation (Federal Emissions):
