DR-41A Checking EGR Operation (Federal)
>>
Part 3 of 6
Part 3 of 6

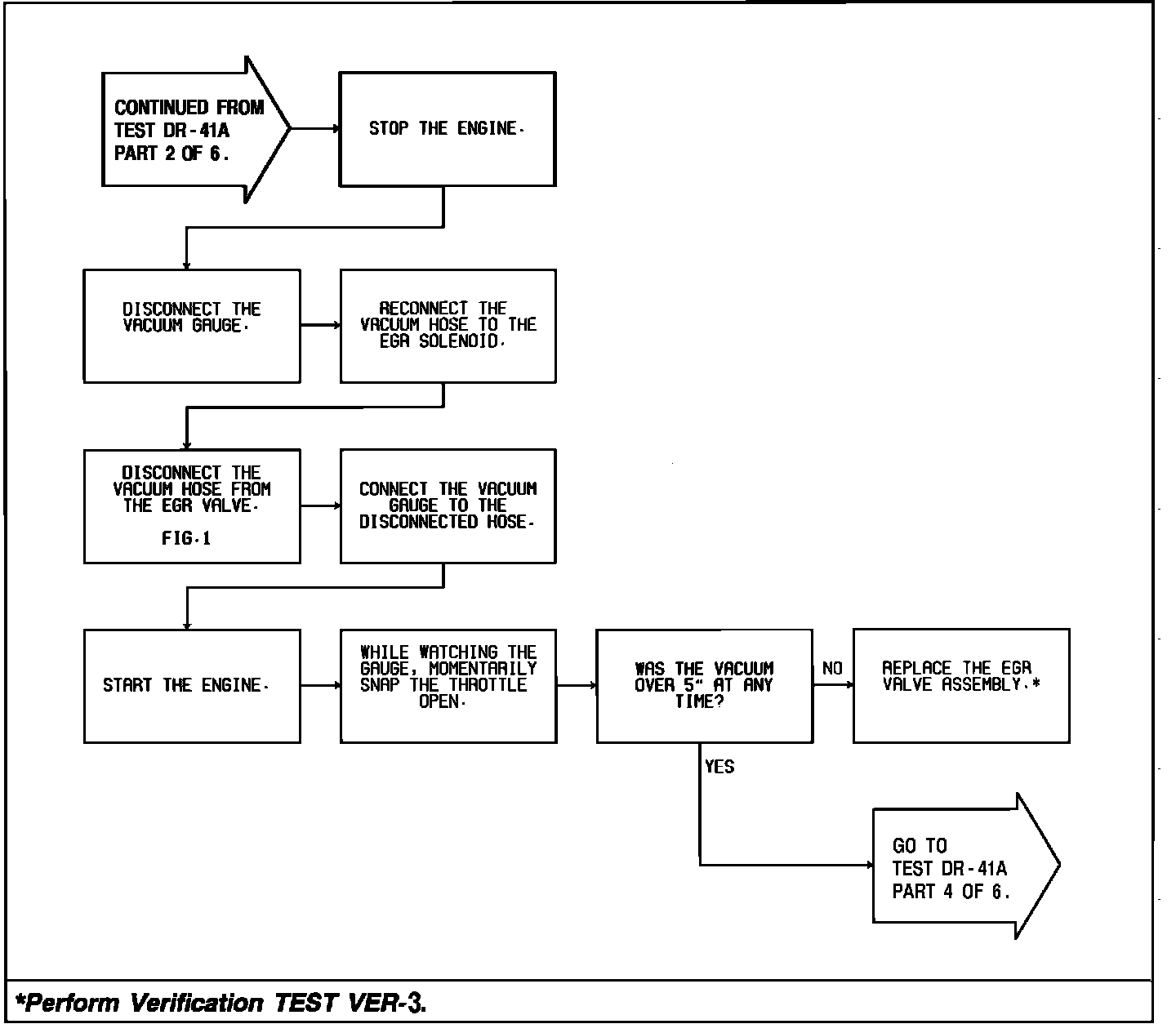

Test DR-41A - Checking EGR Operation (Federal Emissions):
Test DR-41A - Checking EGR Operation (Federal Emissions):
