Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-40A Checking Engine Controller Grounds & Power Circuits >> Part 1 of 2

Part 1 of 2

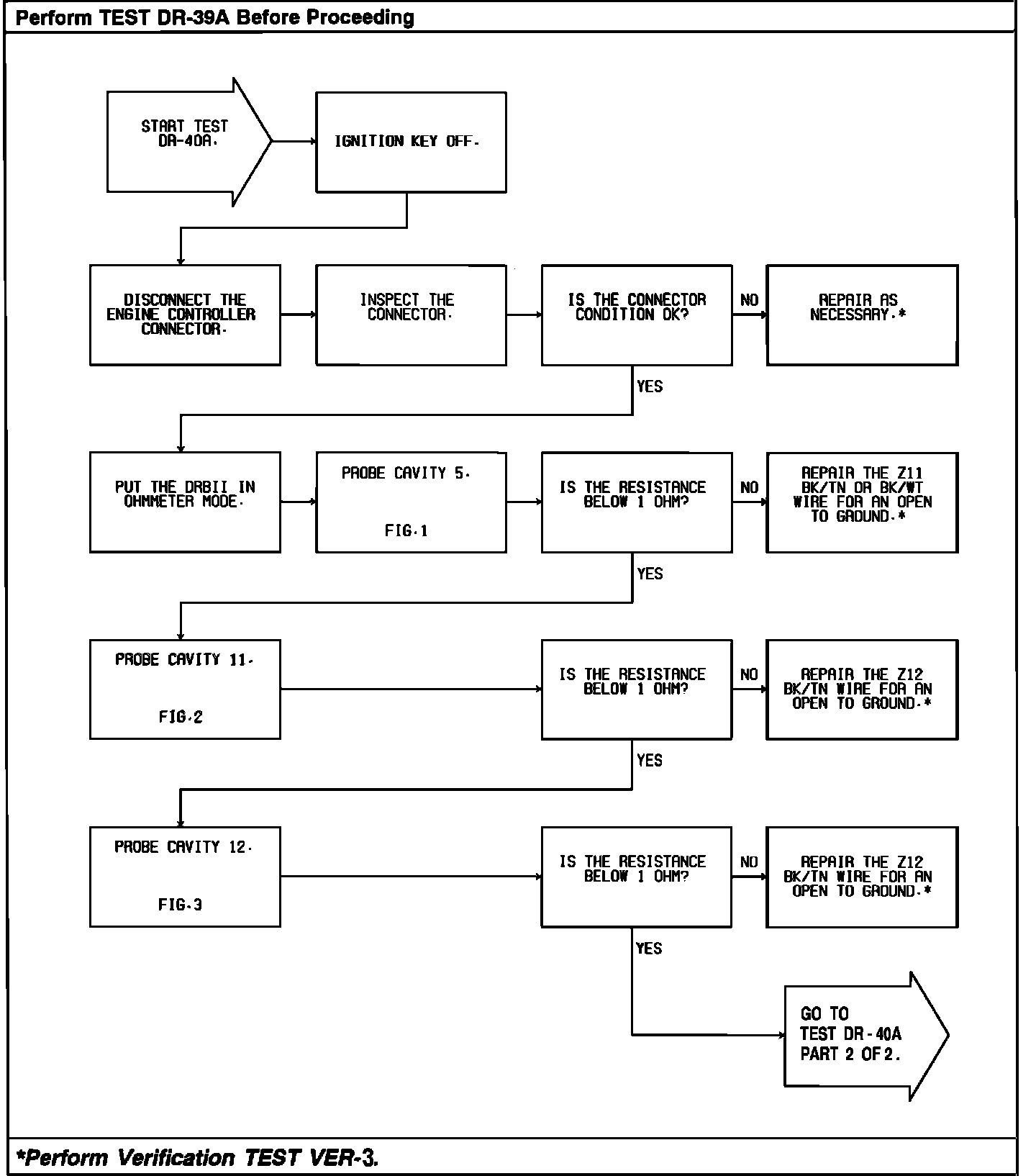

Test DR-40A - Checking Engine Controller Grounds And Power Circuits:

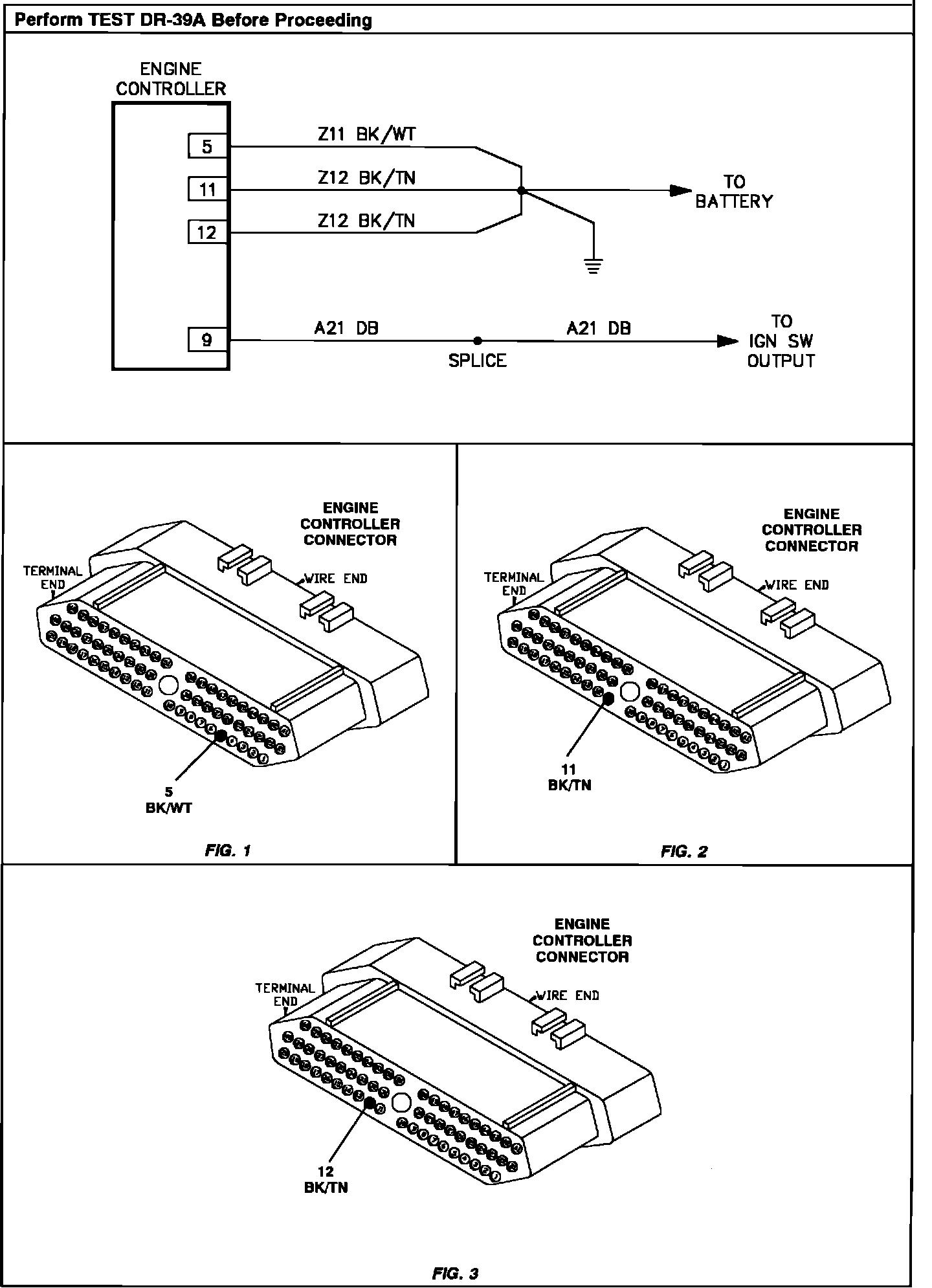

Test DR-40A - Checking Engine Controller Grounds And Power Circuits:
