DR-38E Checking Idle Speed Motor Operation
DR-38E Checking Idle Speed Motor Operation

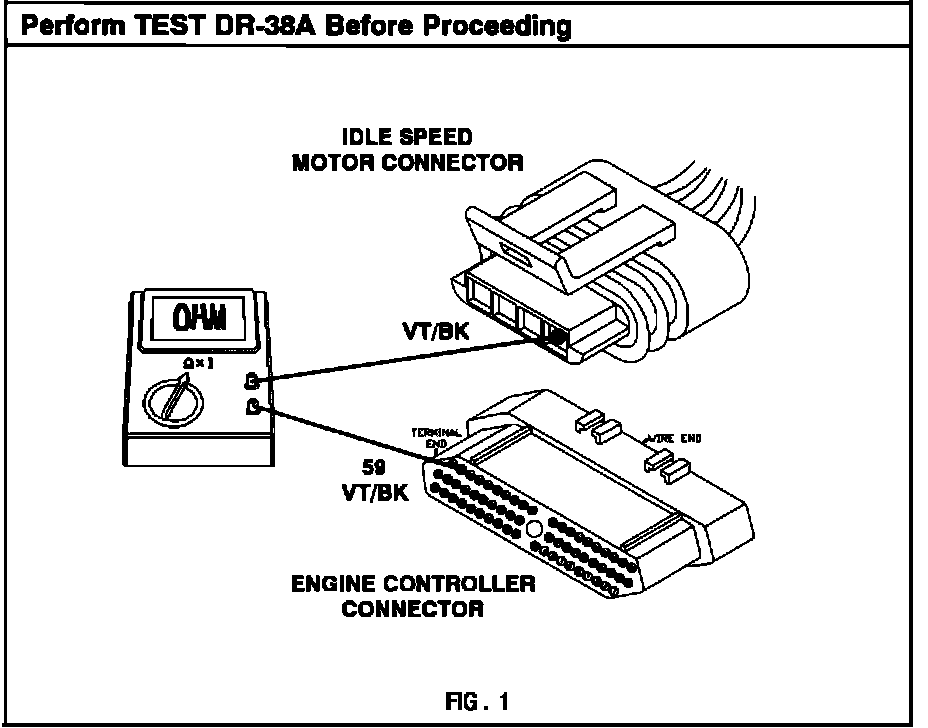

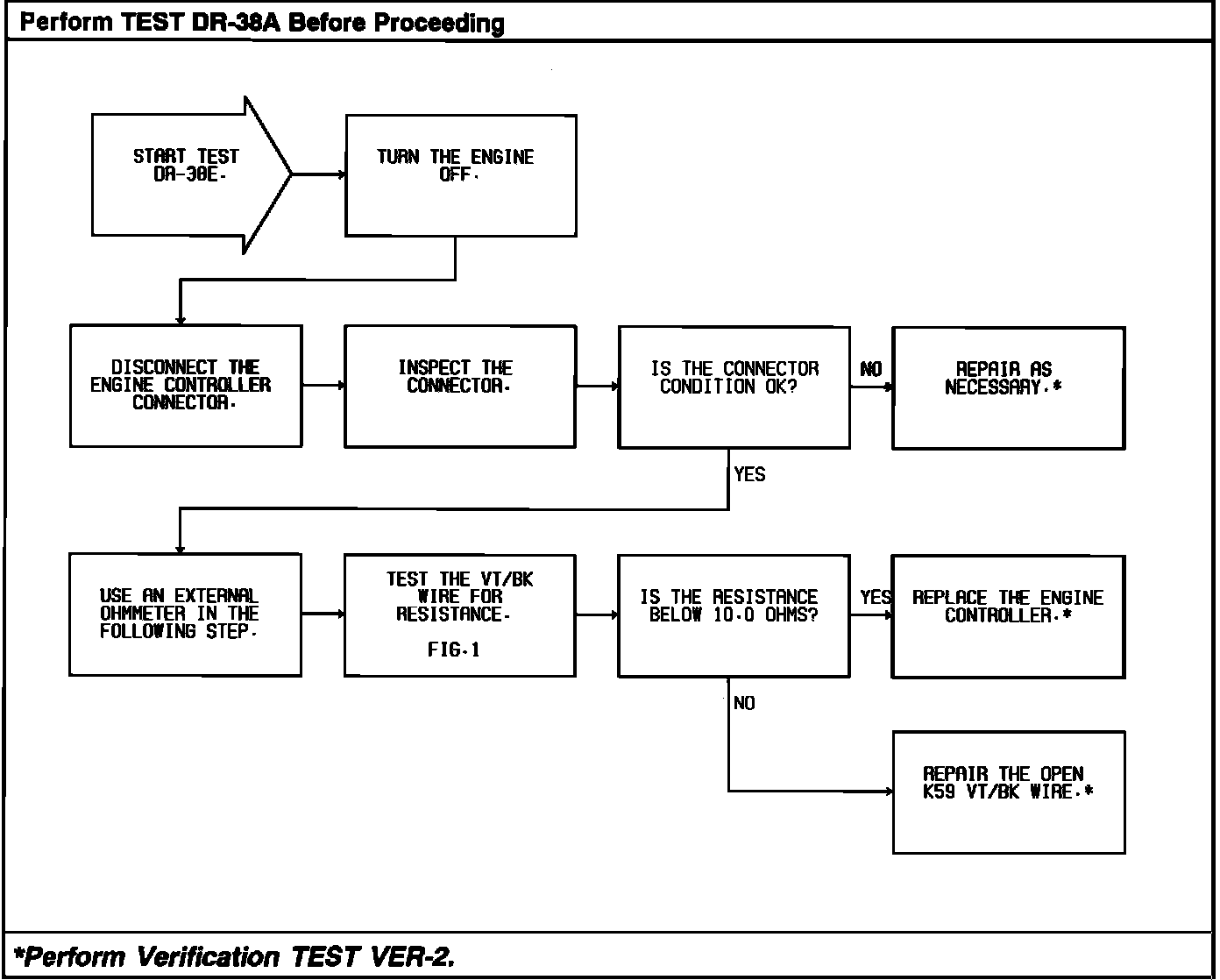

Test DR-38E - Checking Idle Speed Motor Operations:
Test DR-38E - Checking Idle Speed Motor Operations:
