DR-38D Checking Idle Speed Motor Operation
DR-38D Checking Idle Speed Motor Operation

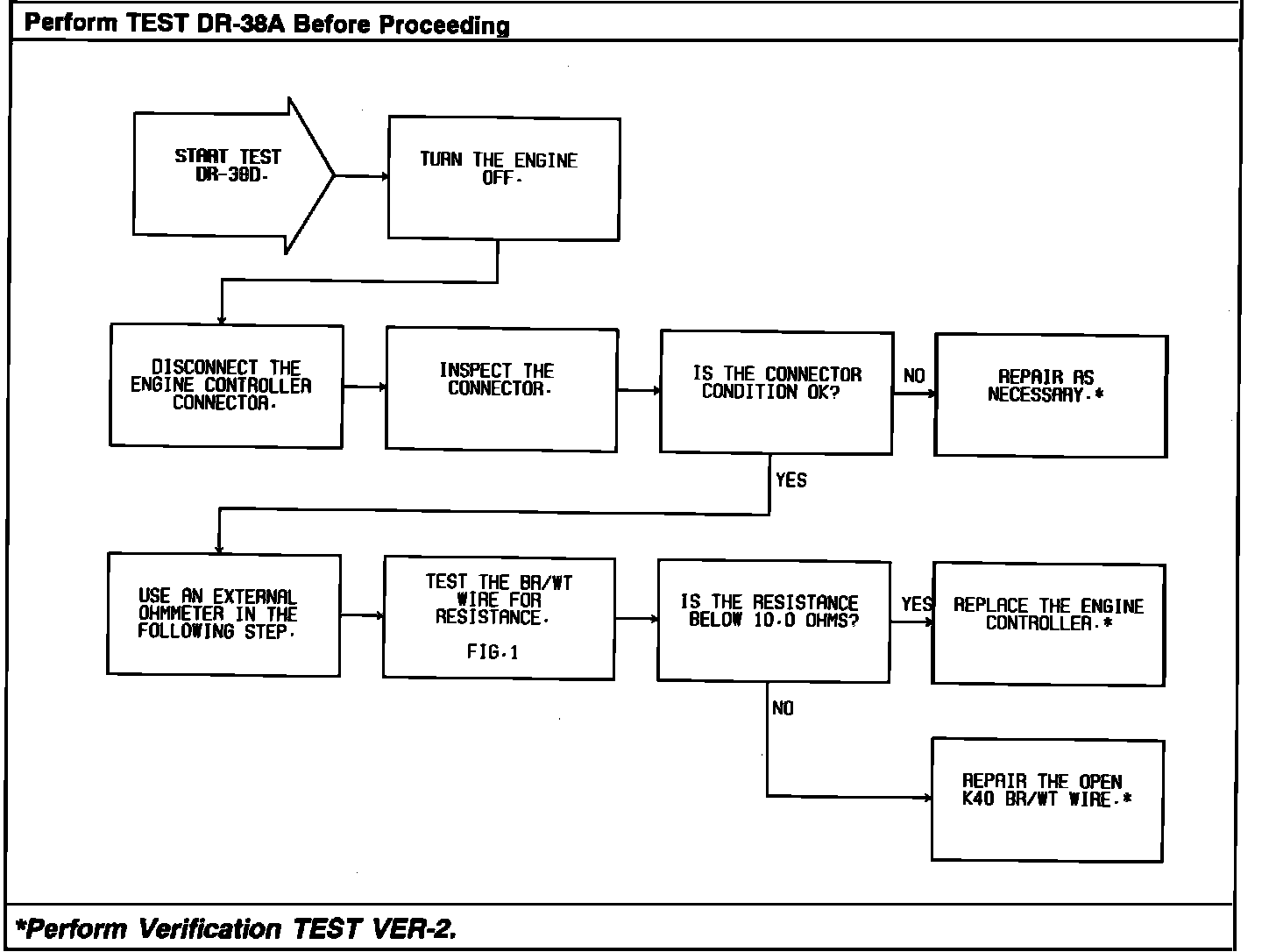

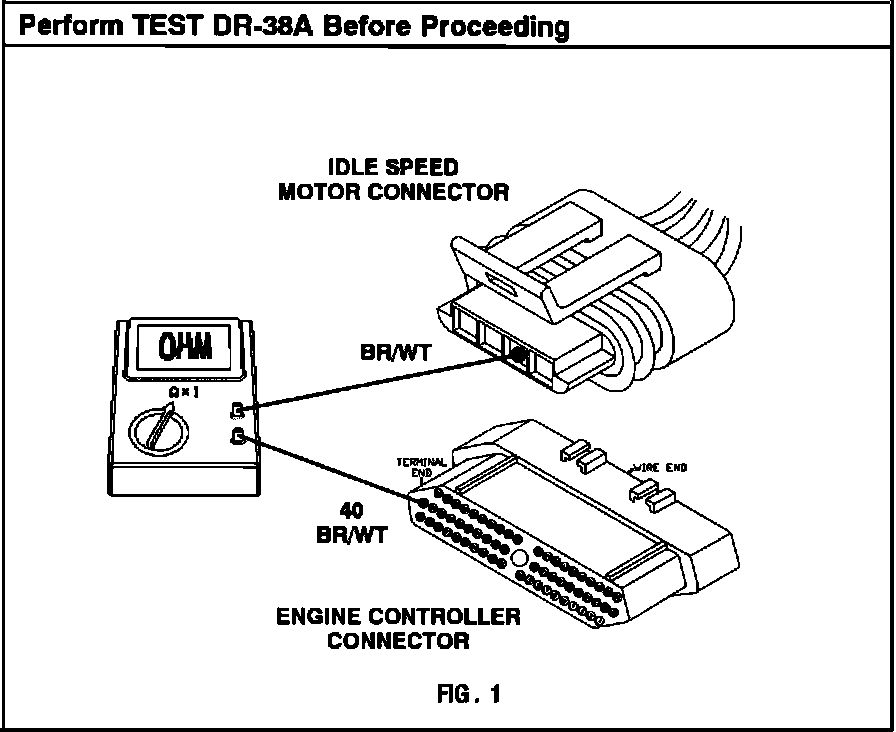

Test DR-38D - Checking Idle Speed Motor Operations:
Test DR-38D - Checking Idle Speed Motor Operations:
