New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Driveability (DR) Tests
>>
DR-38B Checking Idle Speed Motor Operation
DR-38B Checking Idle Speed Motor Operation

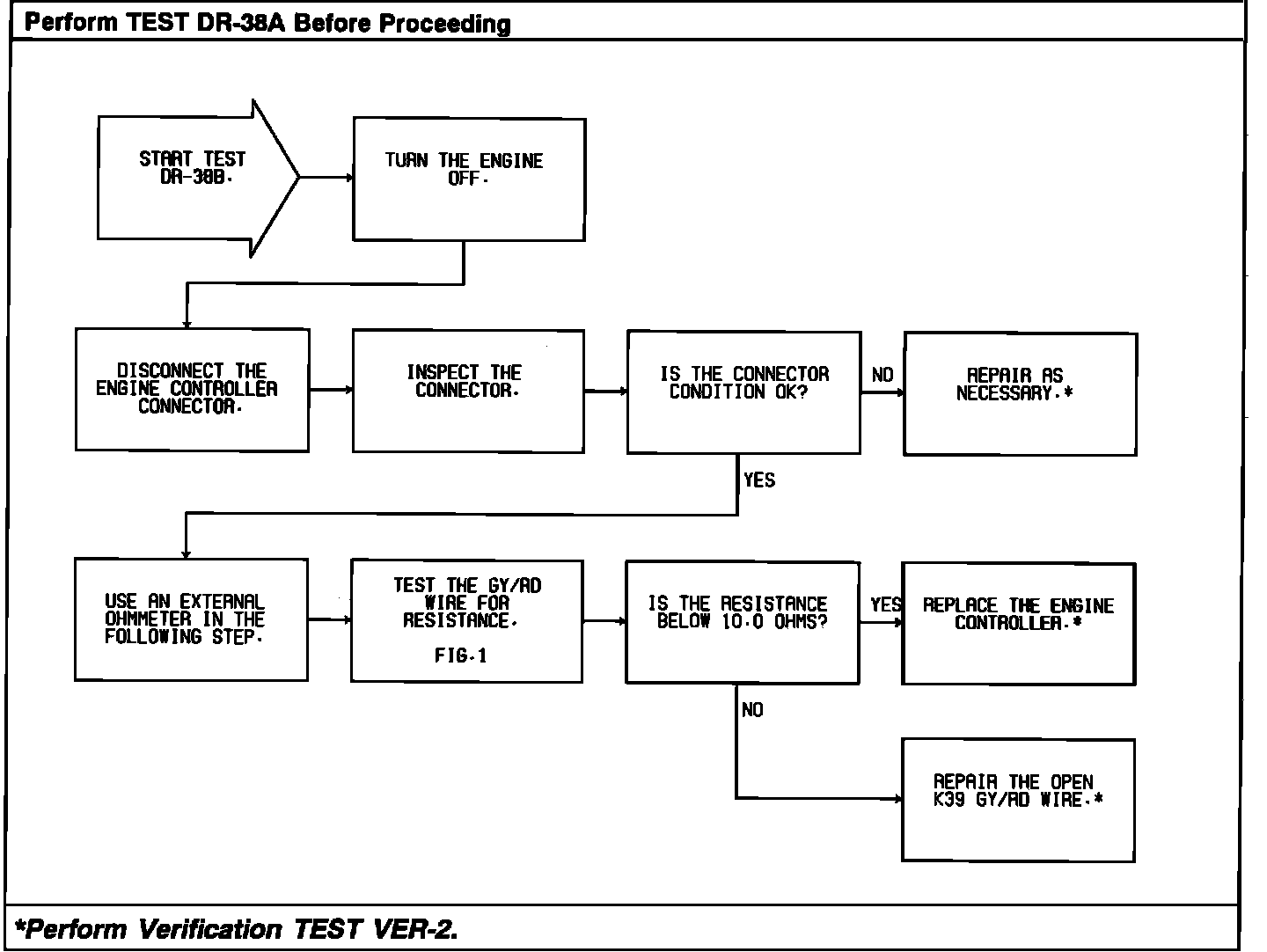

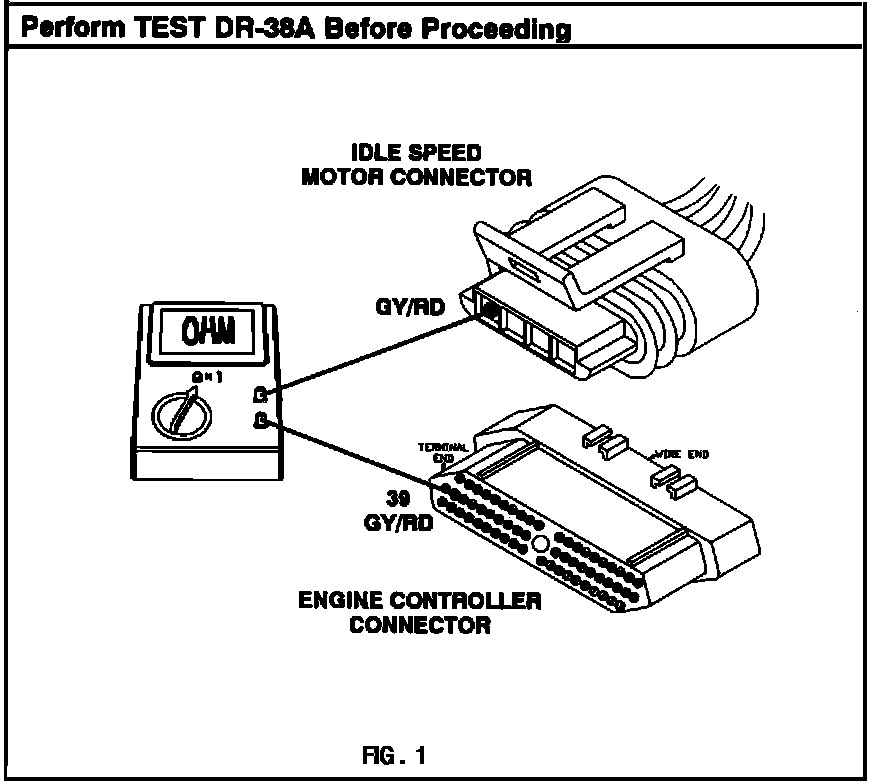

Test DR-38B - Checking Idle Speed Motor Operations:
Test DR-38B - Checking Idle Speed Motor Operations:
