Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-37B Checking Oxygen Sensor Switching >> Part 1 of 2

Part 1 of 2

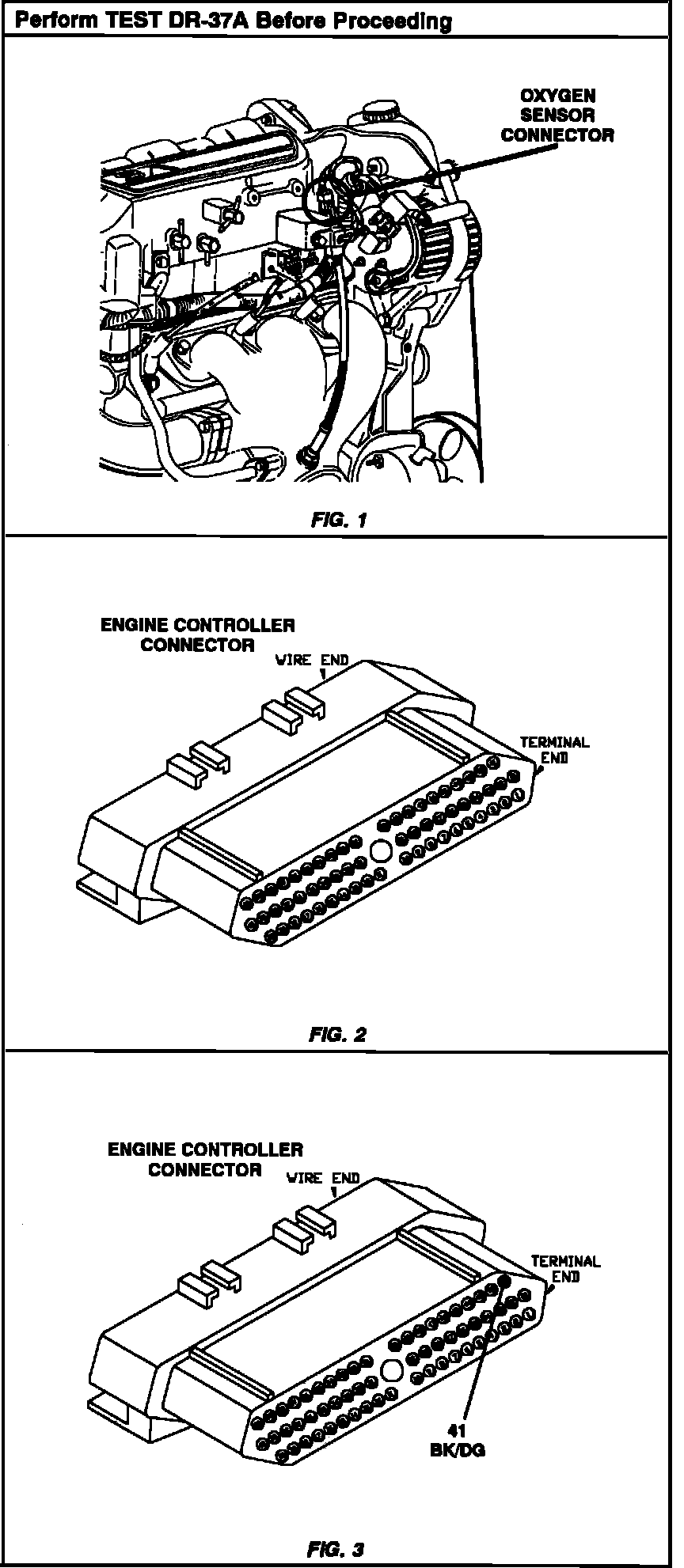

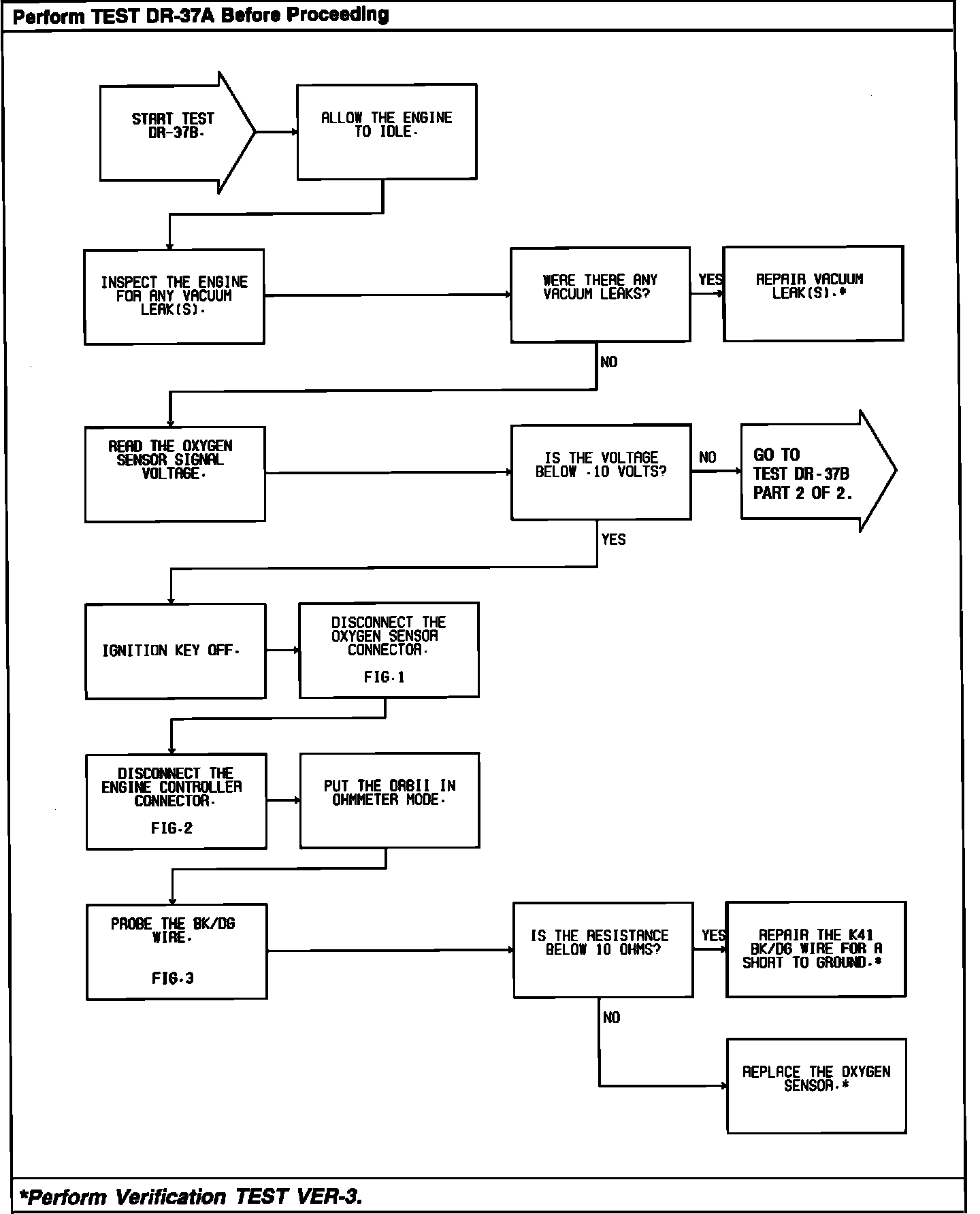

Test DR-37B - Checking Oxygen Sensor Switching:



Test DR-37B - Checking Oxygen Sensor Switching:
