DR-36A Checking MAP Sensor Calibration
DR-36A Checking MAP Sensor Calibration

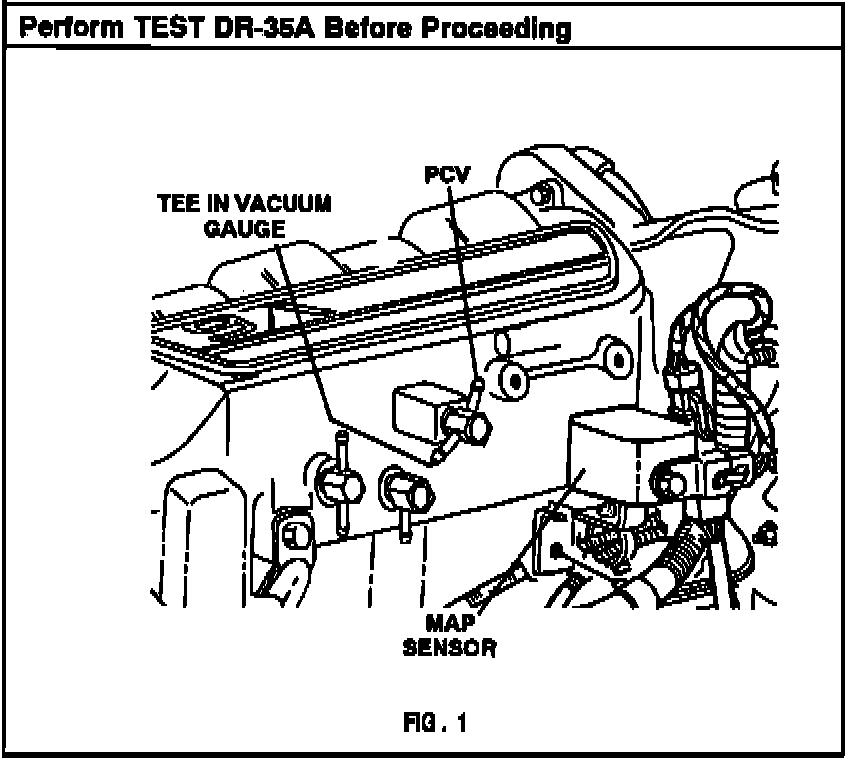

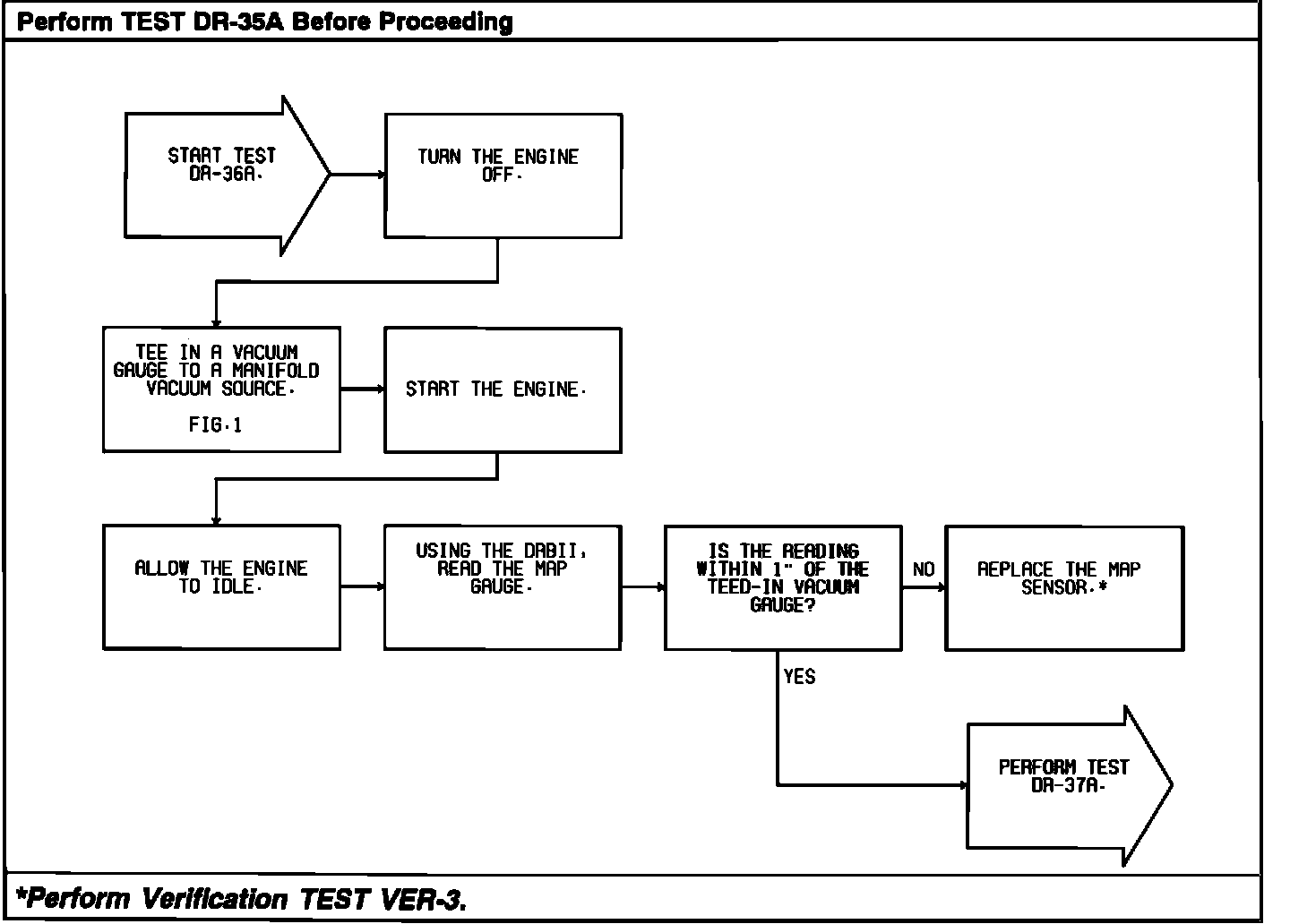

Test DR-36A - Checking MAP Sensor Calibration:
Test DR-36A - Checking MAP Sensor Calibration:
