Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-35A Checking Coolant & TPS Calibration >> Part 1 of 2

Part 1 of 2

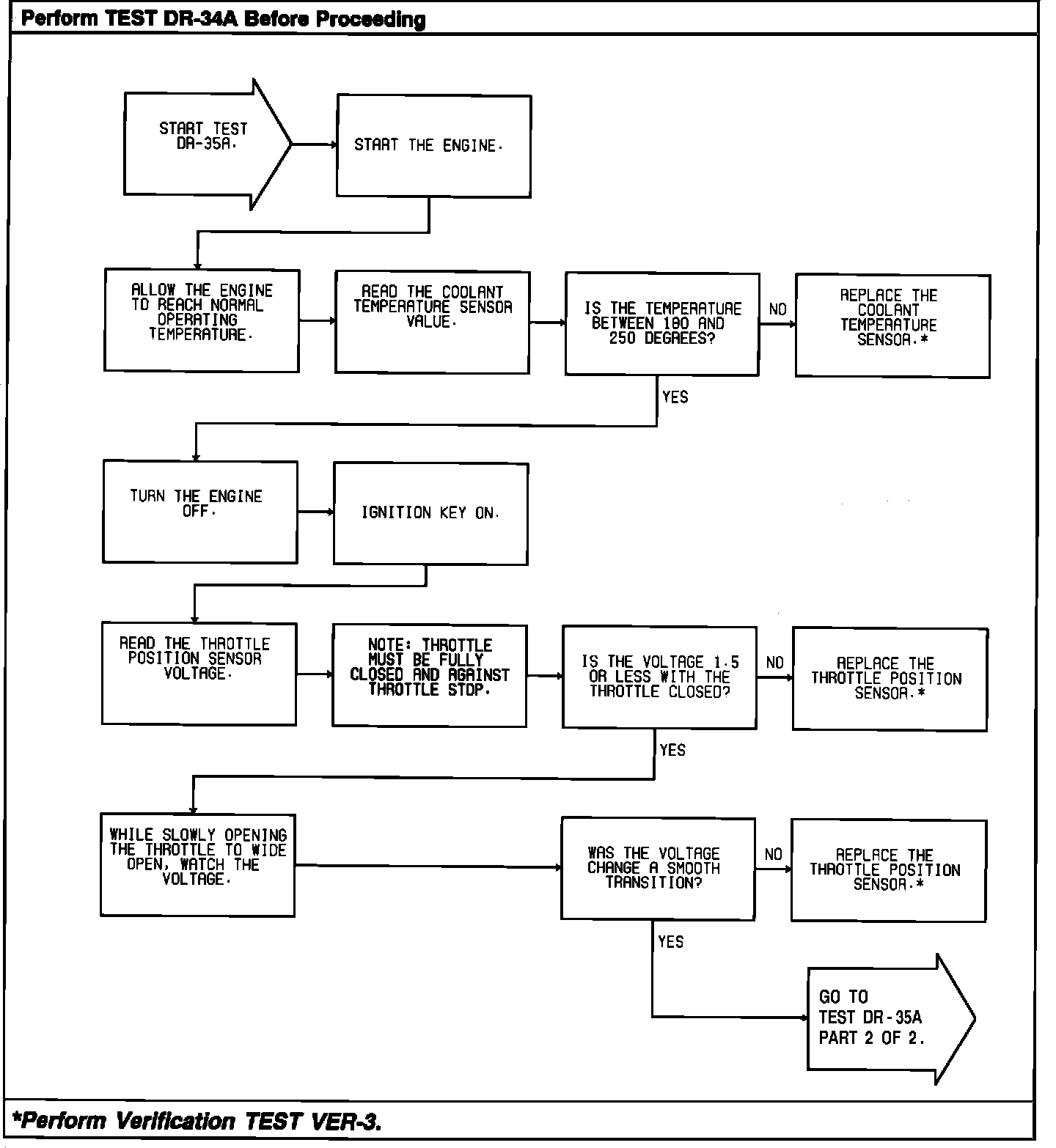

Test DR-35A - Checking Coolant Sensor And TPS Calibration:
