DR-33A Checking Secondary Ignition & Timing
DR-33A Checking Secondary Ignition & Timing
Checking Secondary Ignition and Timing:

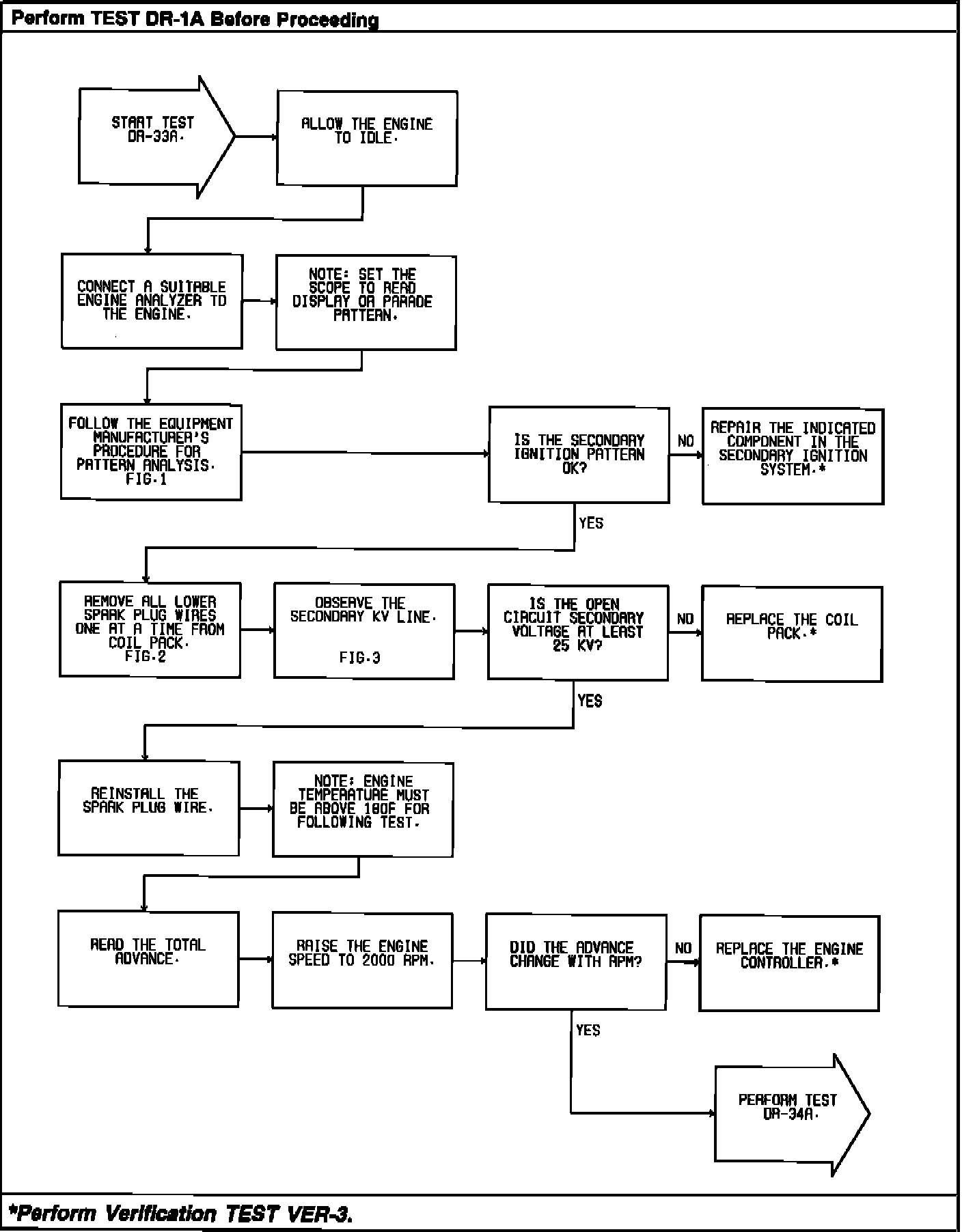

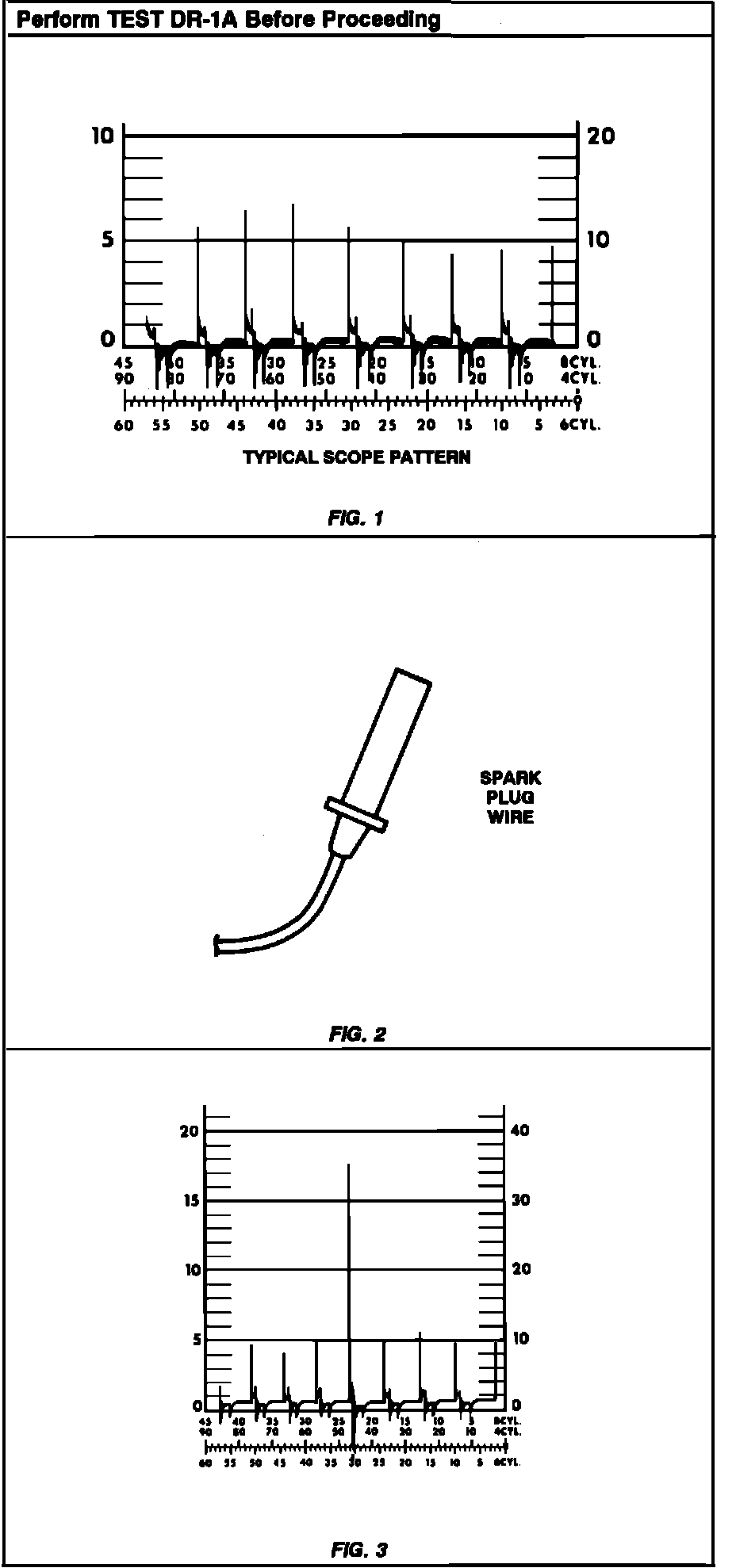

Test DR-33A - Checking Secondary Ignition and Timing:
