Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-31A Repairing "Ignition Coil #3 Primary Circuit" Fault >> Part 1 of 2

Part 1 of 2

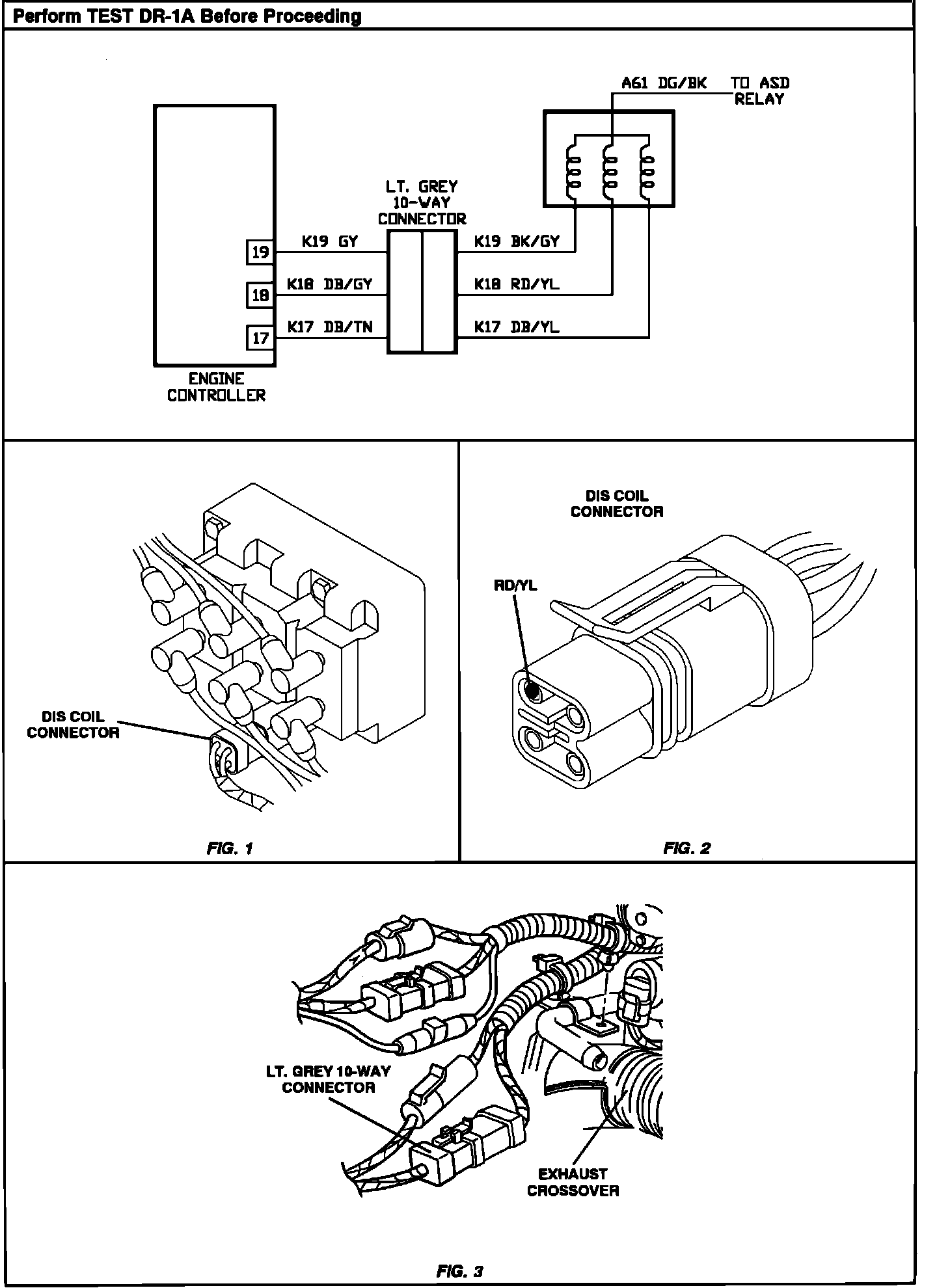

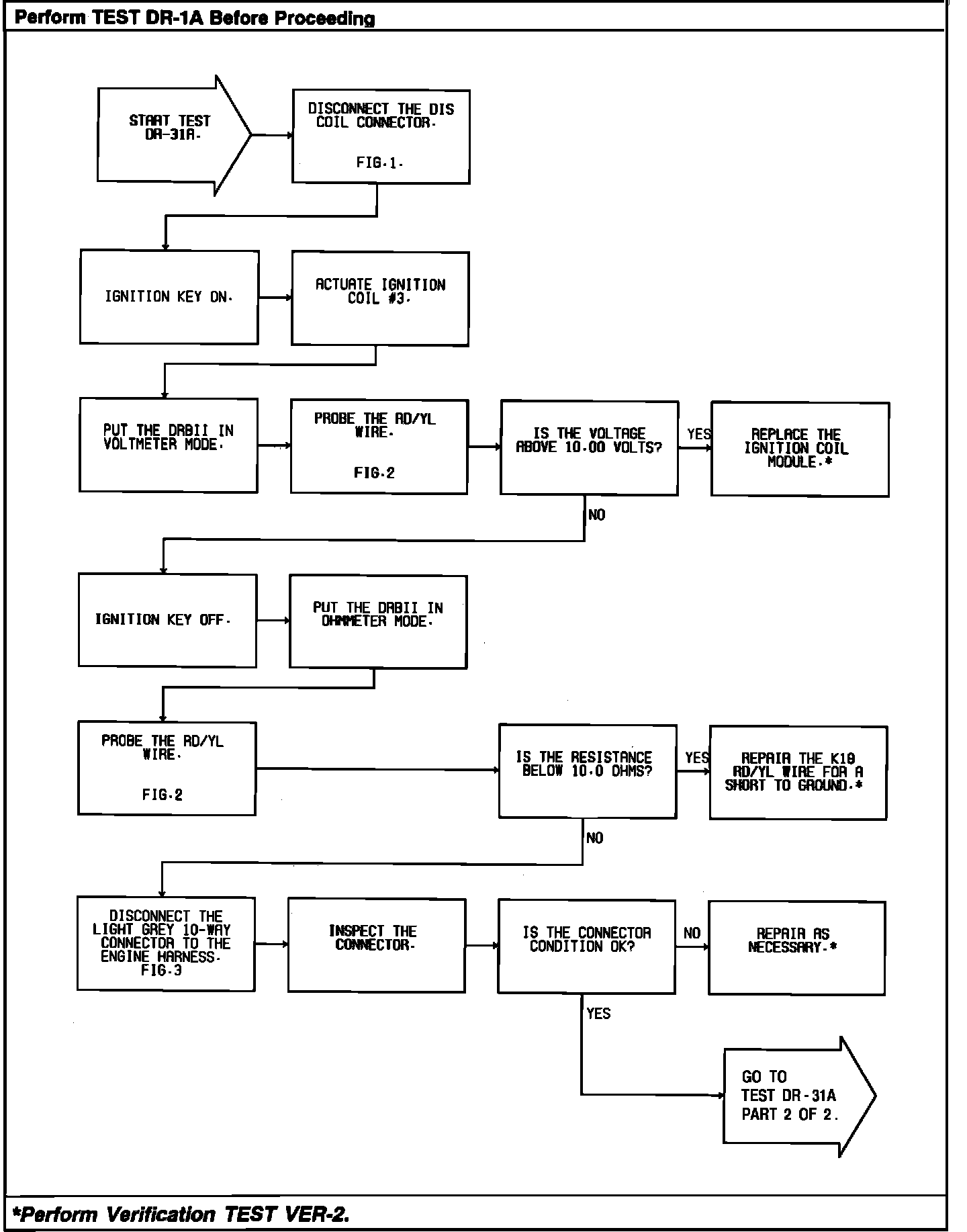

Test DR-31A - "Ignition Coil #3 Primary Circuit":



Test DR-31A - "Ignition Coil #3 Primary Circuit":
