Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-21A Repairing "Purge Solenoid Circuit " Fault >> Part 3 of 3

Part 3 of 3

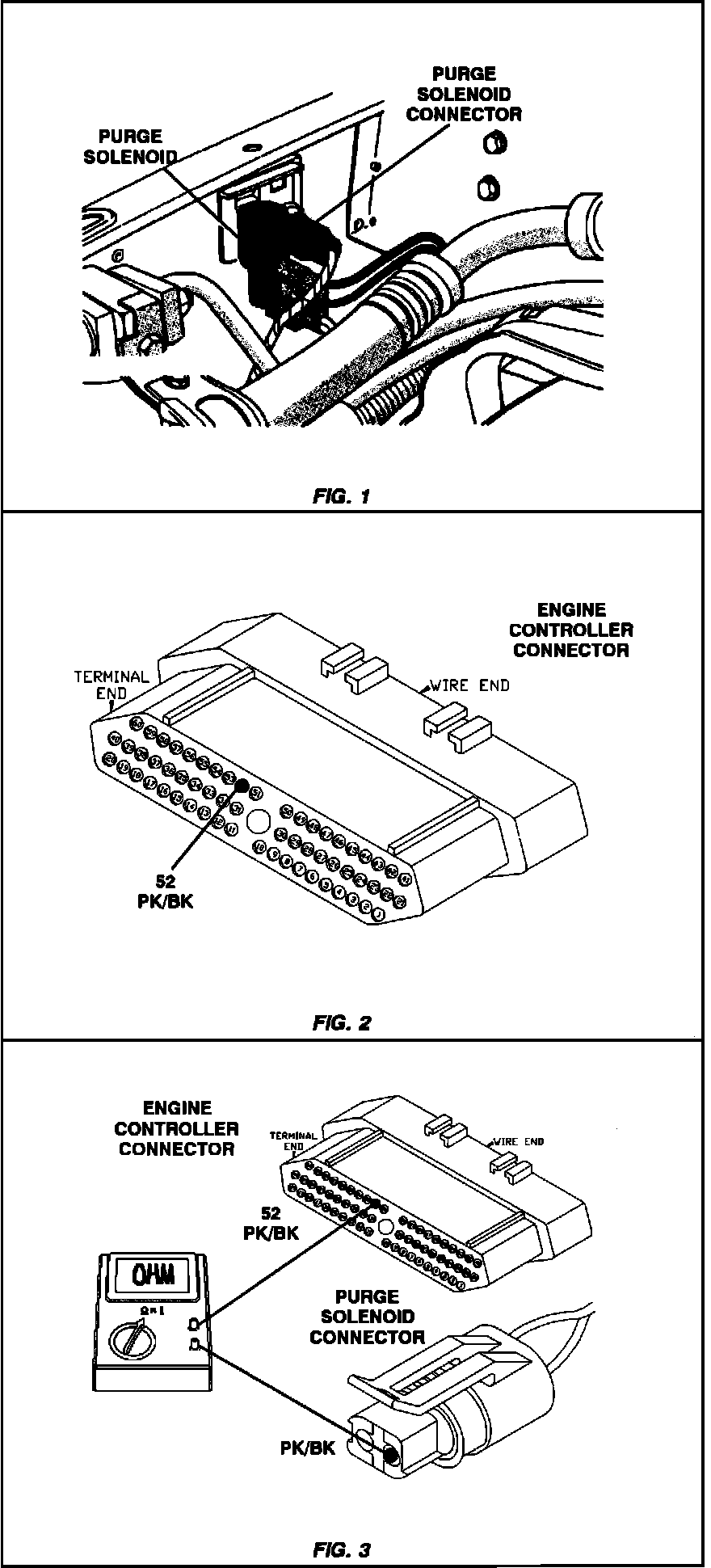

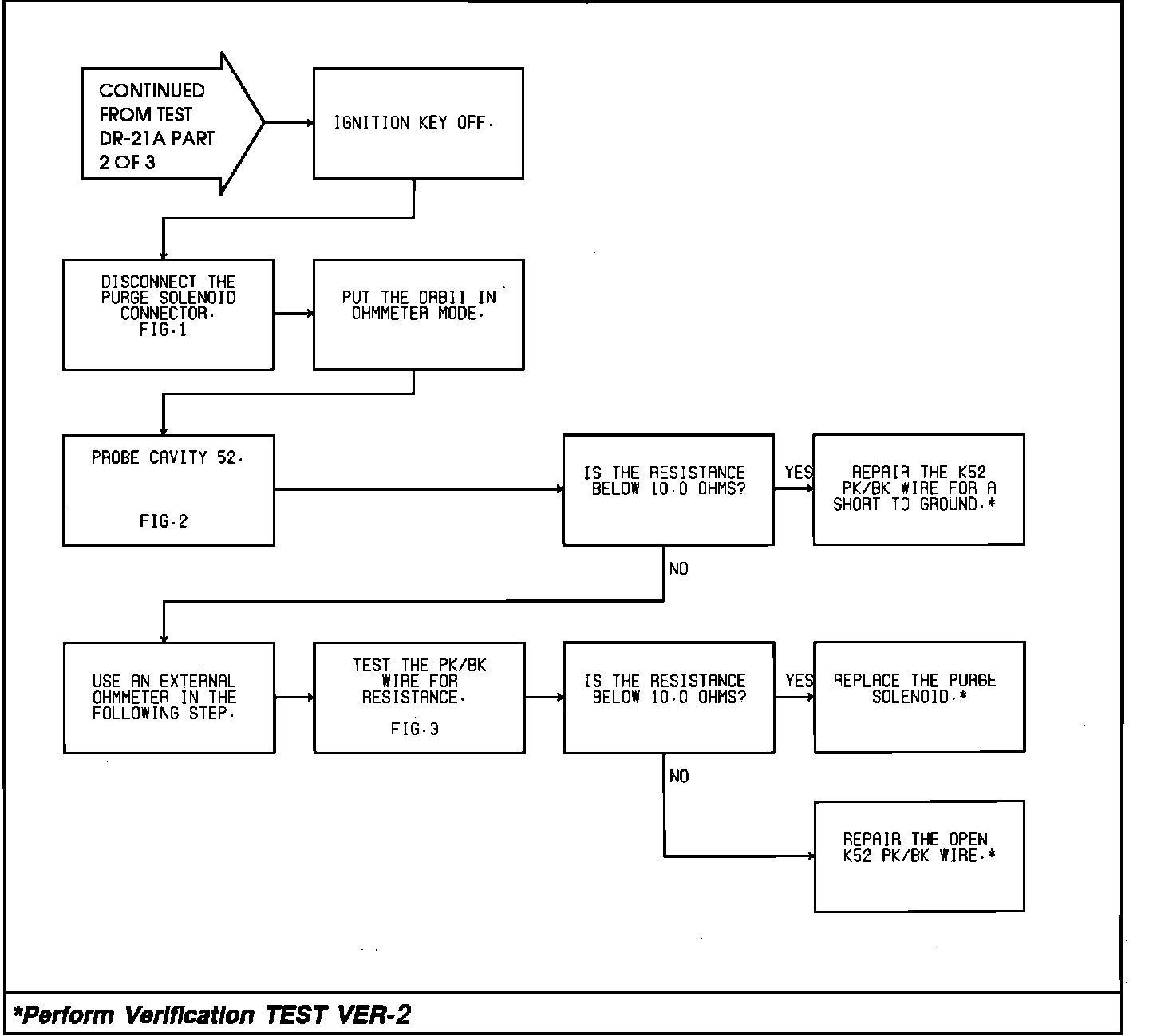

Test DR-21A - "Purge Solenoid Circuit":



Test DR-21A - "Purge Solenoid Circuit":
