DR-20A Repairing "Inj #3 Control Circuit & Peak Current" Fault
>>
Part 1 of 3
Part 1 of 3

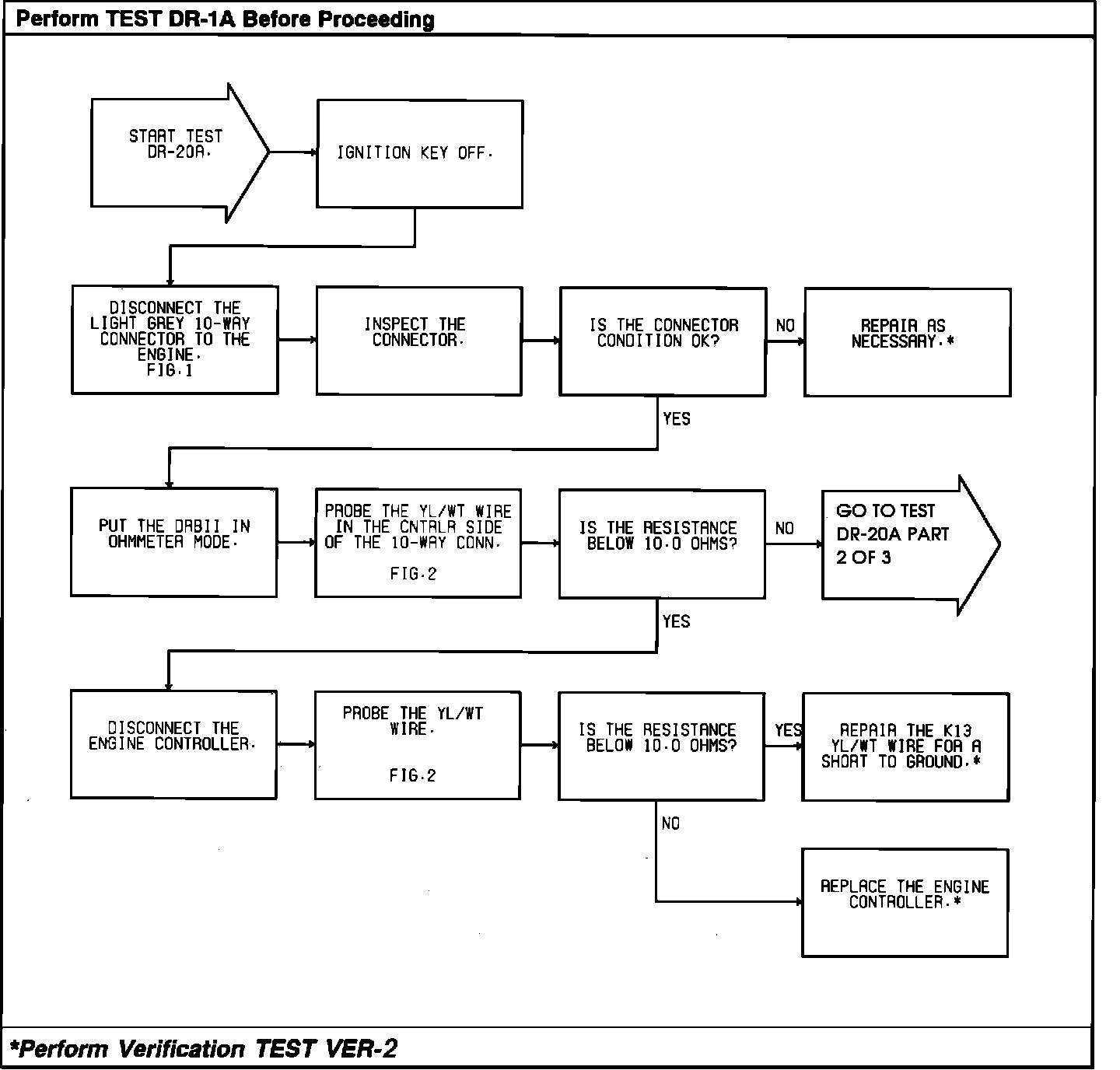

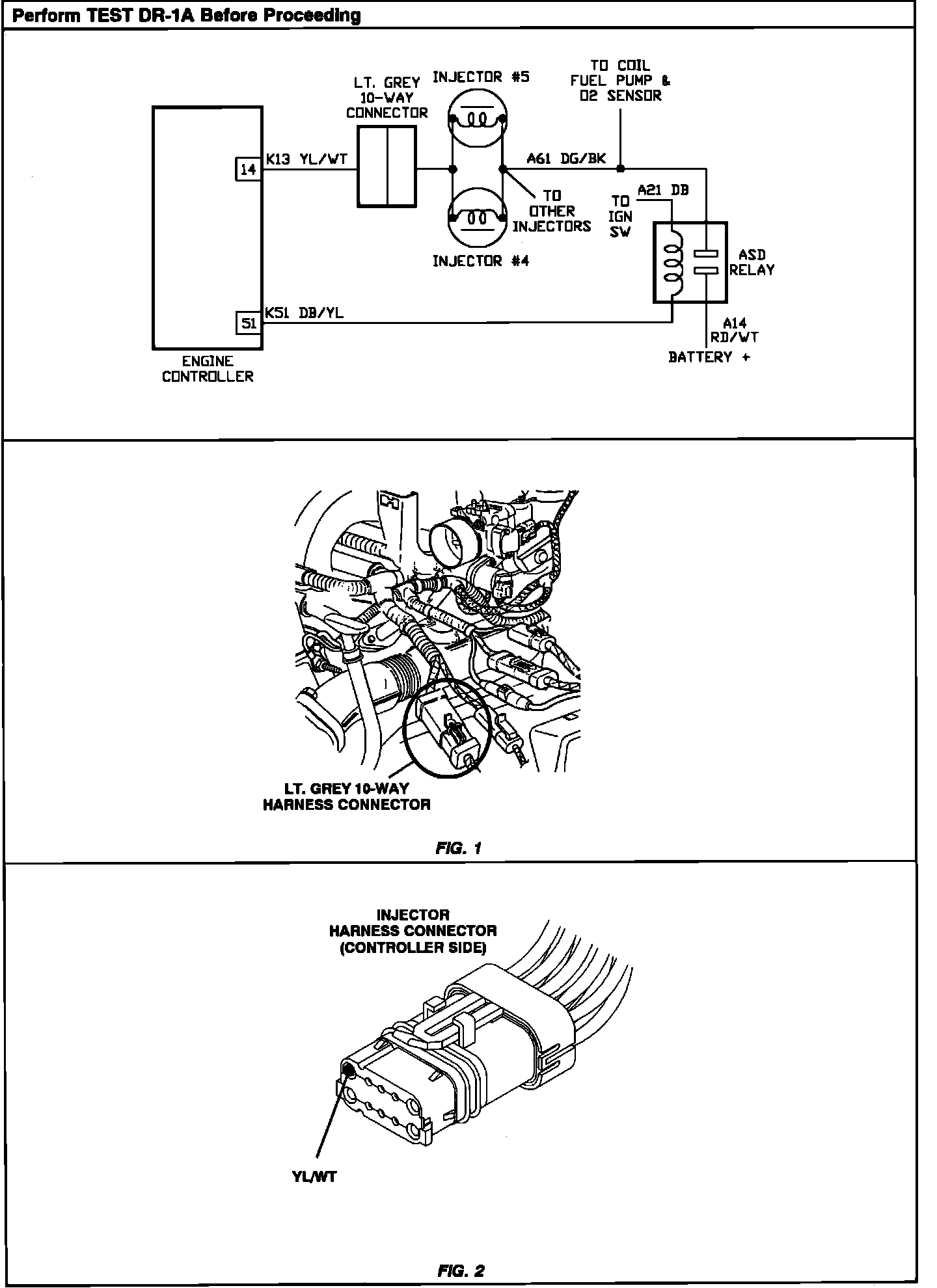

Test DR-20A - "Injector #3 Control Circuit And Peak Current Not Reached":
Test DR-20A - "Injector #3 Control Circuit And Peak Current Not Reached":
