DR-19A Repairing "Injector #3 Peak Current Not Reached" Fault
>>
Part 2 of 3
Part 2 of 3

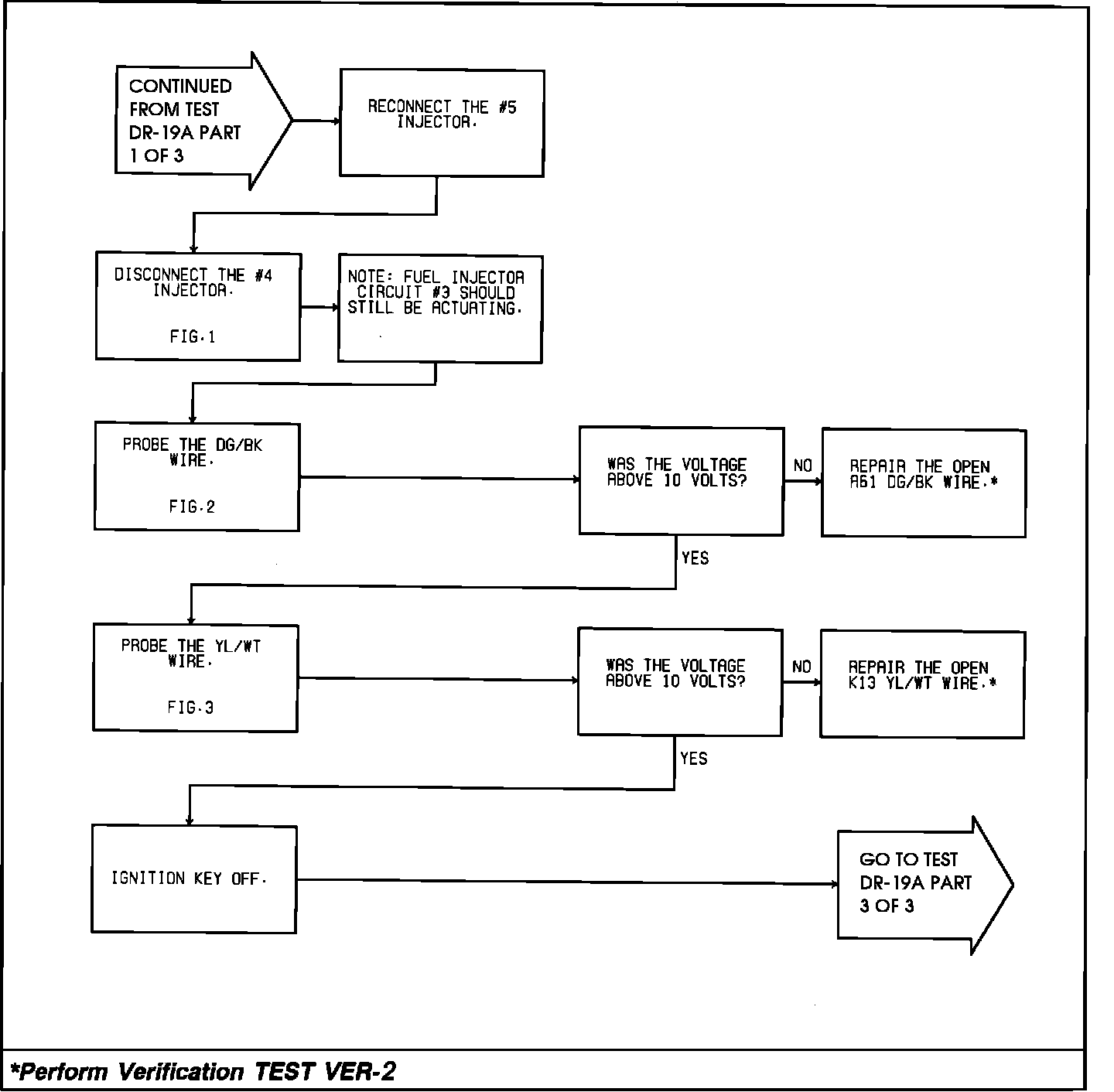

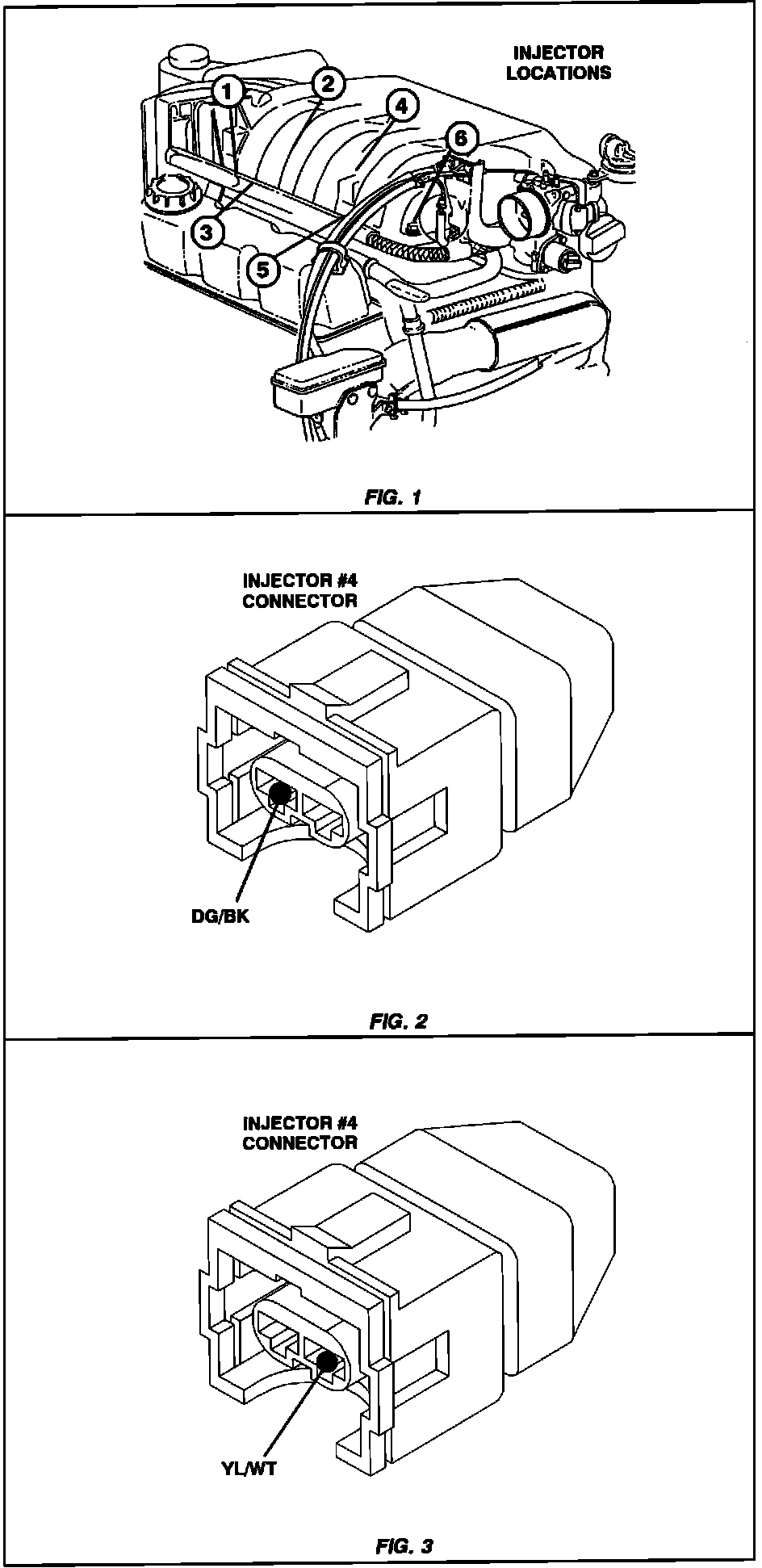

Test DR-19A - "Injector #3 Peak Current Not Reached":
Test DR-19A - "Injector #3 Peak Current Not Reached":
