DR-16A Repairing "Inj #1 Control CKT & Peak Current" Fault
>>
Part 3 of 3
Part 3 of 3

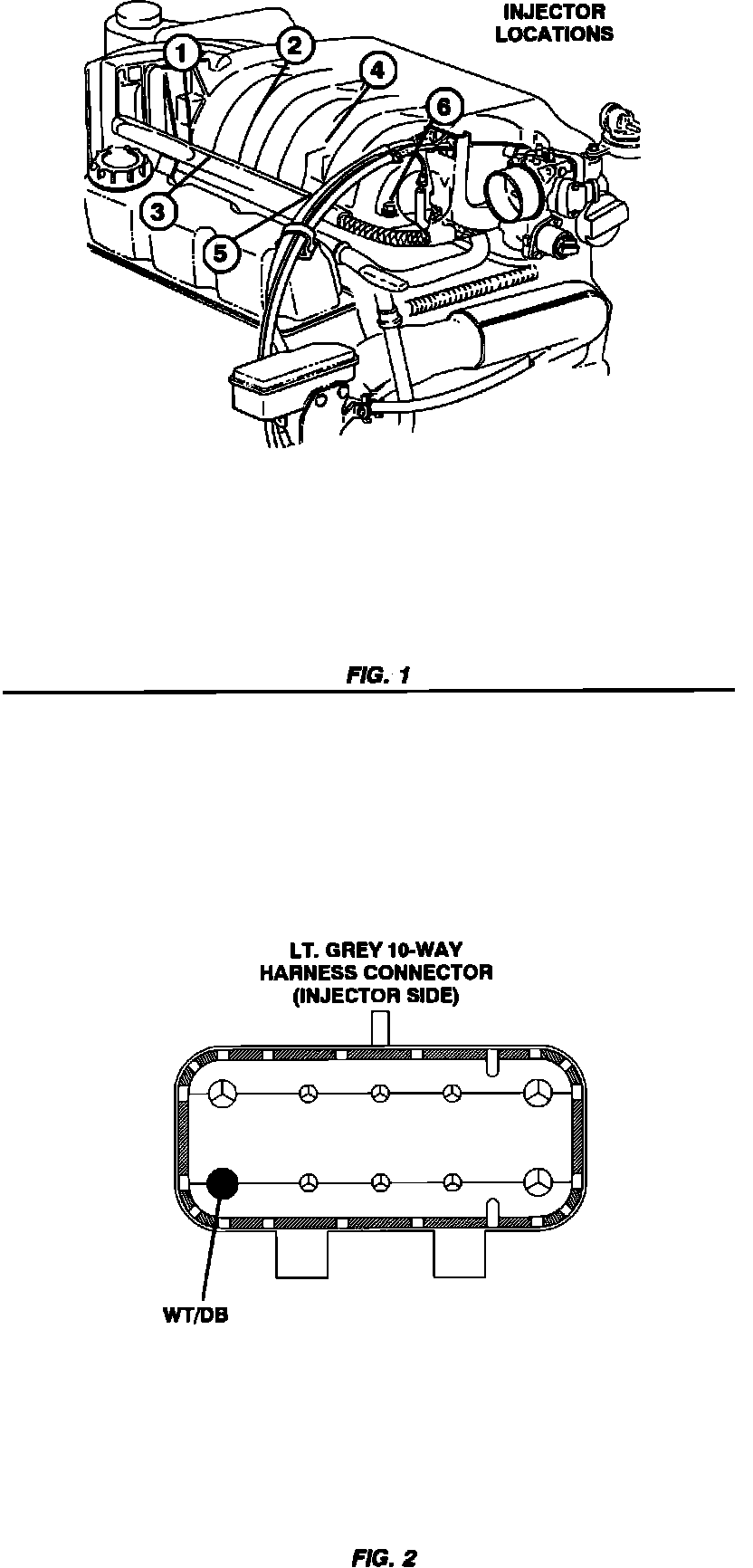

Test DR-16A - "Injector #1 Control Circuit And Peak Current Not Reached":

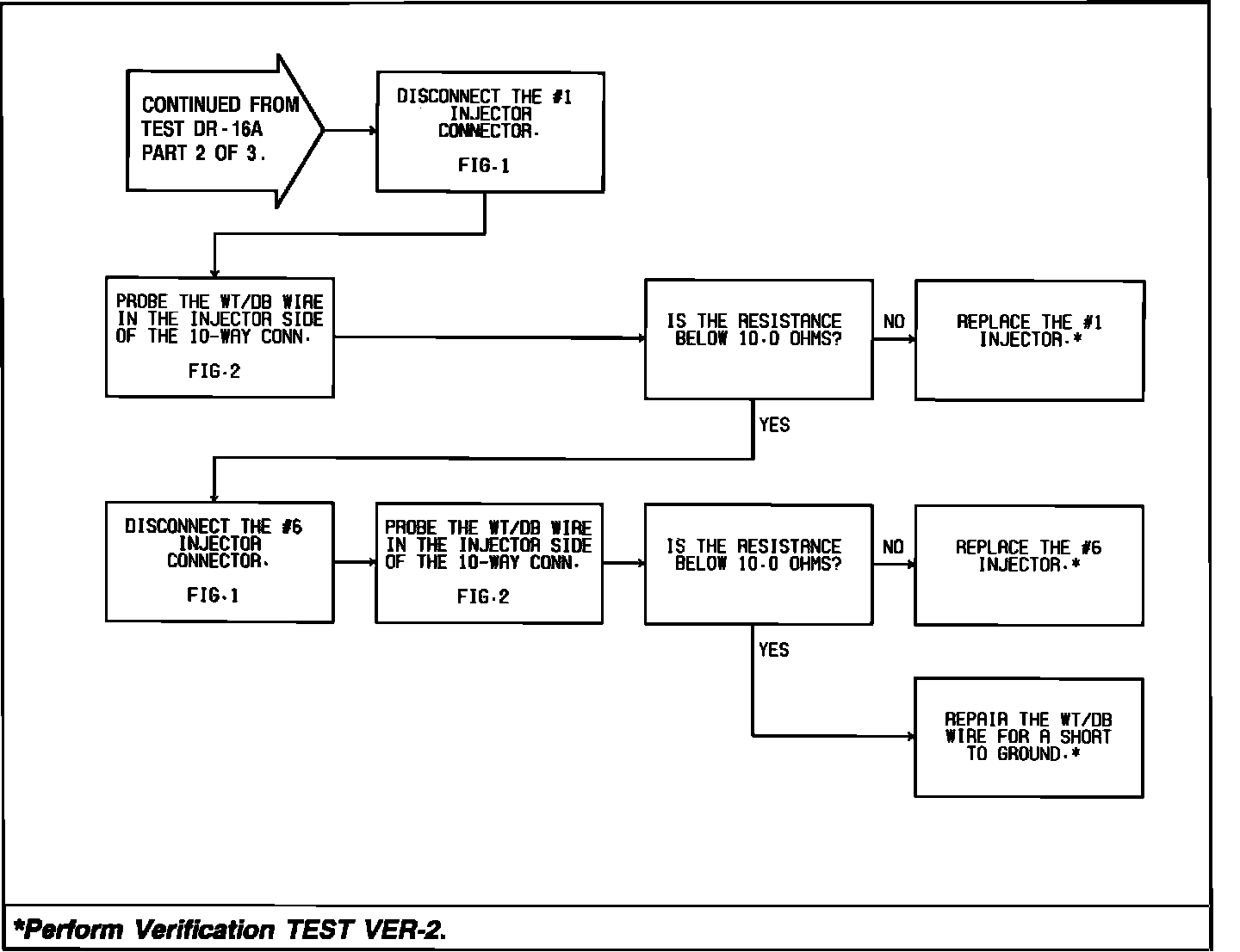

Test DR-16A - "Injector #1 Control Circuit And Peak Current Not Reached":
