Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Driveability (DR) Tests >> DR-14A Repairing "Automatic Idle Motor Circuits" Fault >> Part 2 of 4

Part 2 of 4

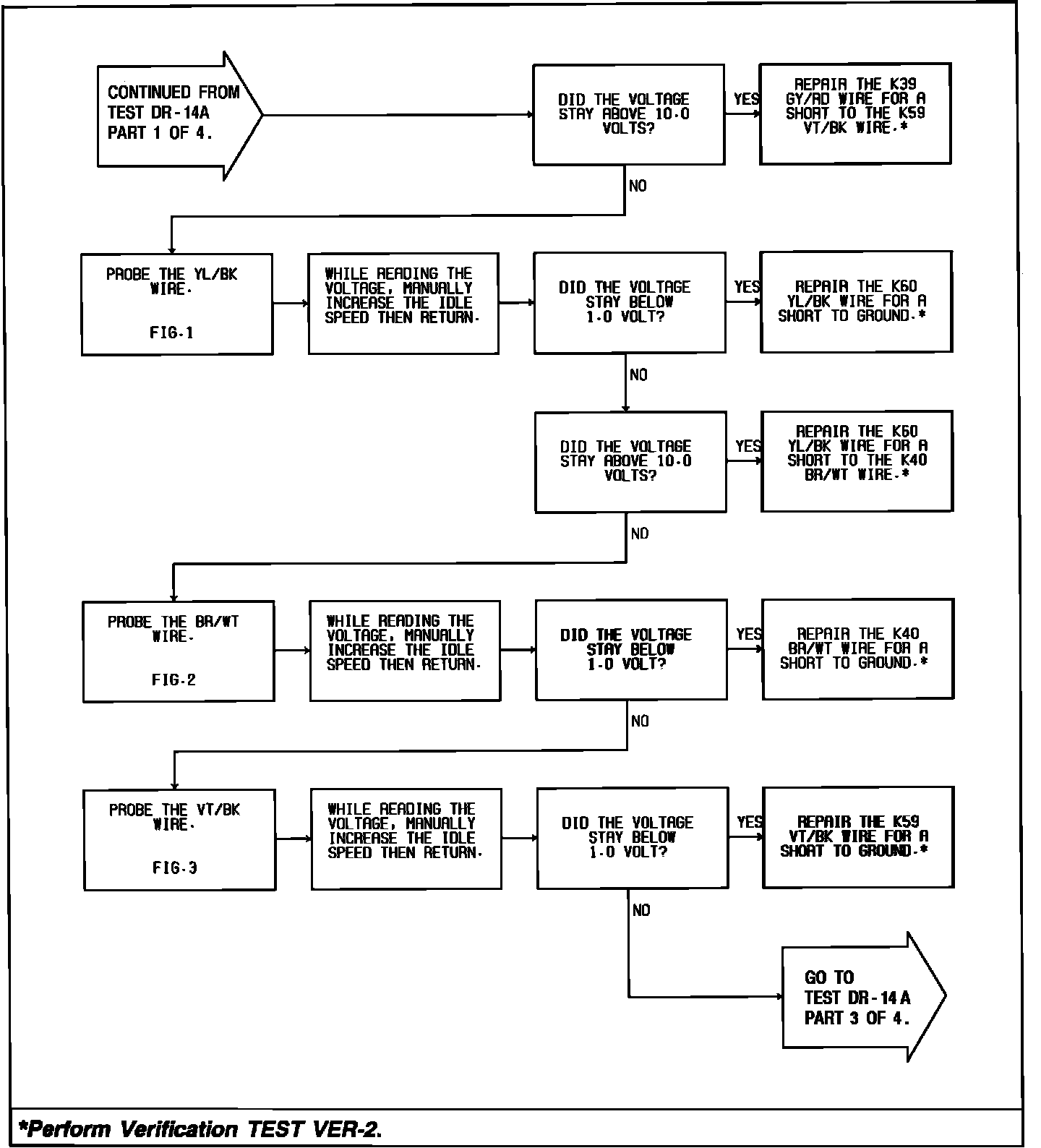

Test DR-14A - "Automatic Idle Speed Motor Circuits":



Test DR-14A - "Automatic Idle Speed Motor Circuits":
