Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 9 - Right Rear Wheel Speed Sensor Continuity Fault >> Test 9K

Test 9K

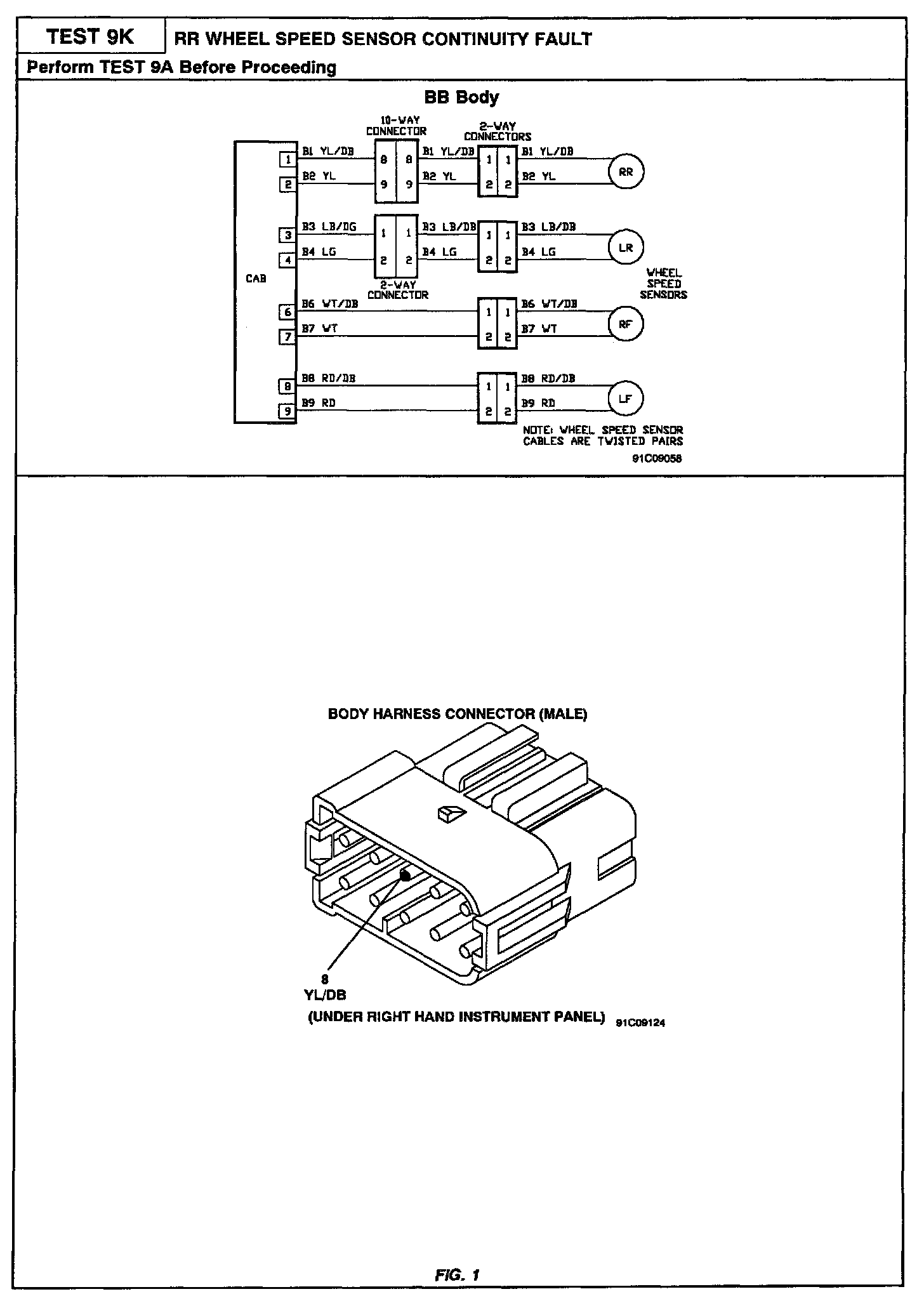

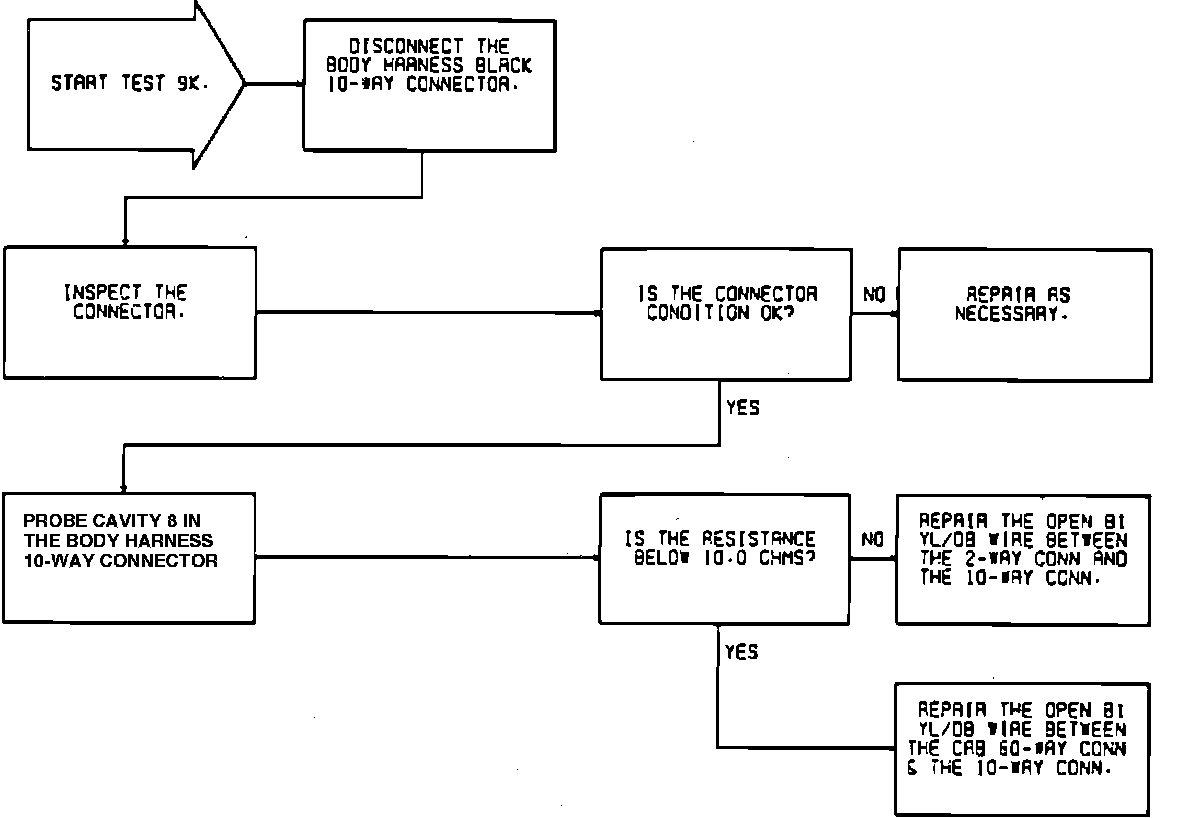

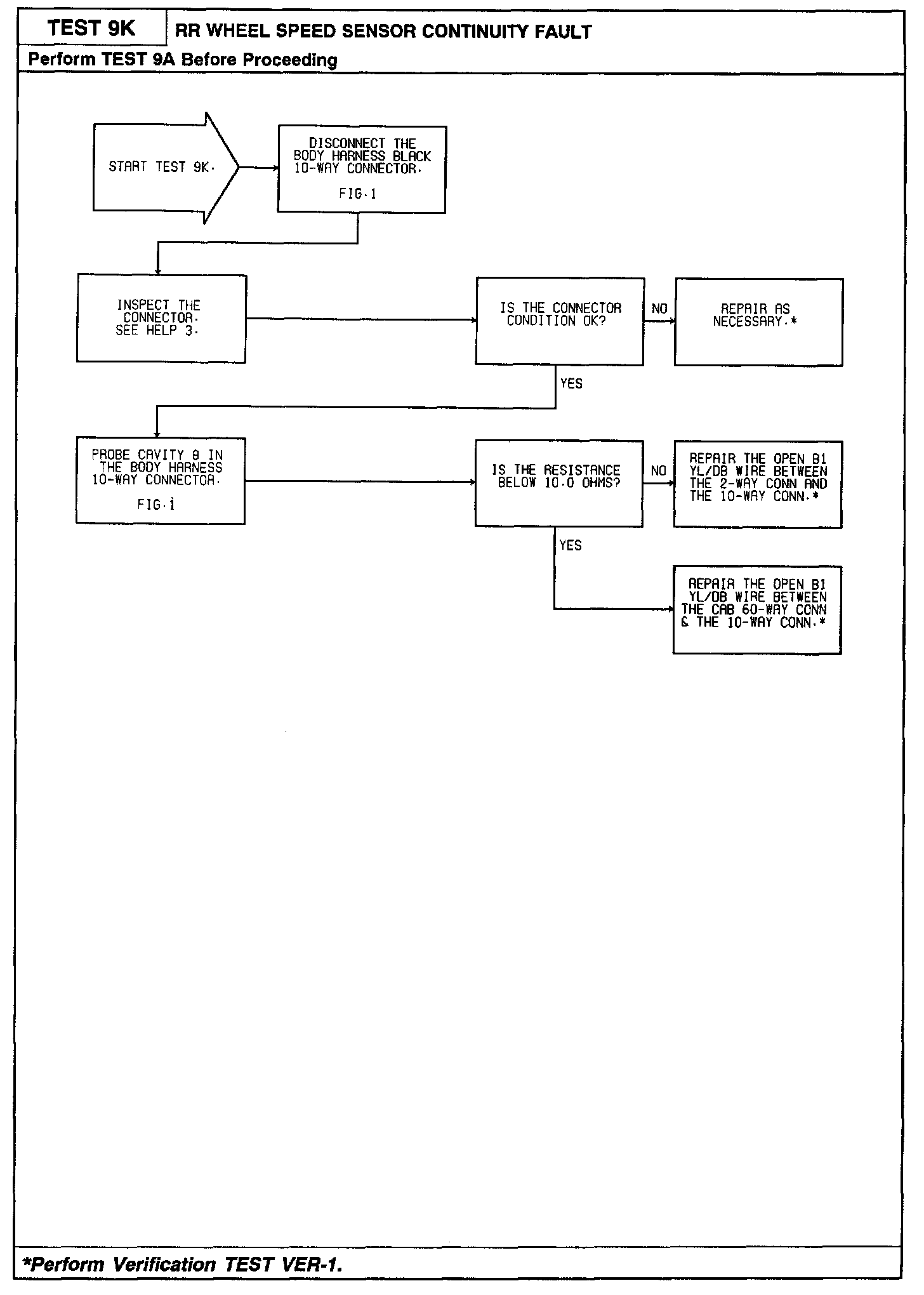

Fig. 74 Test 9K--Right Rear Wheel Speed Sensor Continuity Fault:
