Test 8D

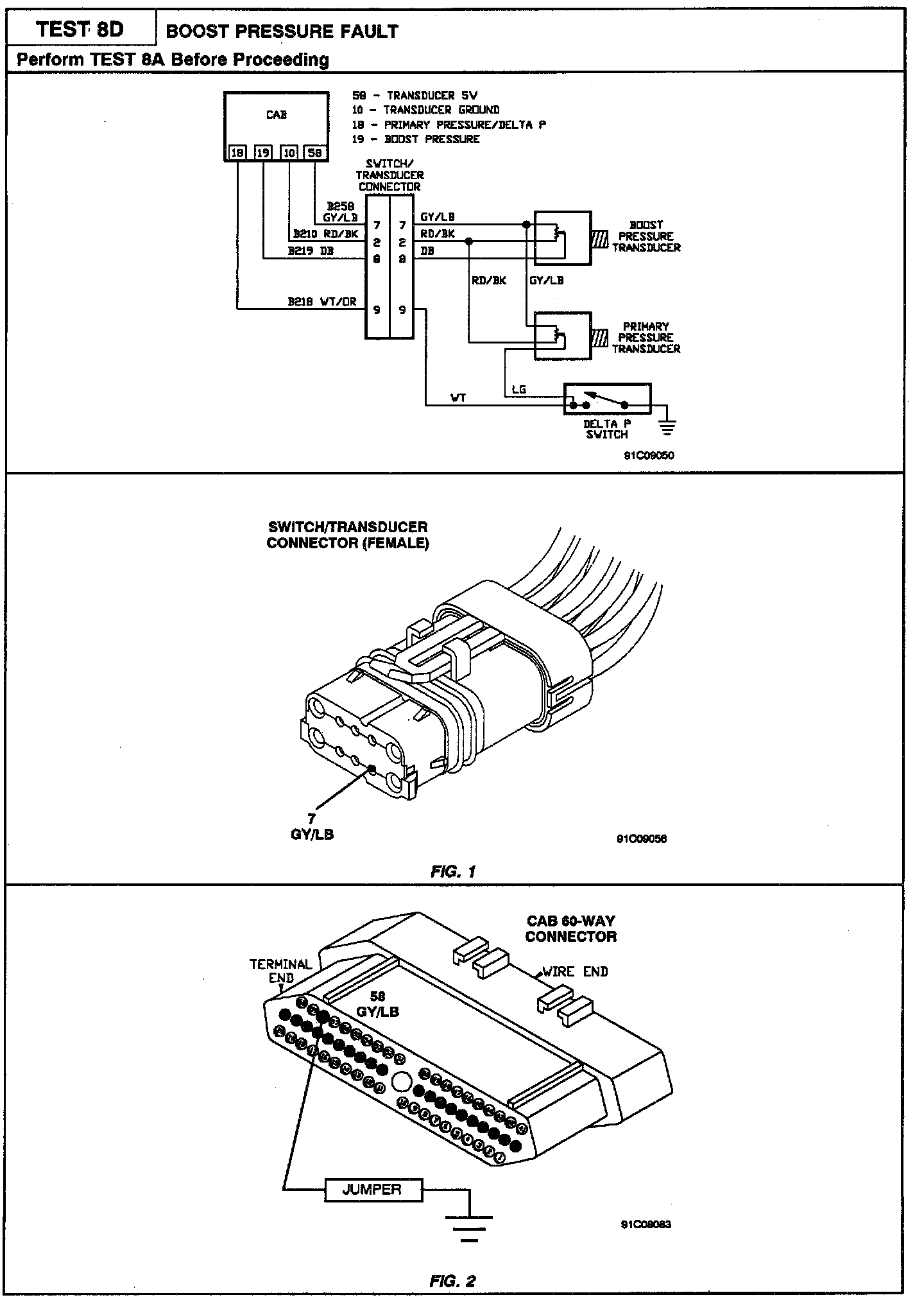

Fig. 59 Test 8D--Boost Pressure Fault:

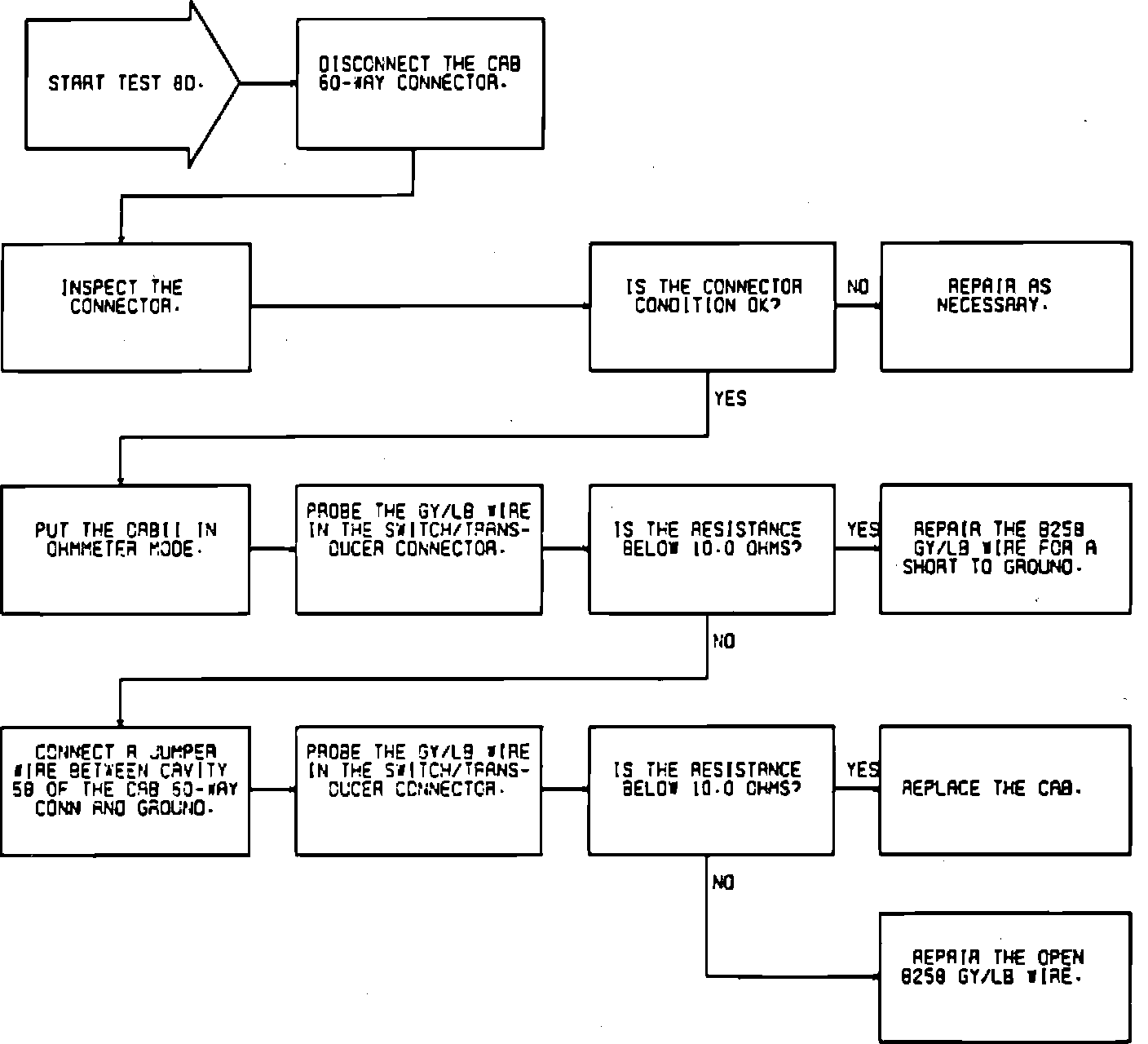

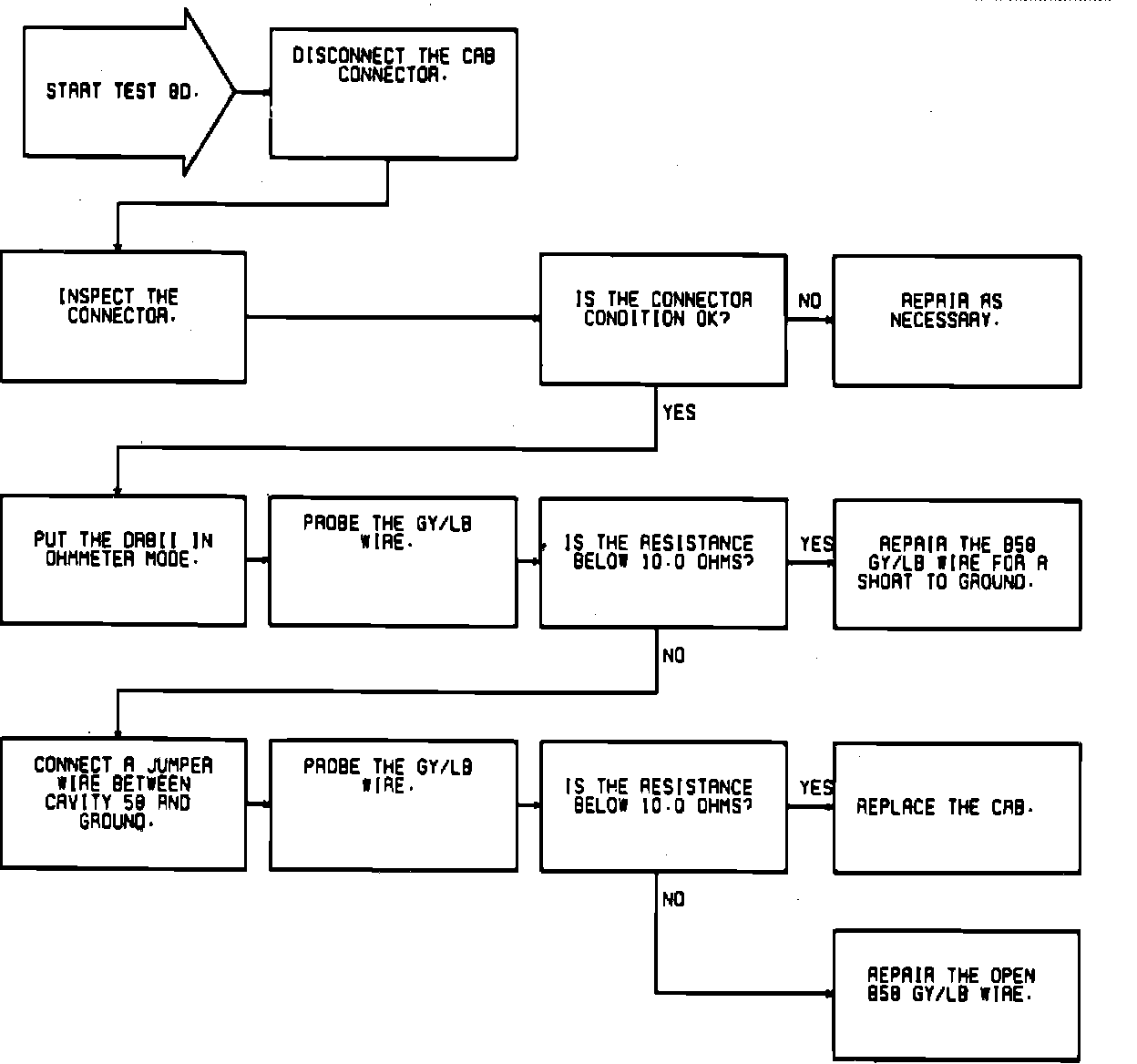

Fig. 116 Test 8D:

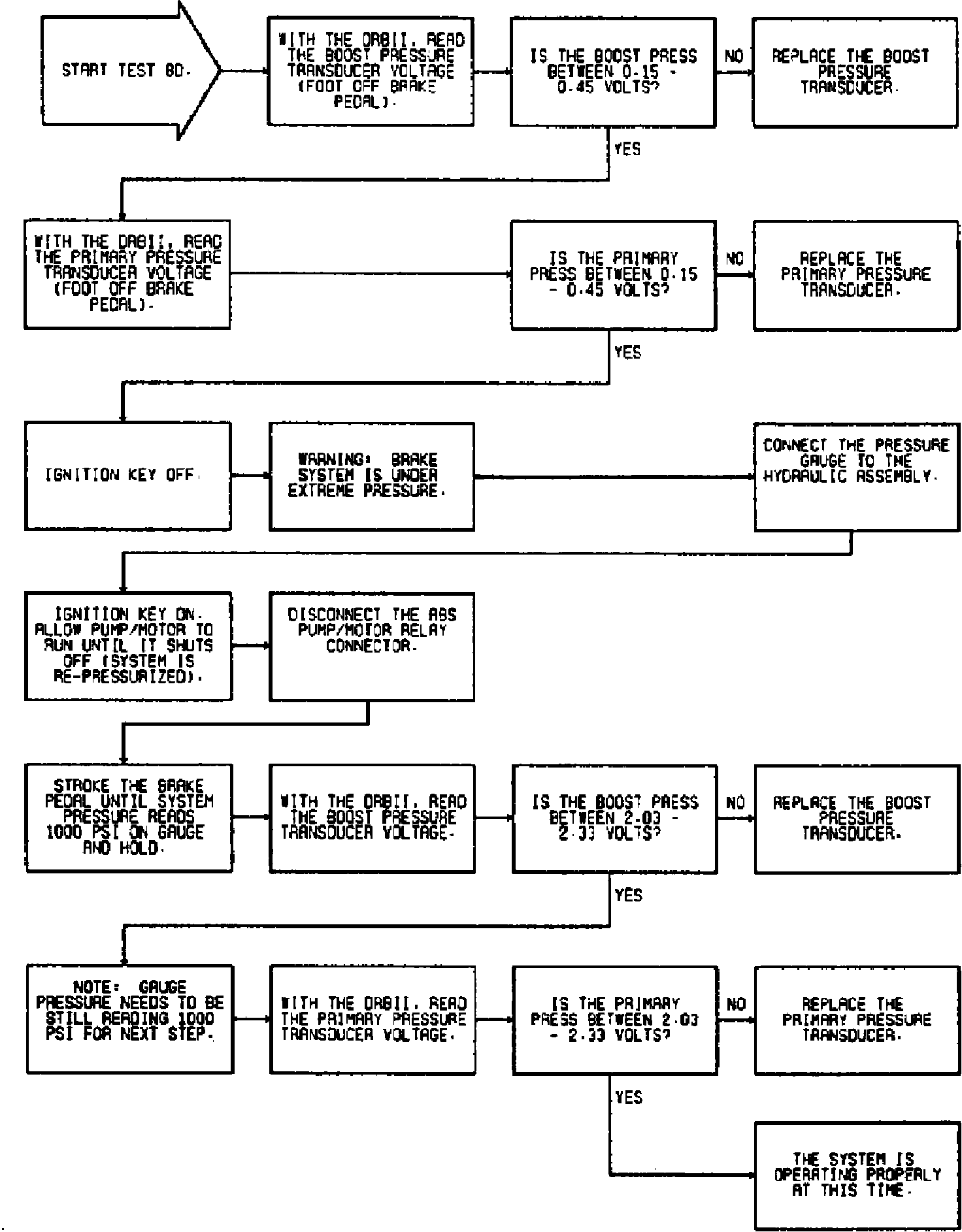

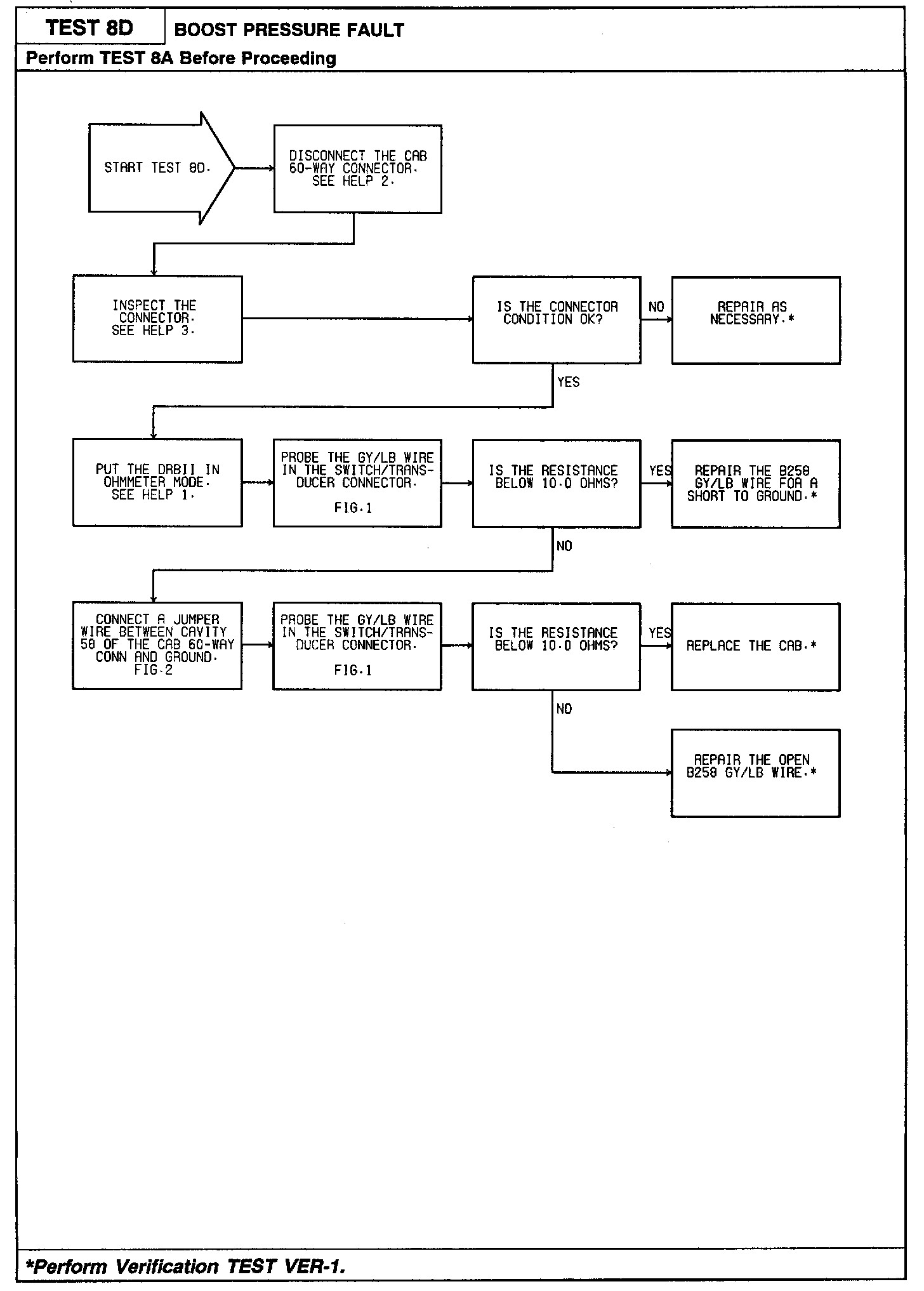

Fig. 60 Test 8D--Boost Pressure Fault:
