Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Antilock Brakes / Traction Control Systems >> Diagnostic Charts (By Test or Chart Number) >> Test 6 - System Relay Fault >> Test 6B

Test 6B

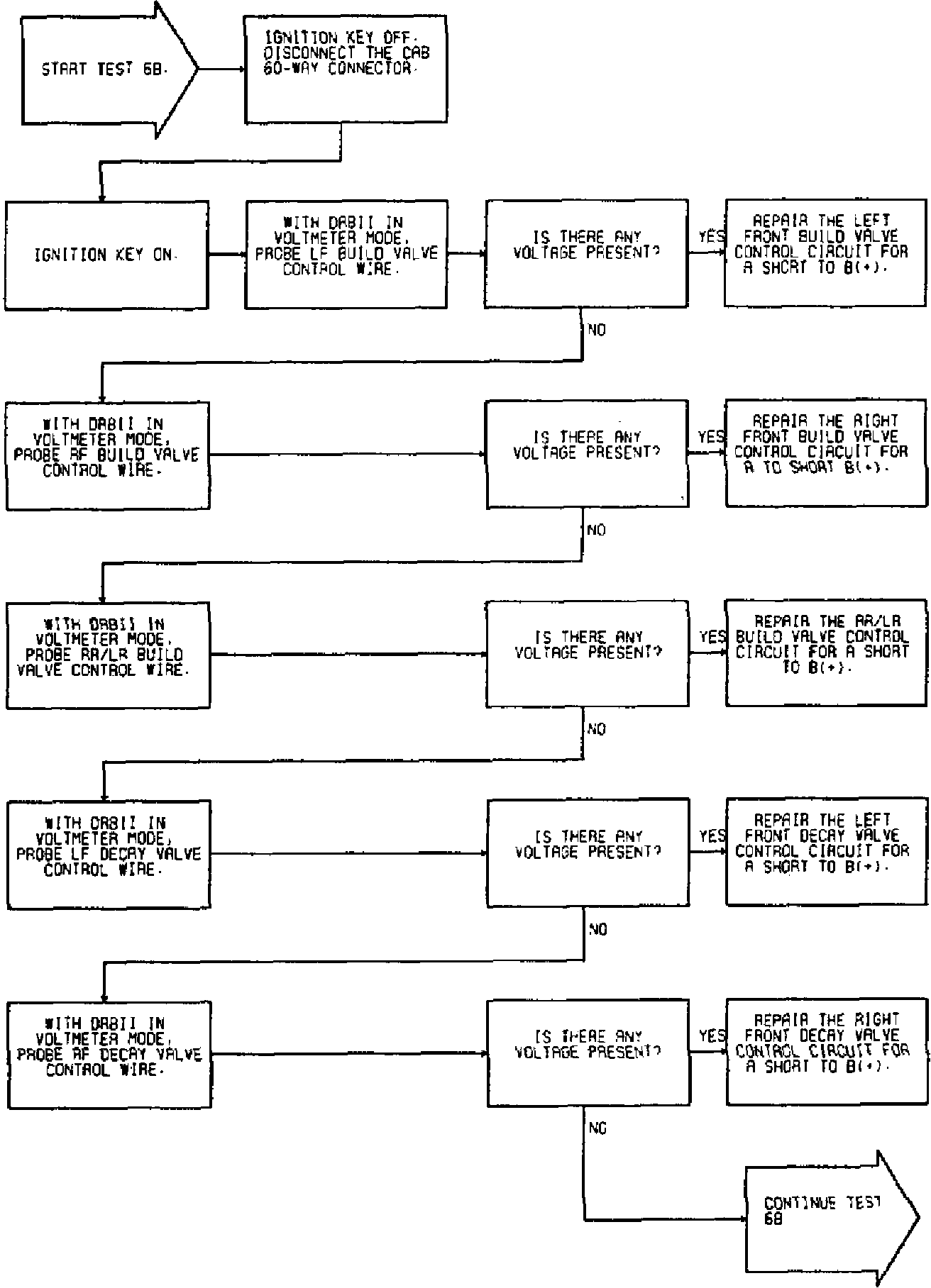

Fig. 110 Test 6B Part 1 Of 2:

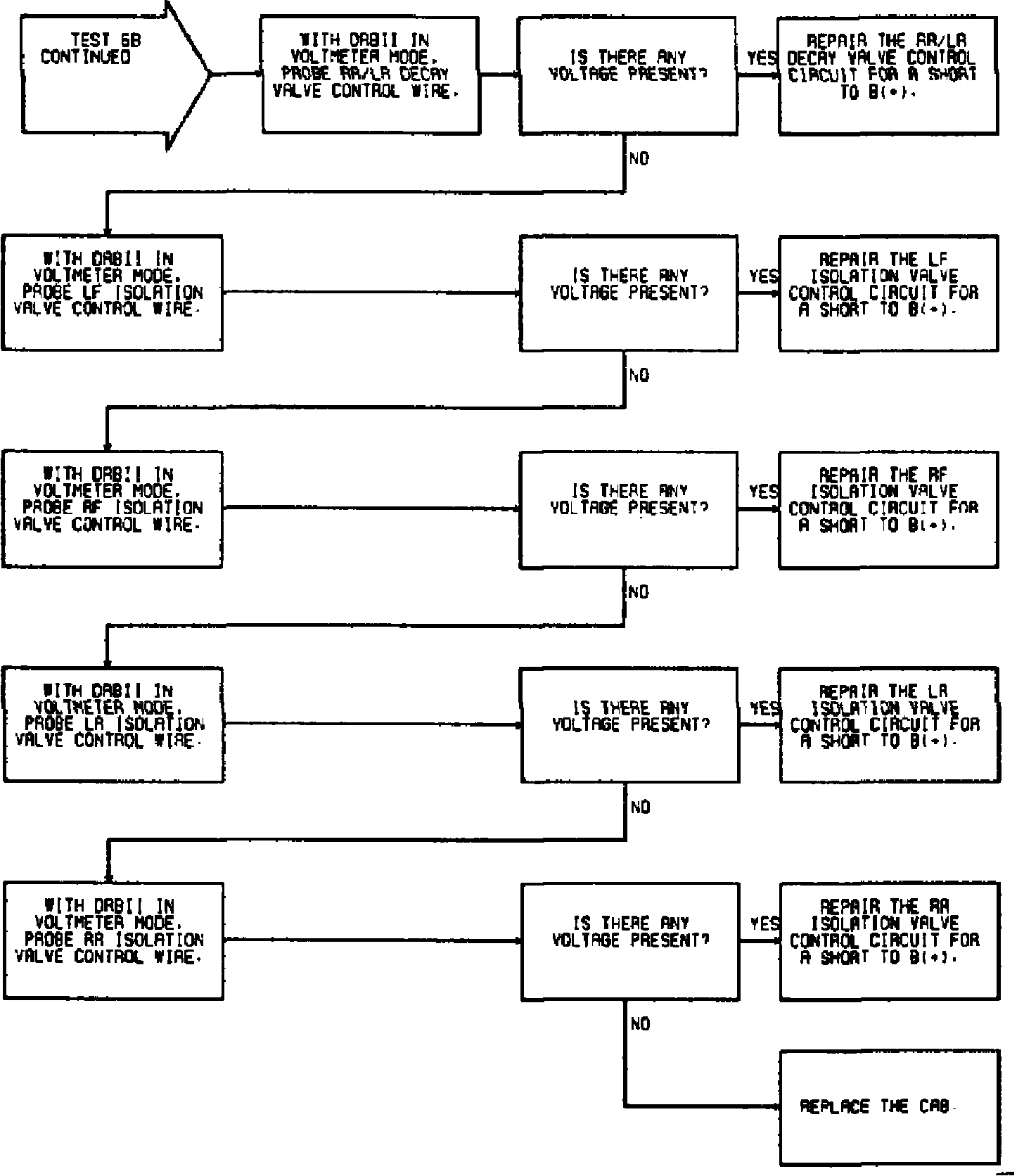

Fig. 110 Test 6B Part 2 Of 2:
