Test 21 - Hydraulic Pump/Motor Circuit Test
>>
Test 21D
Test 21D

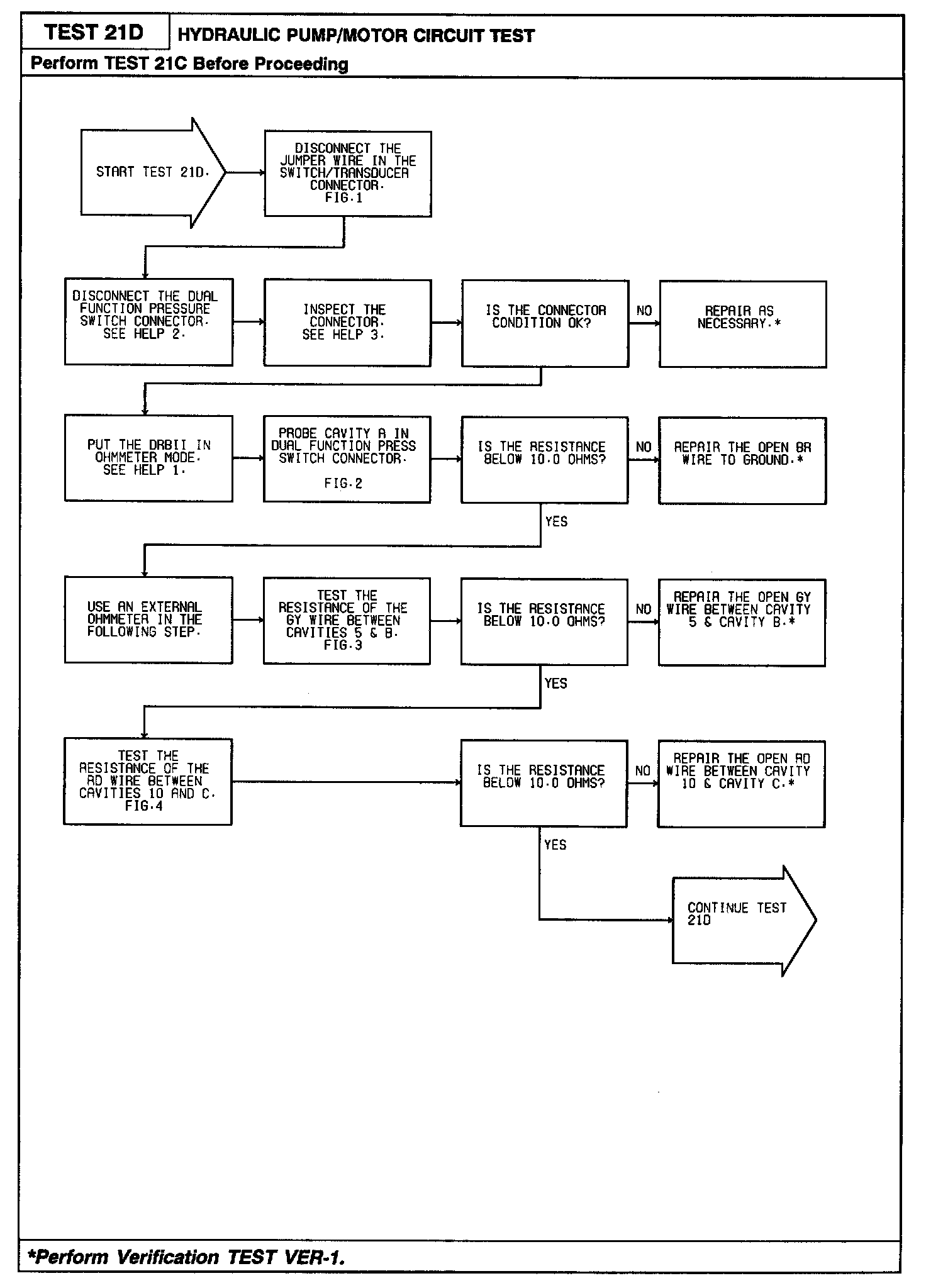

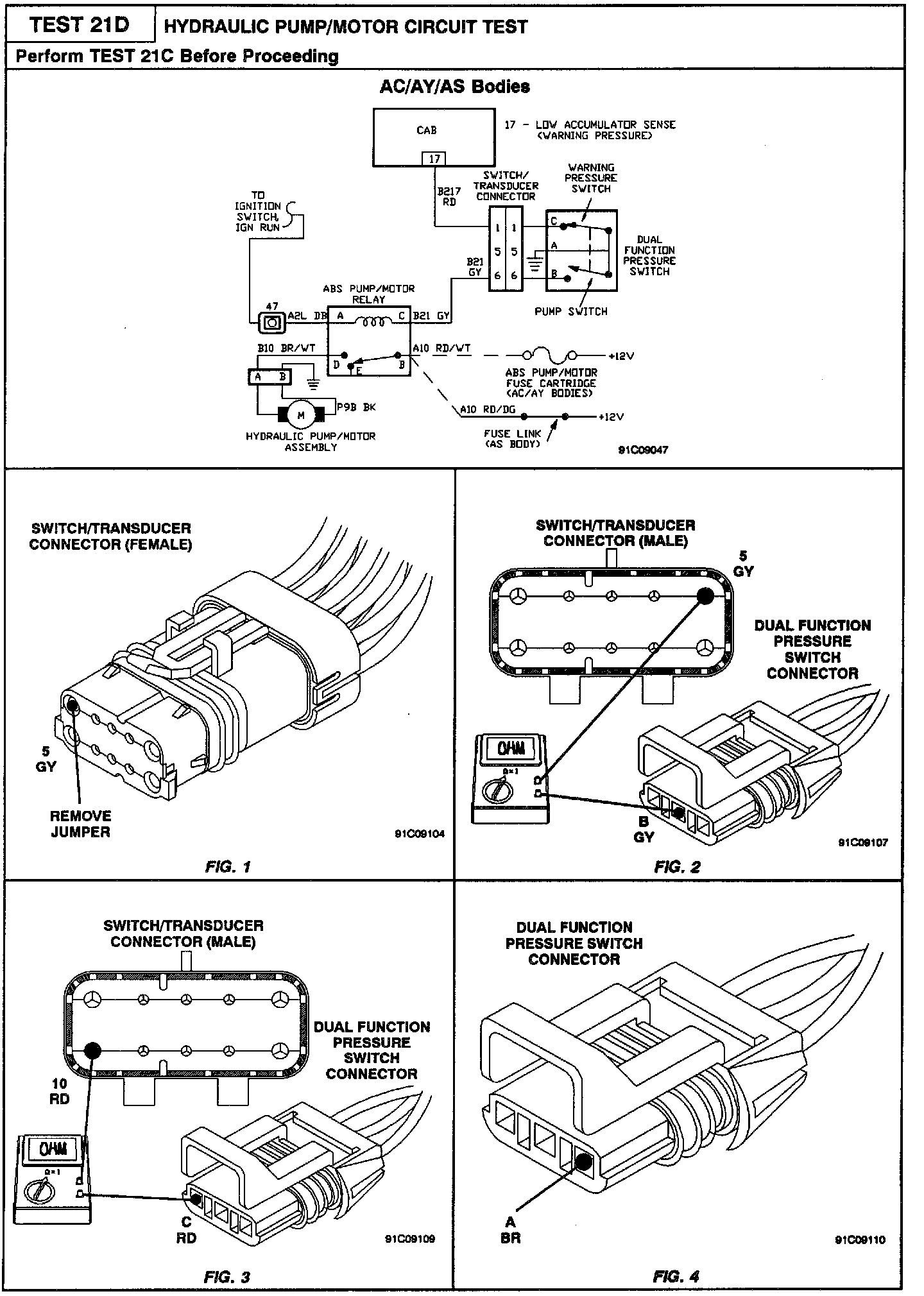

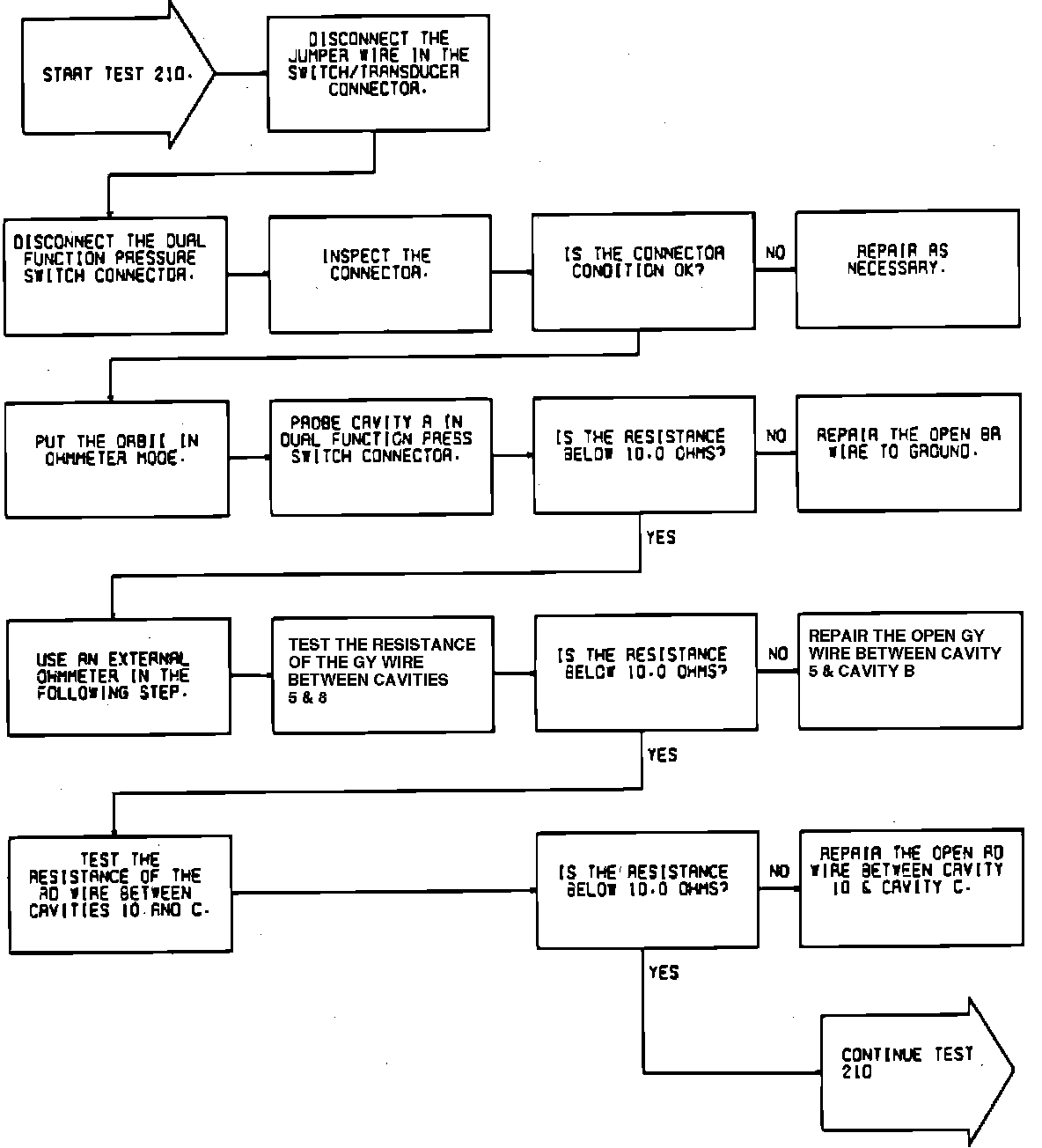

Fig. 124 Test 21D--Hydraulic Pump/Motor Circuit Test (Part 1 Of 2):

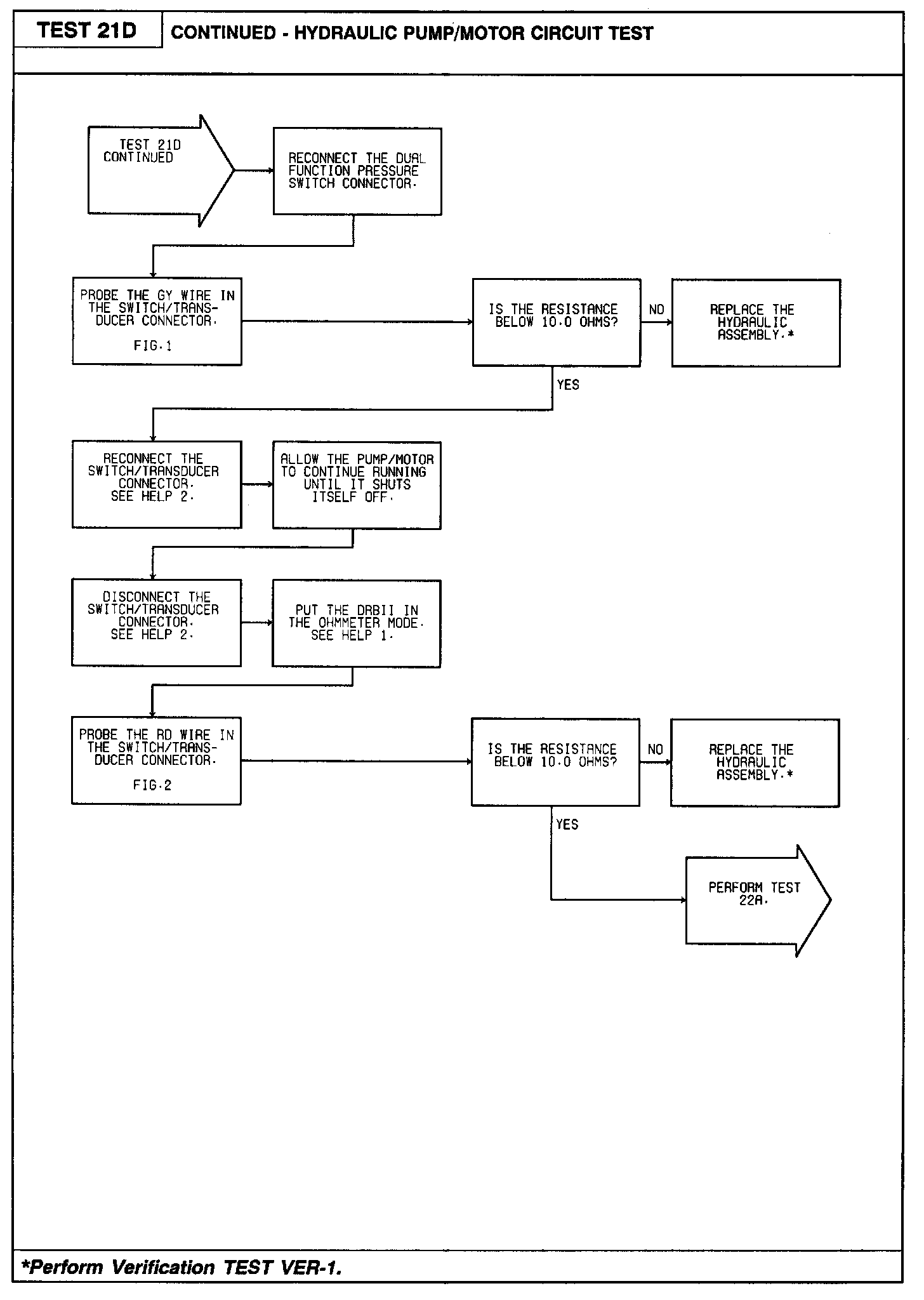

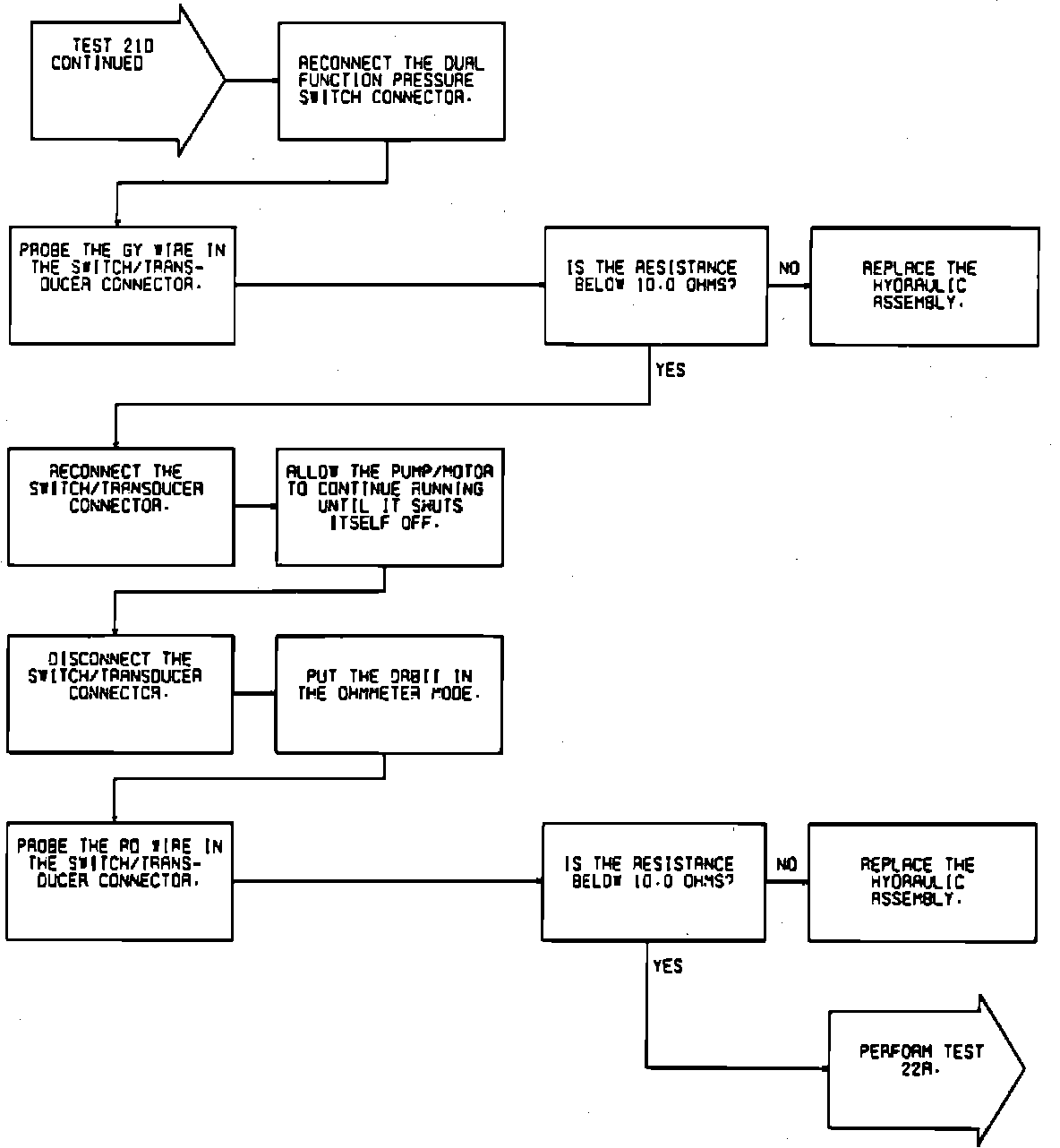

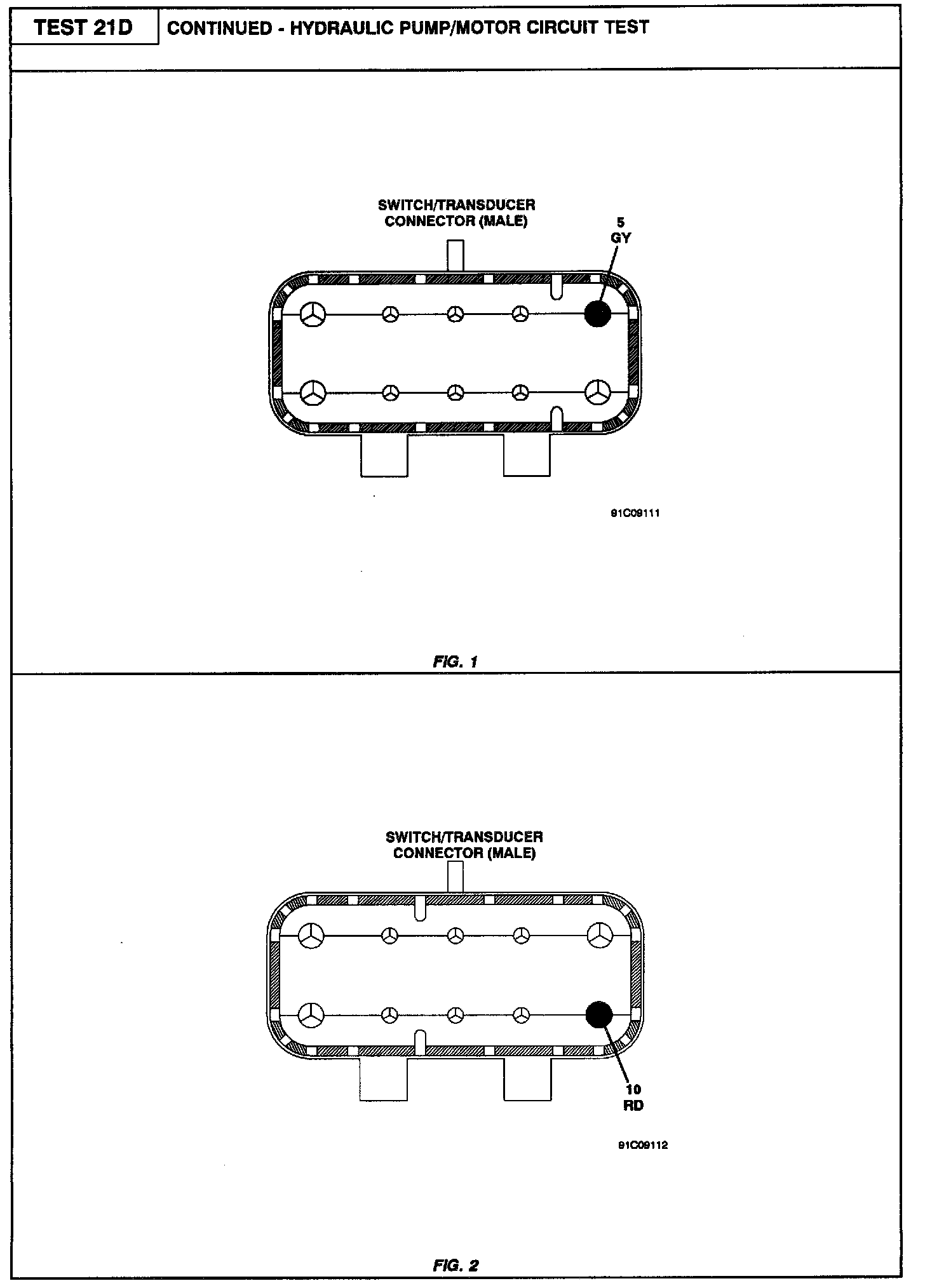

Fig. 124 Test 21D--Hydraulic Pump/Motor Circuit Test (Part 2 Of 2):
