Test 21A

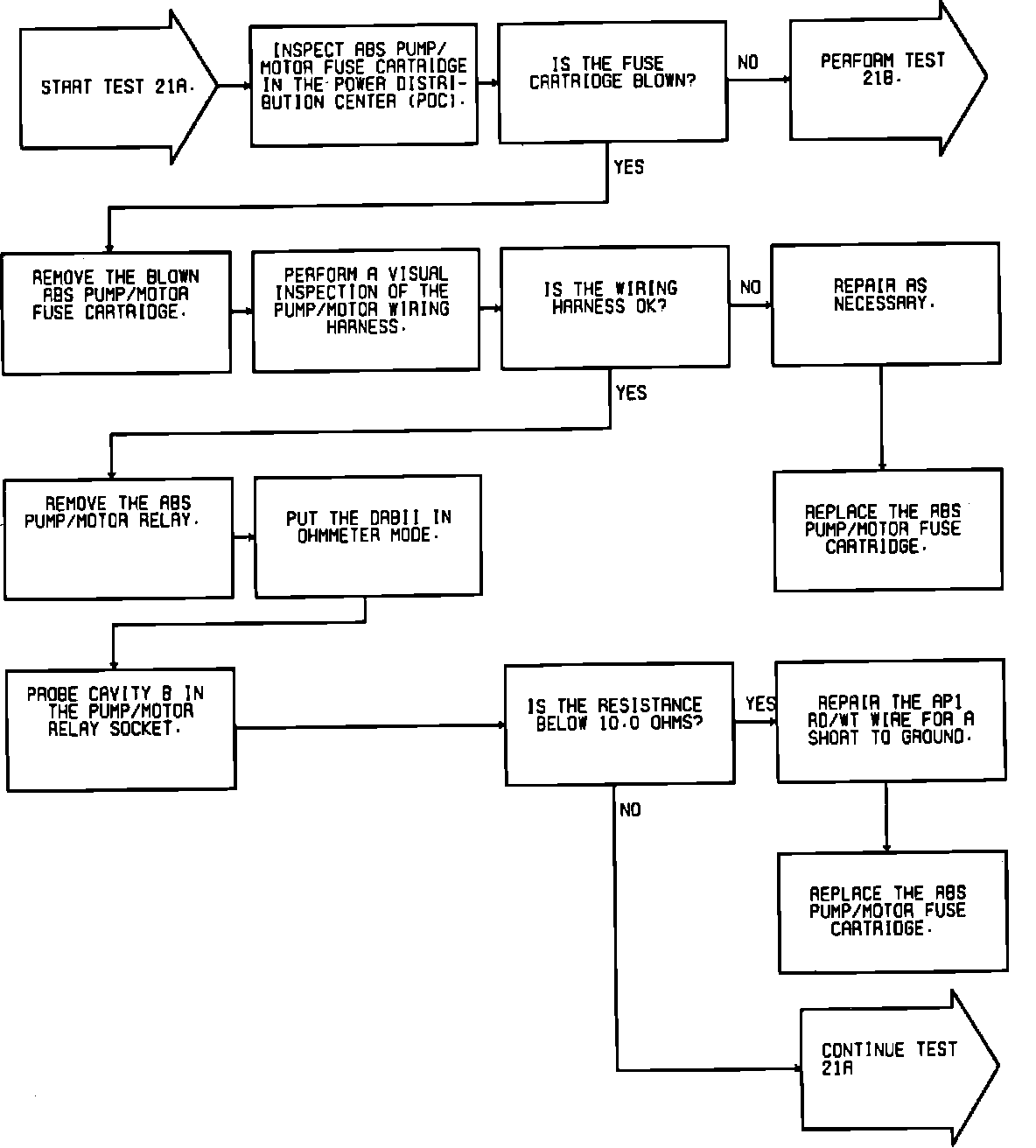

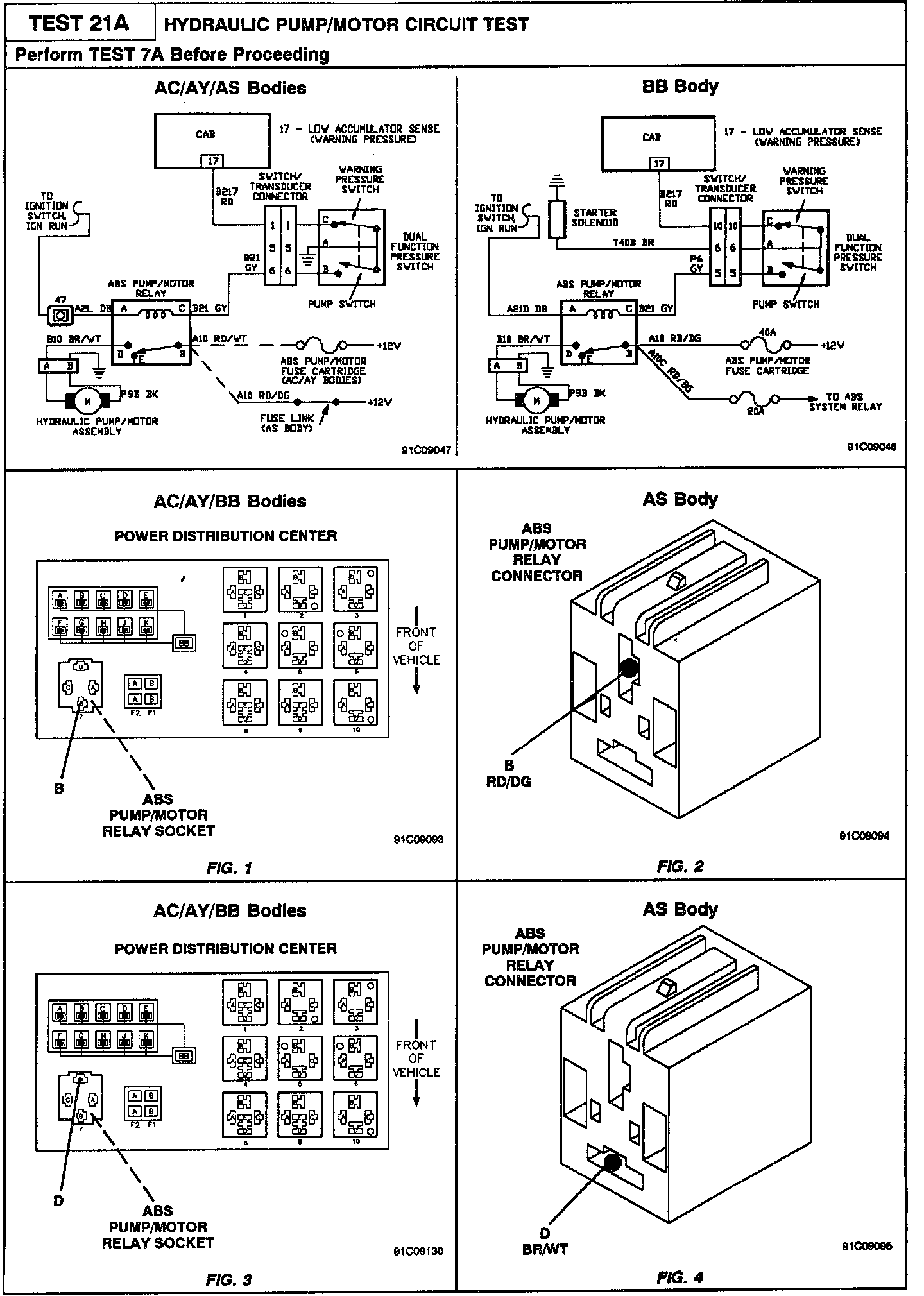

Fig. 118 Test 21A--Hydraulic Pump/Motor Circuit Test (Part 1 Of 3):

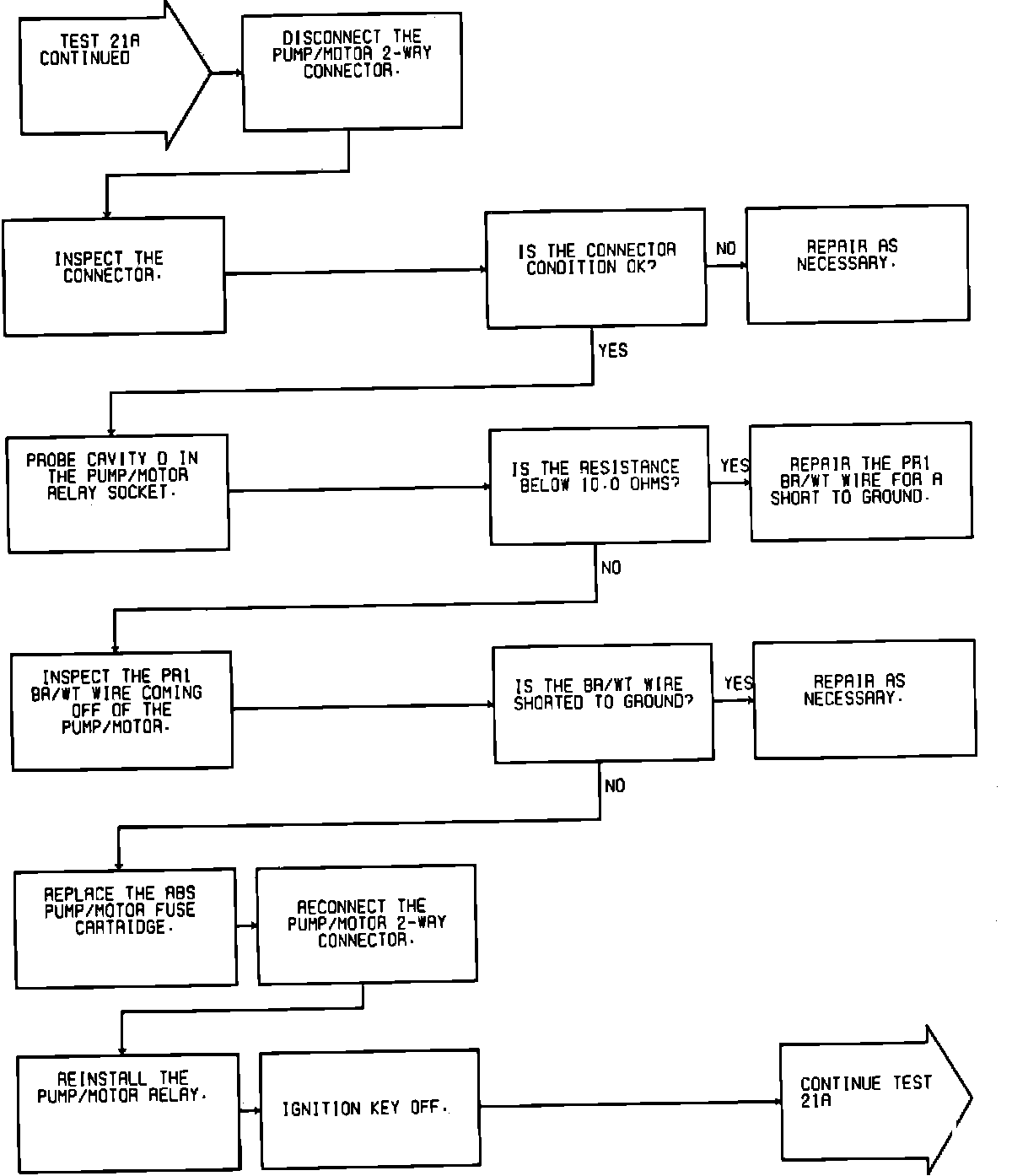

Fig. 118 Test 21A--Hydraulic Pump/Motor Circuit Test (Part 2 Of 3):

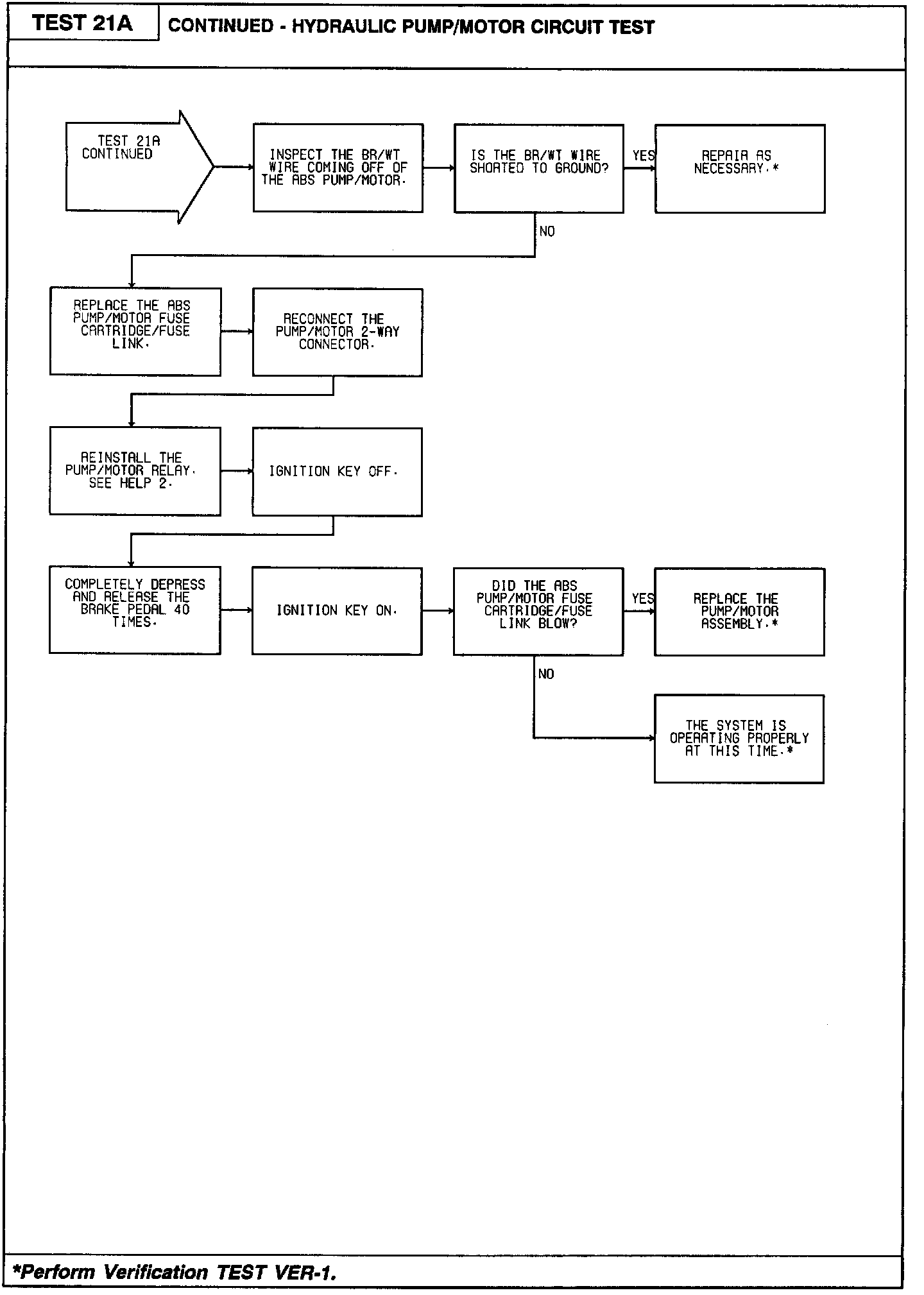

Fig. 118 Test 21A--Hydraulic Pump/Motor Circuit Test (Part 3 Of 3):

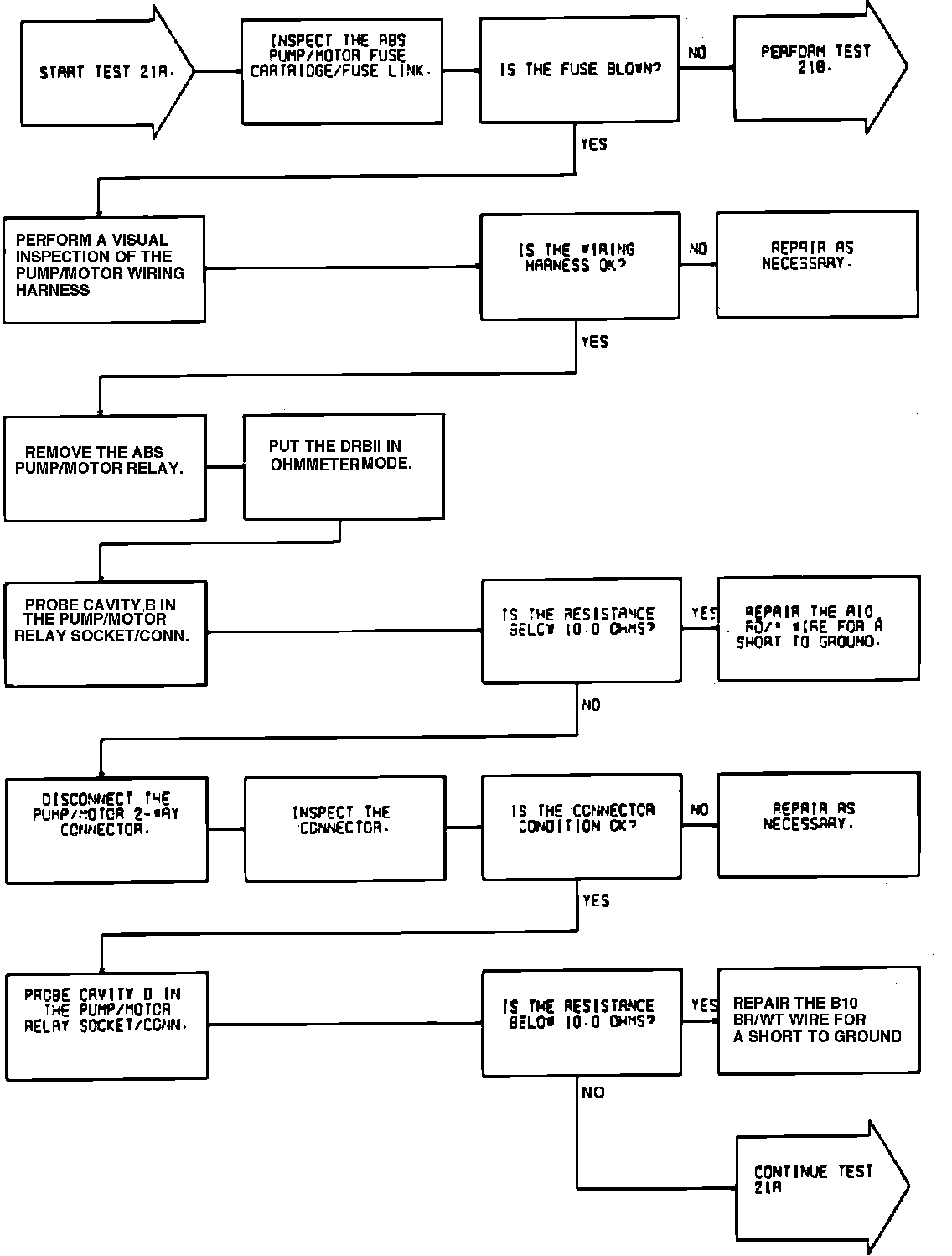

Fig. 119 Test 21A--Hydraulic Pump/Motor Circuit Test (Part 1 Of 2):

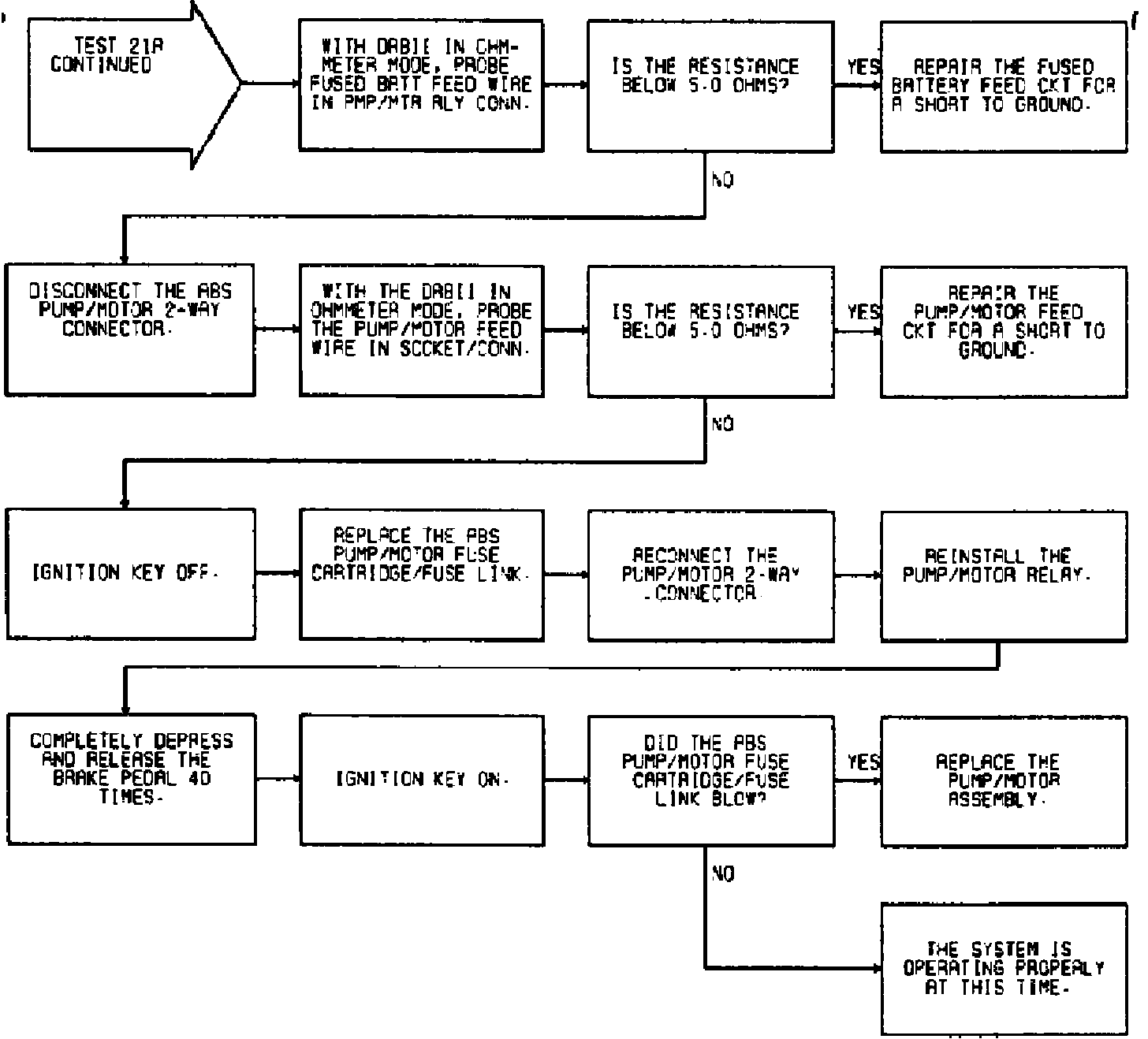

Fig. 119 Test 21A--Hydraulic Pump/Motor Circuit Test (Part 2 Of 2):

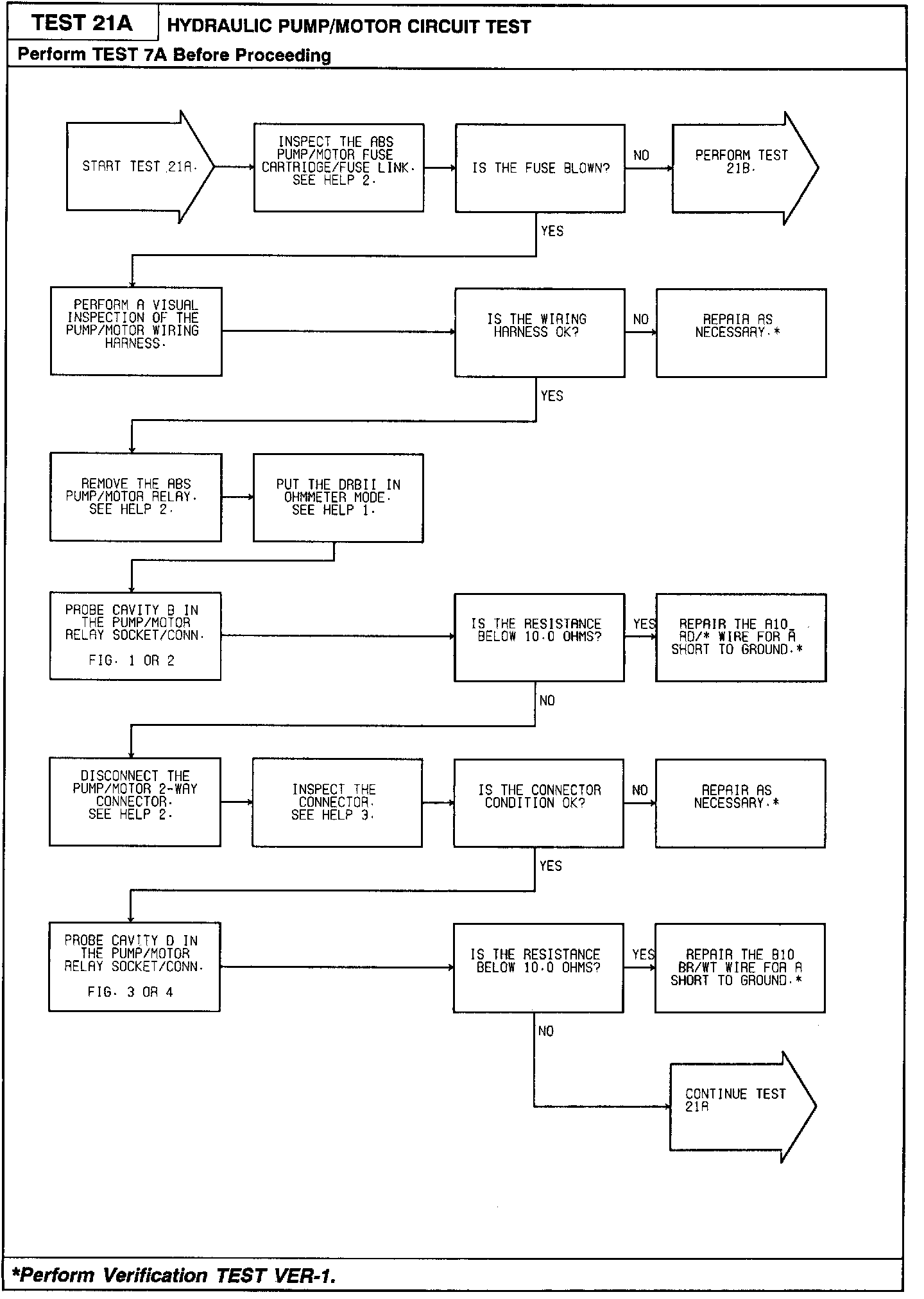

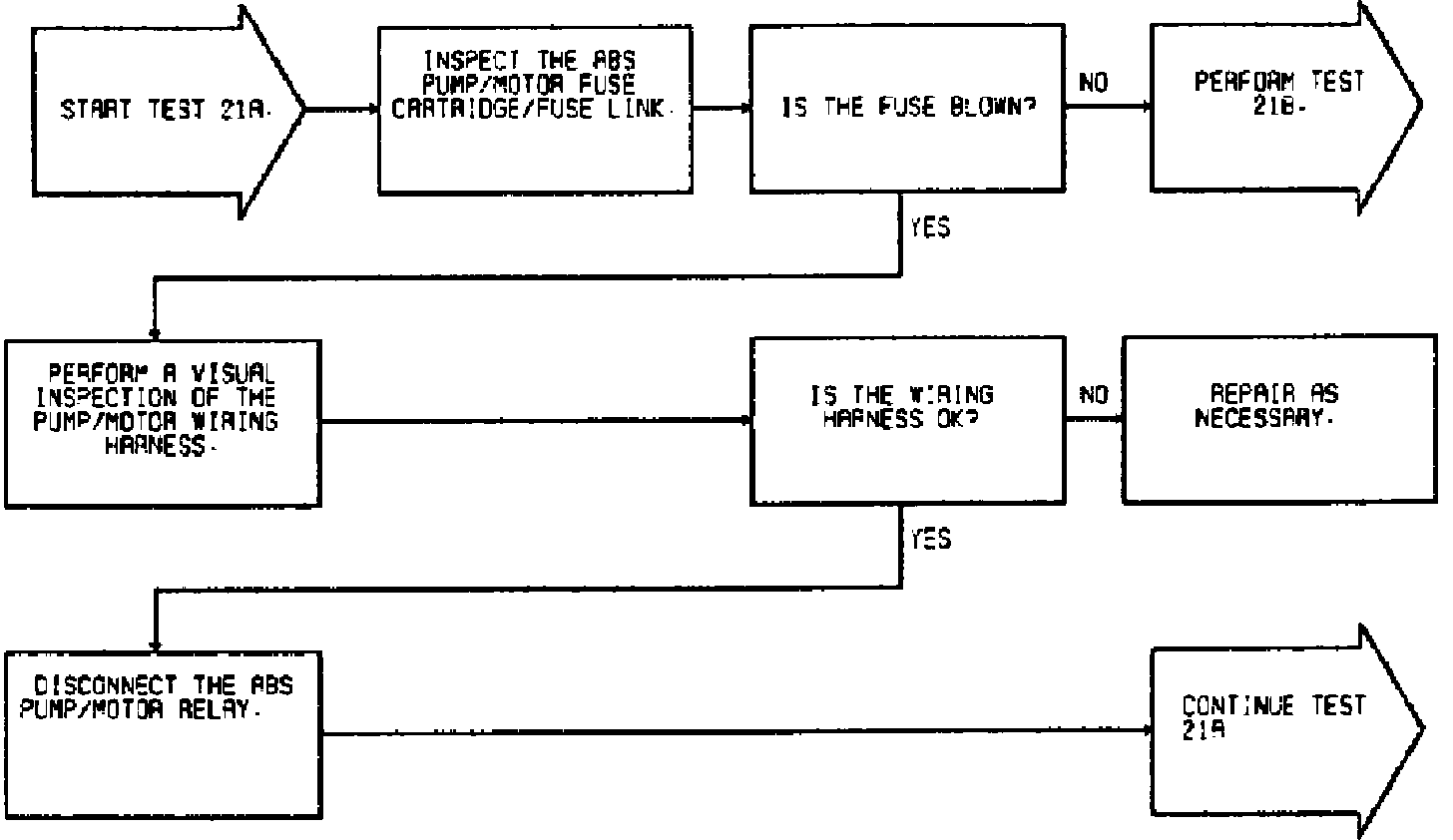

Fig. 143 Test 21A Part 1 Of 2:

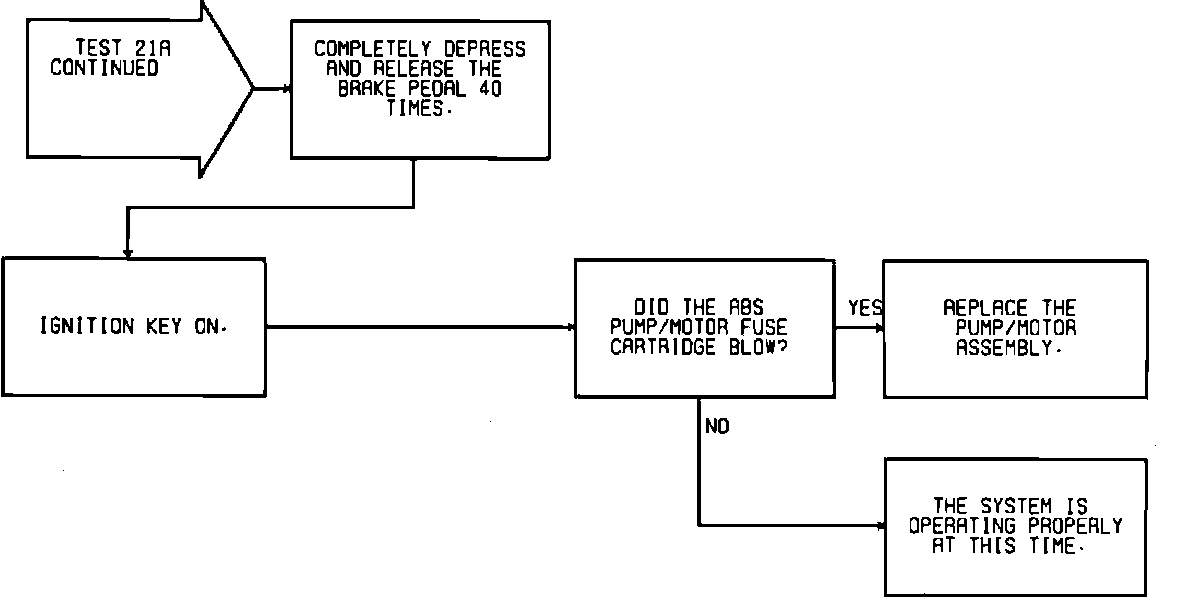

Fig. 143 Test 21A Part 2 Of 2:
