Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 9C Front Sensor Short Code

9C Front Sensor Short Code

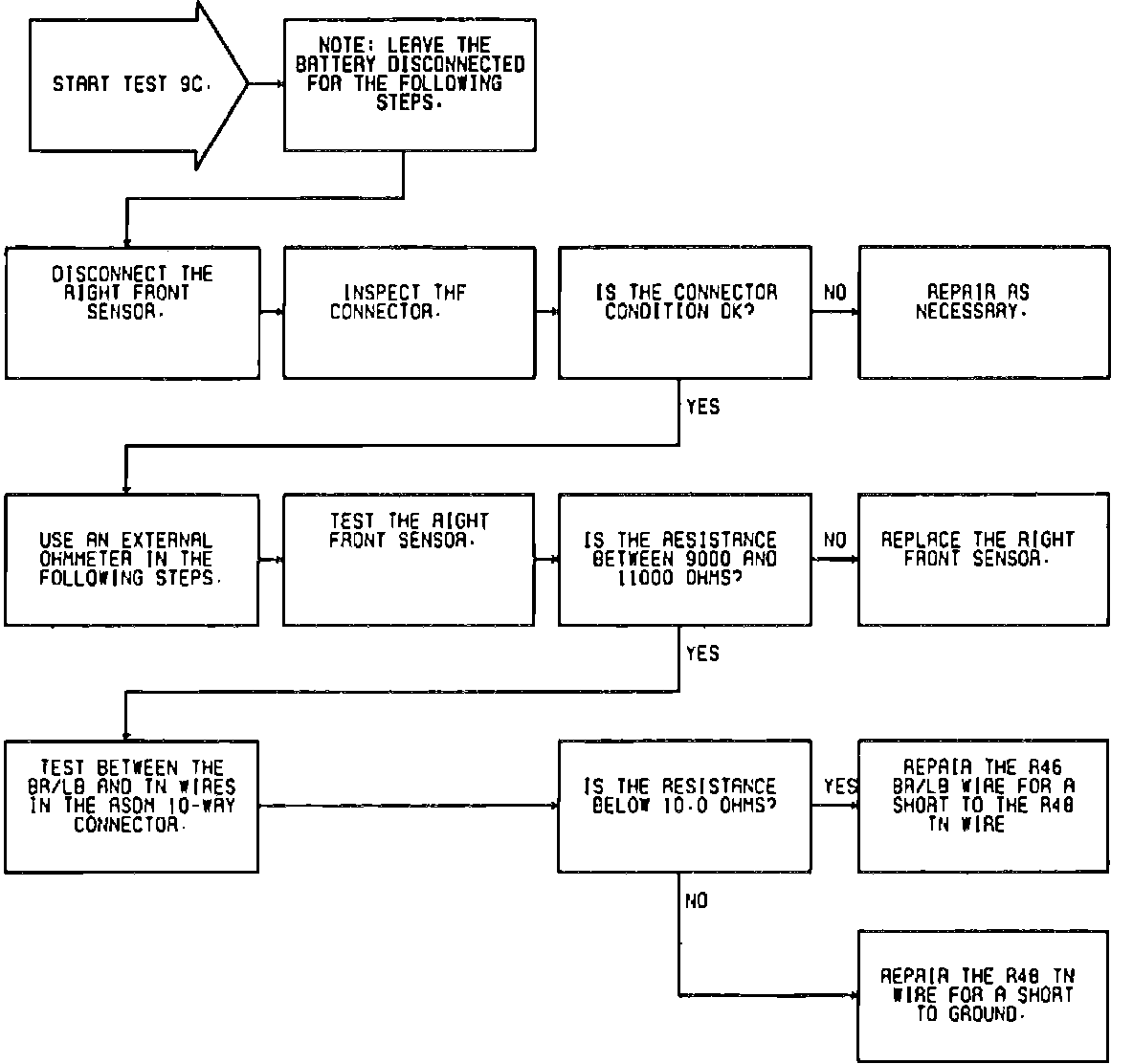

Test 9C, 1 Of 2:



Test 9C, 2 Of 2:
