Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 9B Front Sensor Short Code

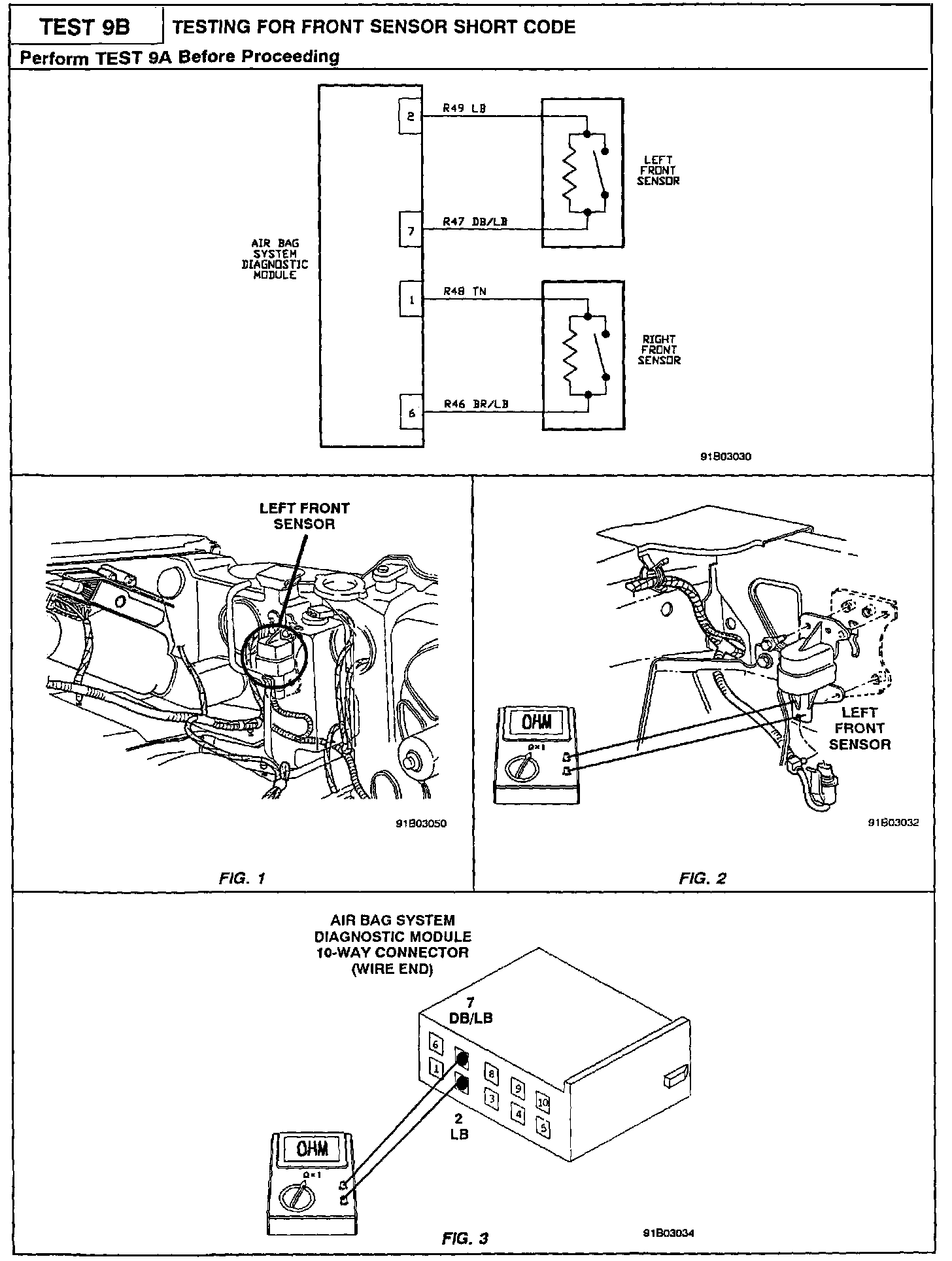

9B Front Sensor Short Code

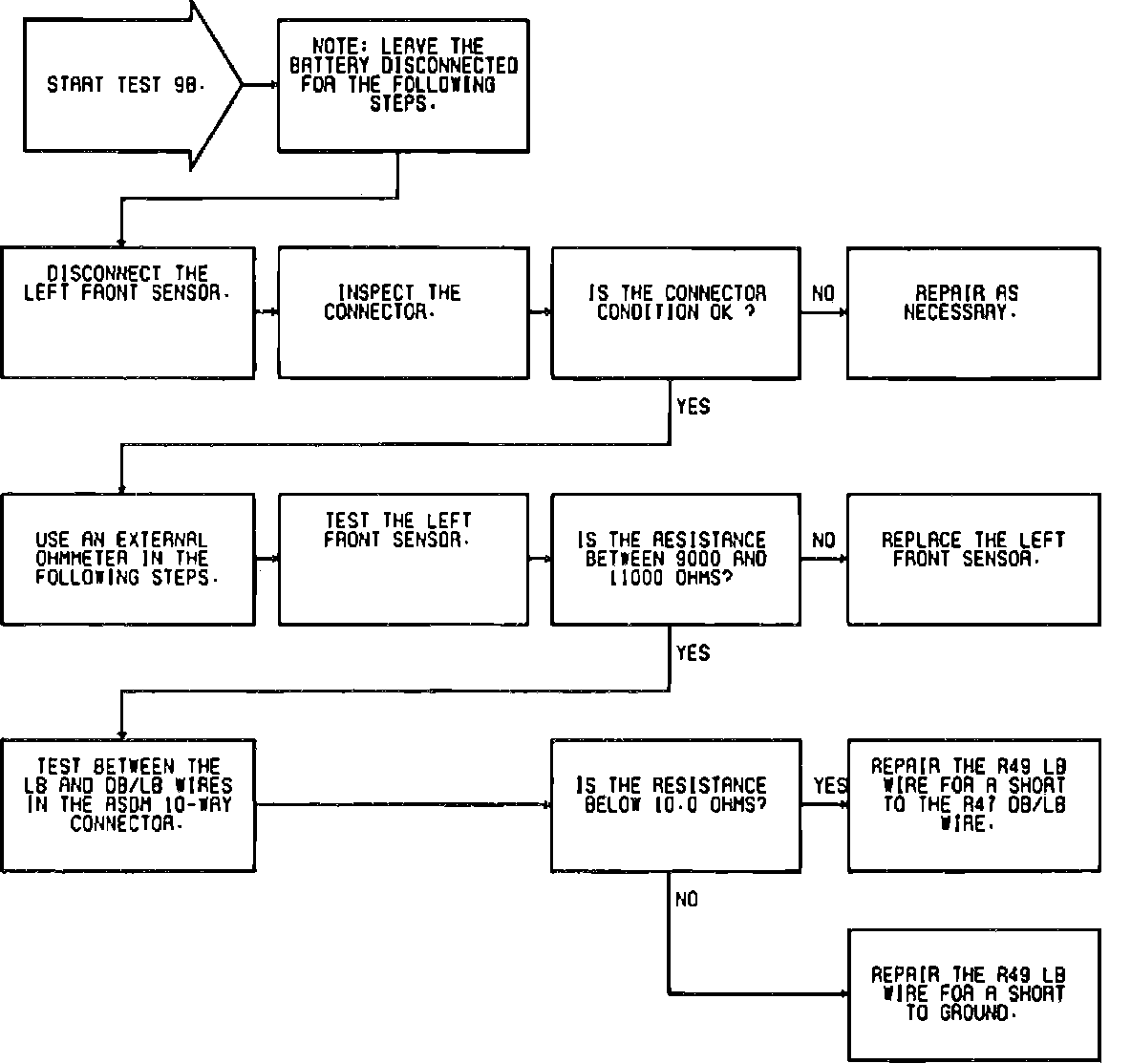

Test 9B, 1 Of 2:



Test 9B, 2 Of 2:
