9A Front Sensor Short Code

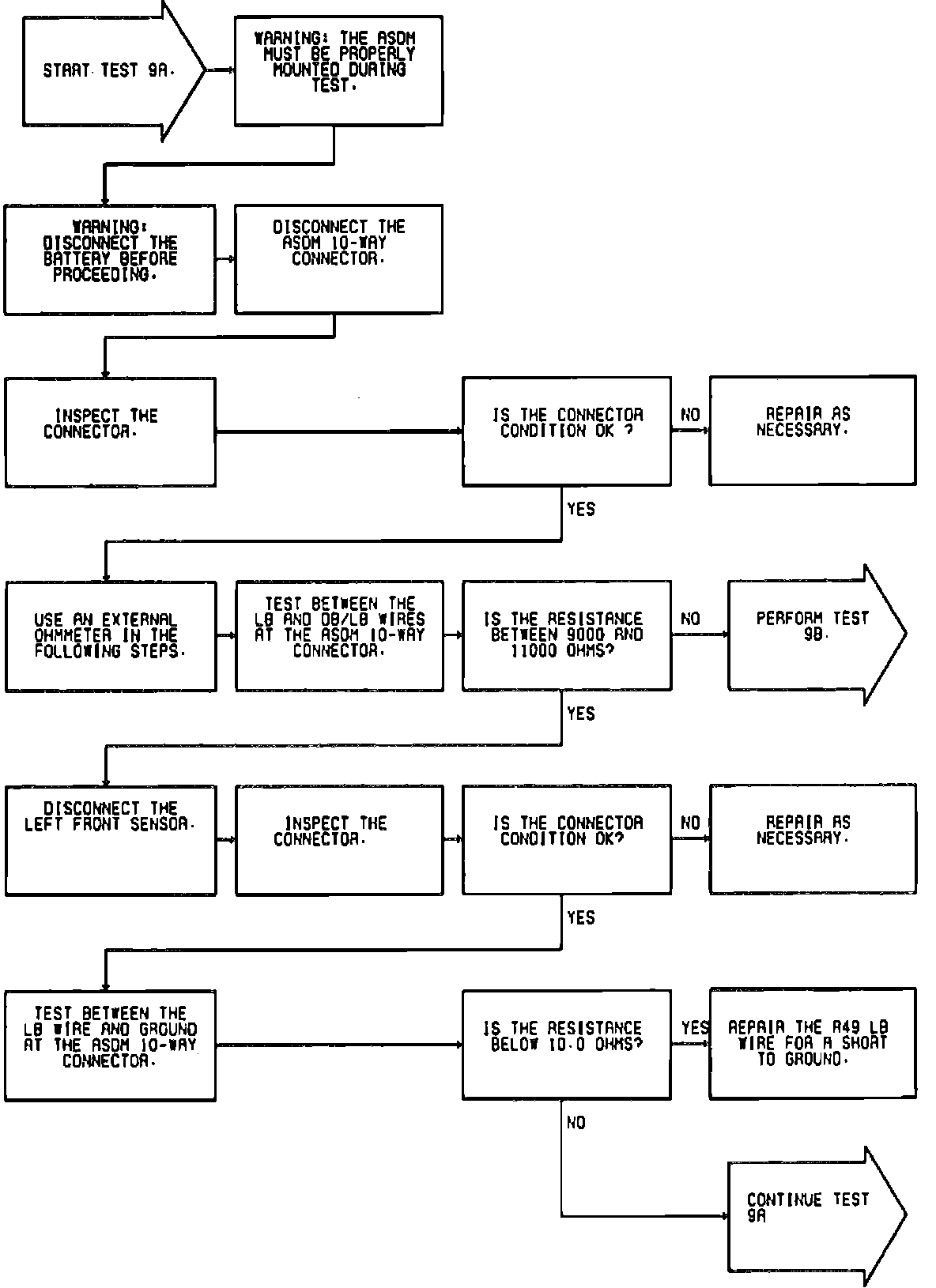

Test 9A, 1 Of 6:

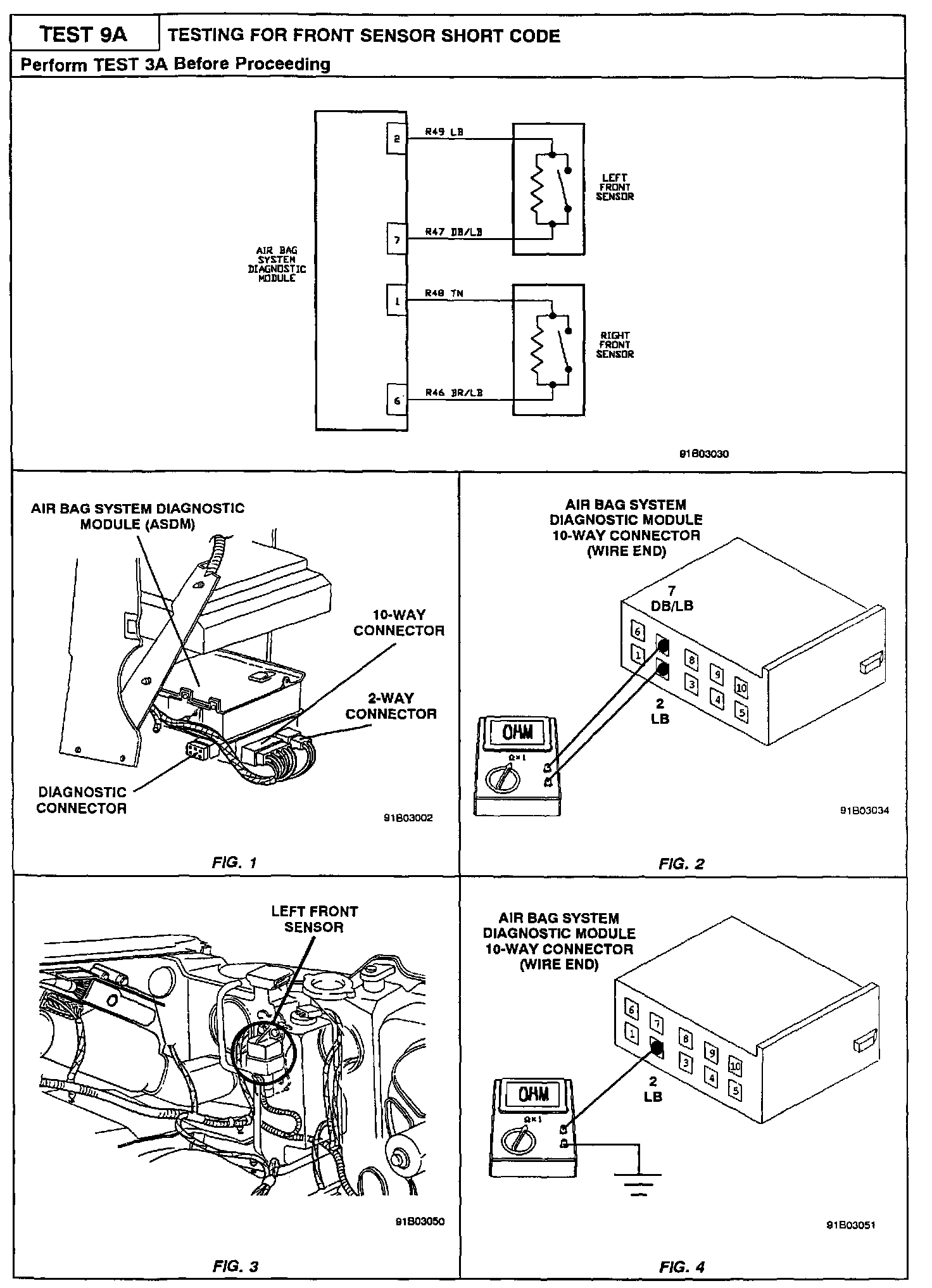

Test 9A, 2 Of 6:

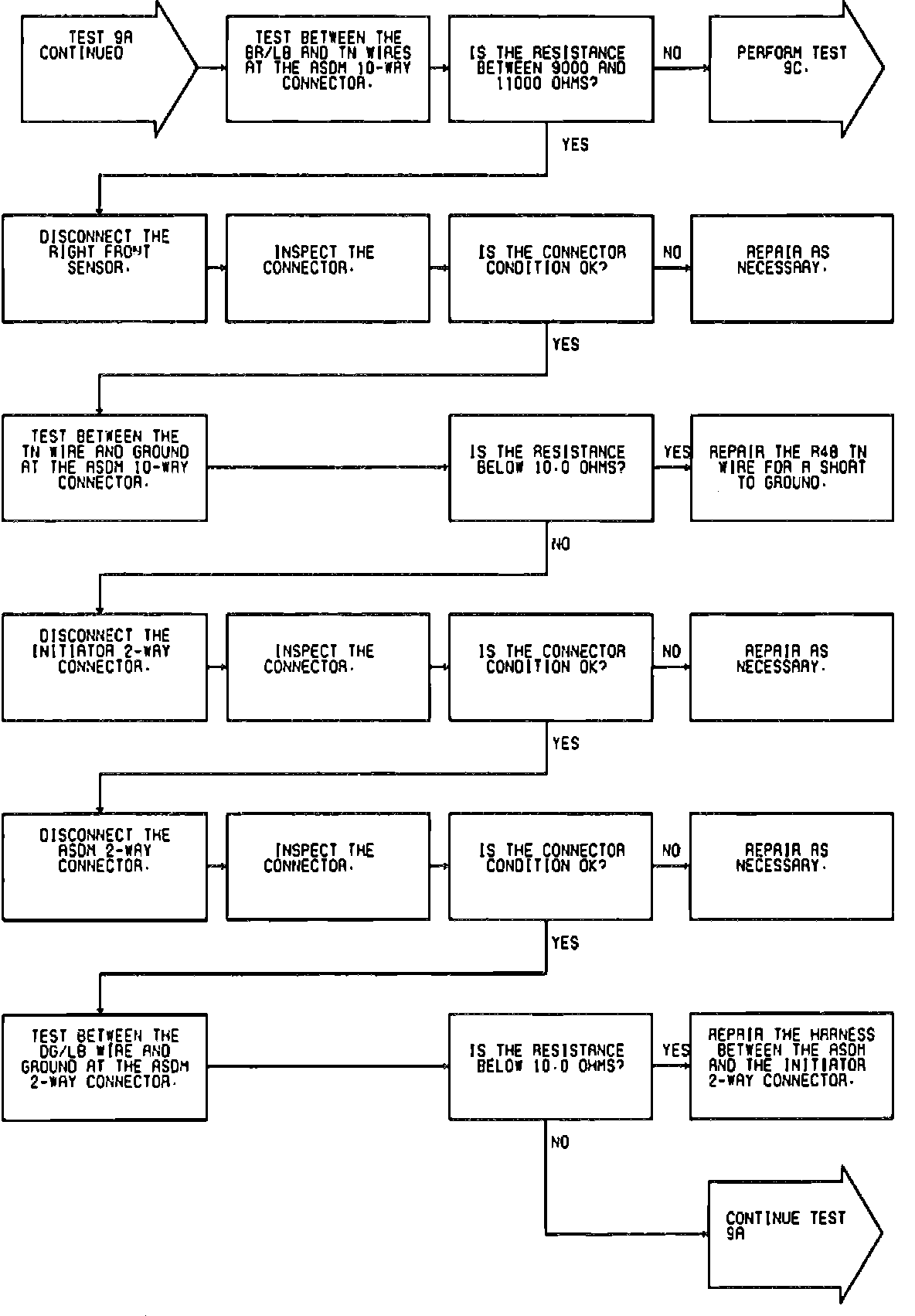

Test 9A, 3 Of 6:

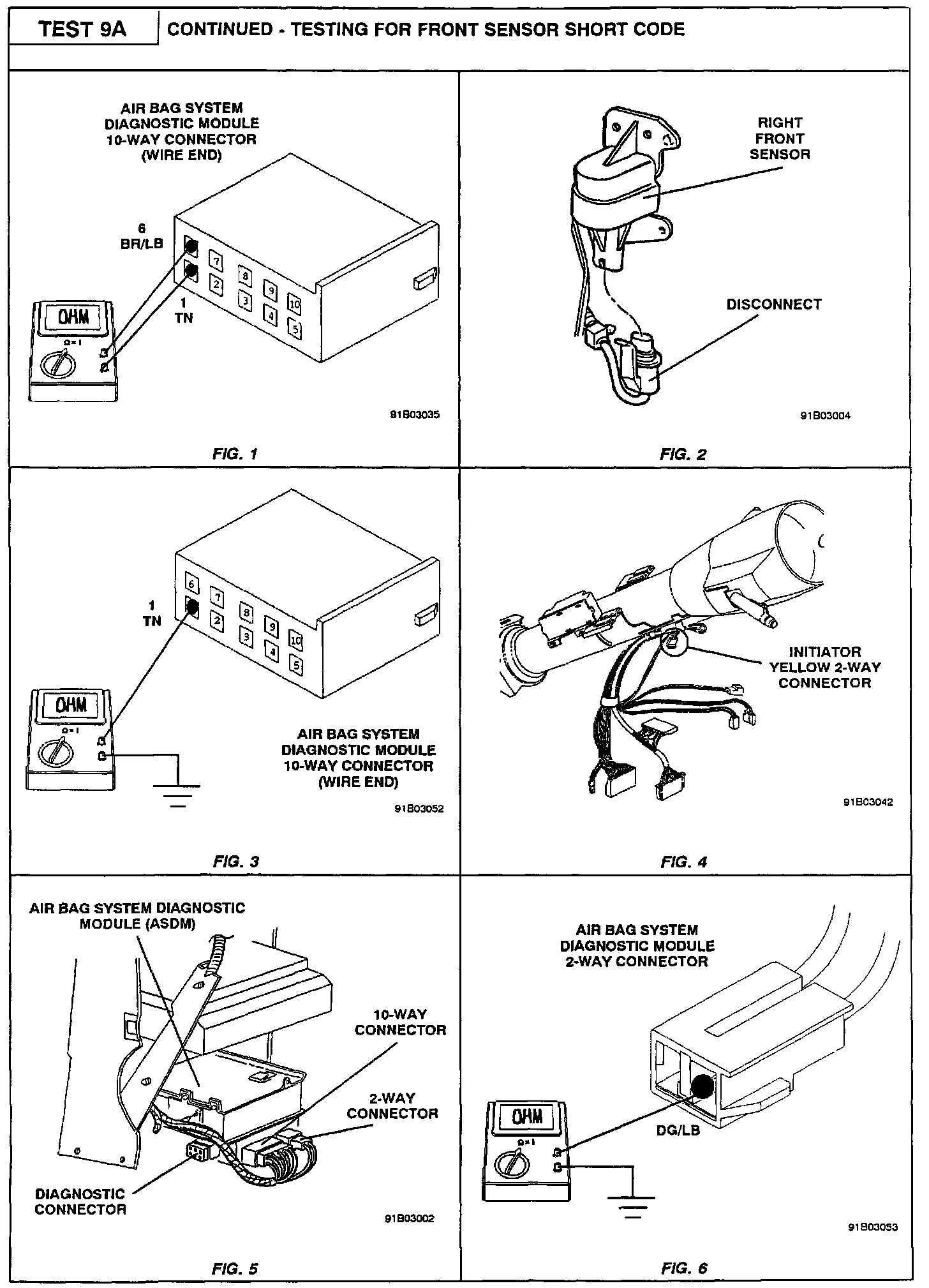

Test 9A, 4 Of 6:

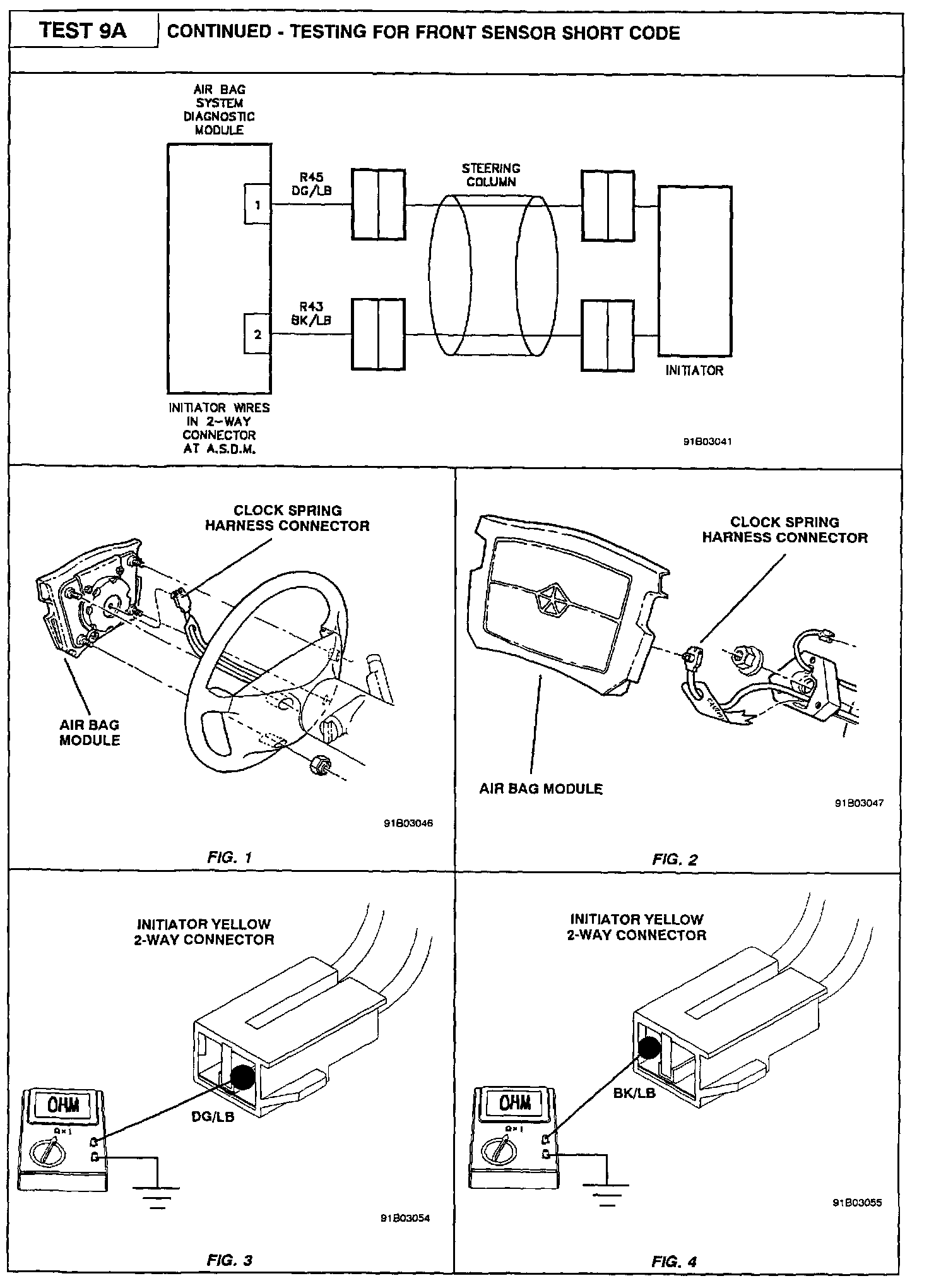

Test 9A, 5 Of 6:

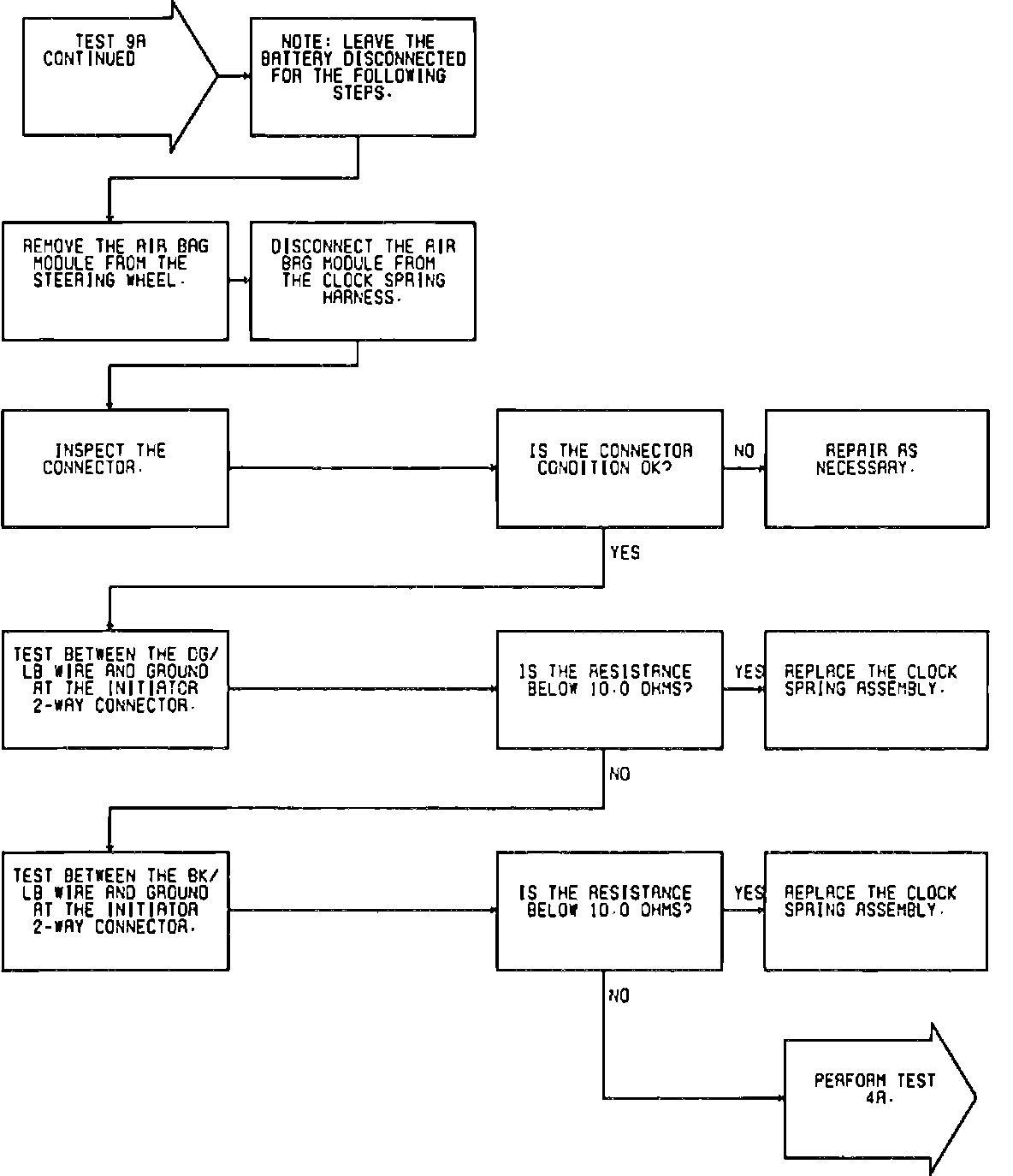

Test 9A, 6 Of 6:
