6A Squib Open Circuit

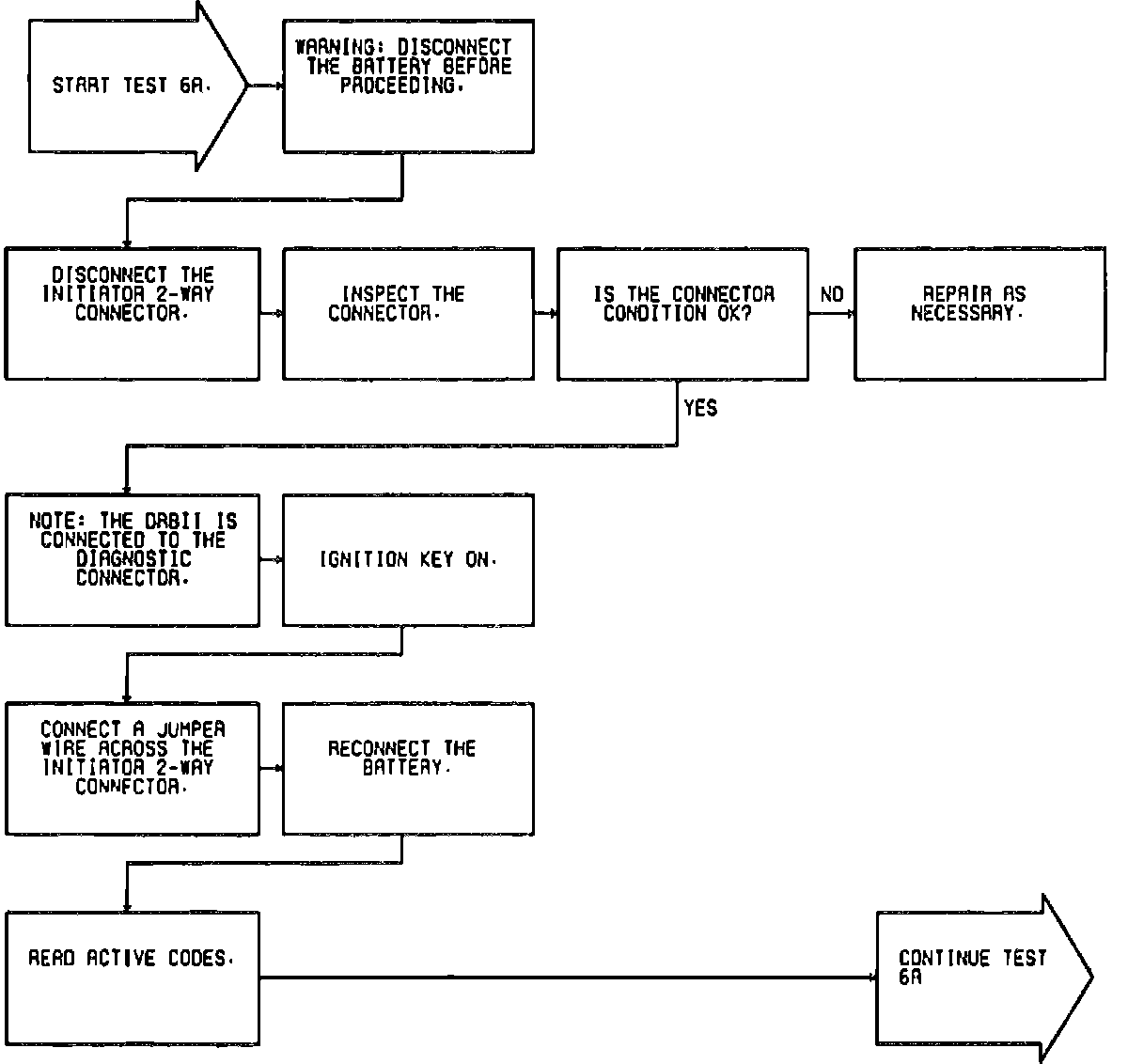

Test 6A, 1 Of 6:

Test 6A, 2 Of 6:

Test 6A, 3 Of 6:

Test 6A, 4 Of 6:

Test 6A, 5 Of 6:

Test 6A, 6 Of 6:
