5A Front Sensors Open Code

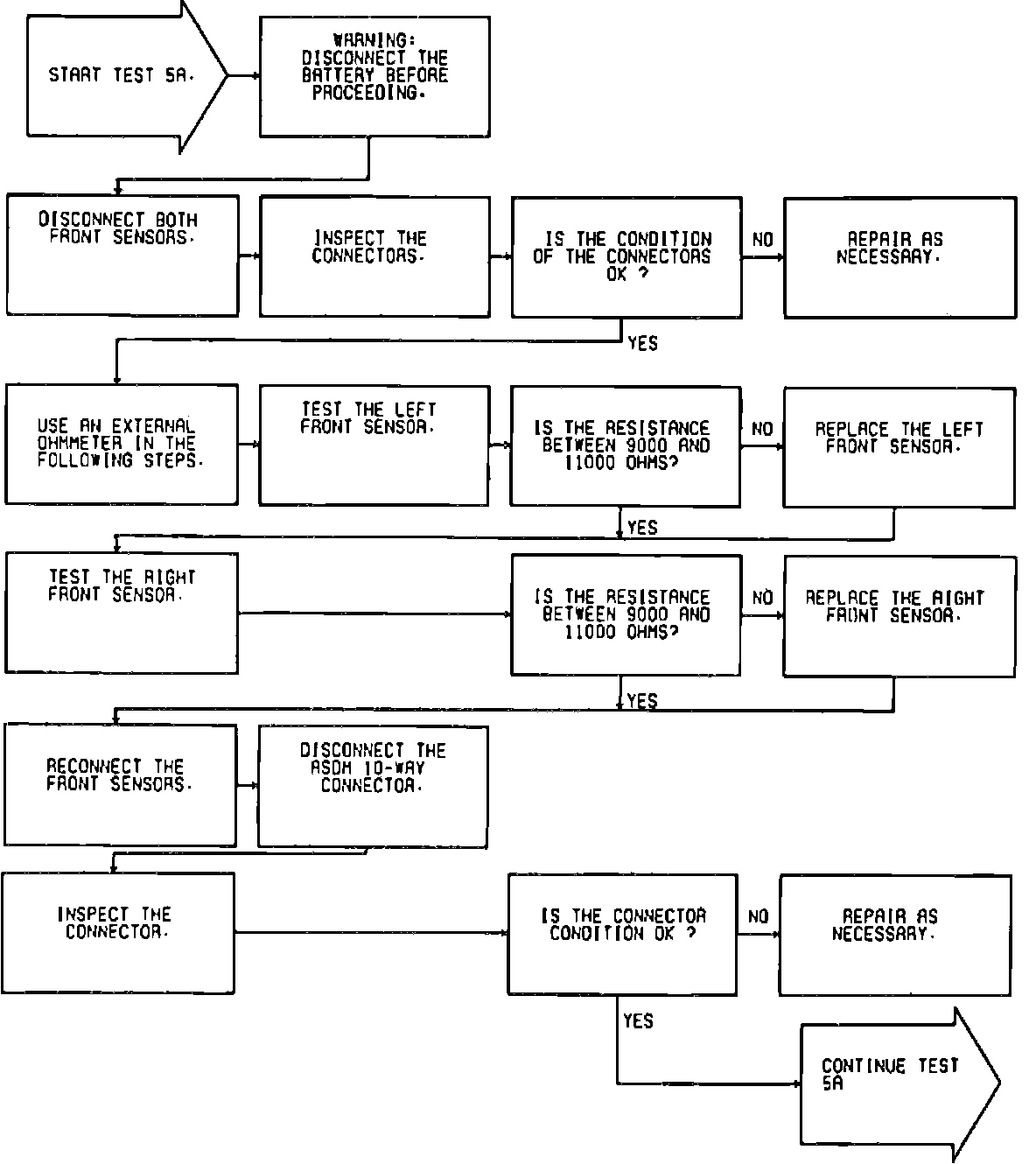

Test 5A, 1 Of 5:

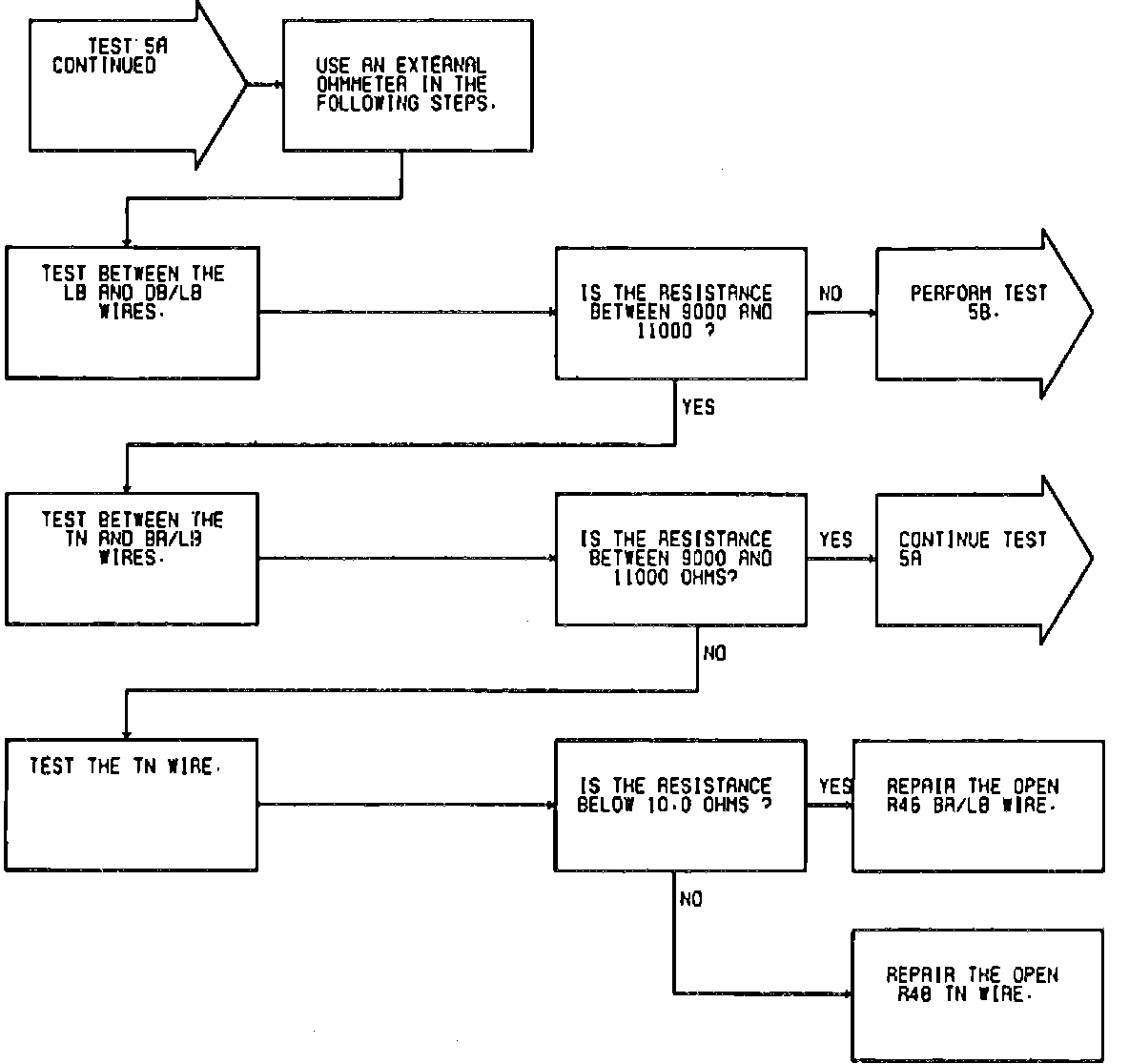

Test 5A, 2 Of 5:



Test 5A, 3 Of 5:

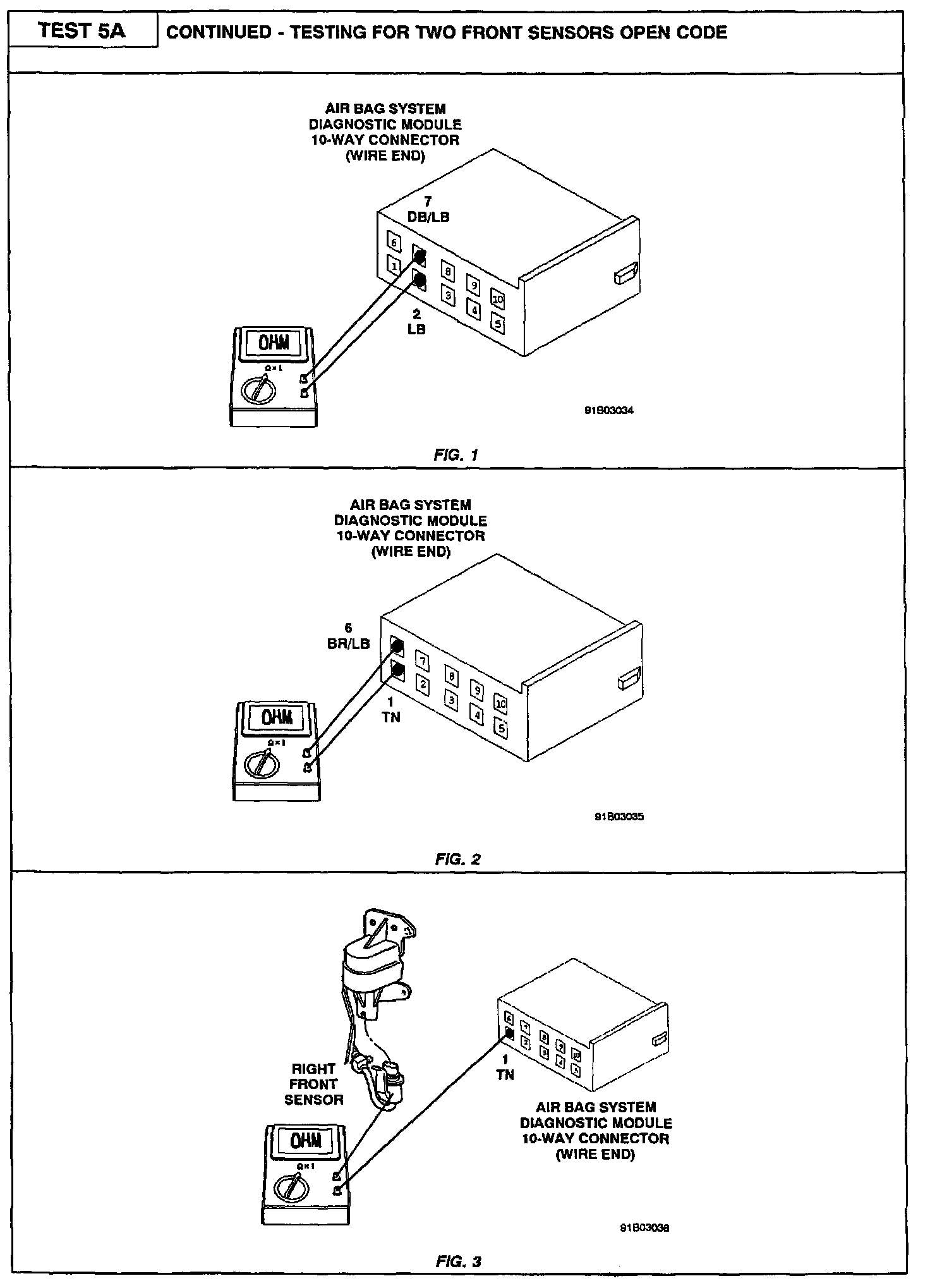

Test 5A, 4 Of 5:

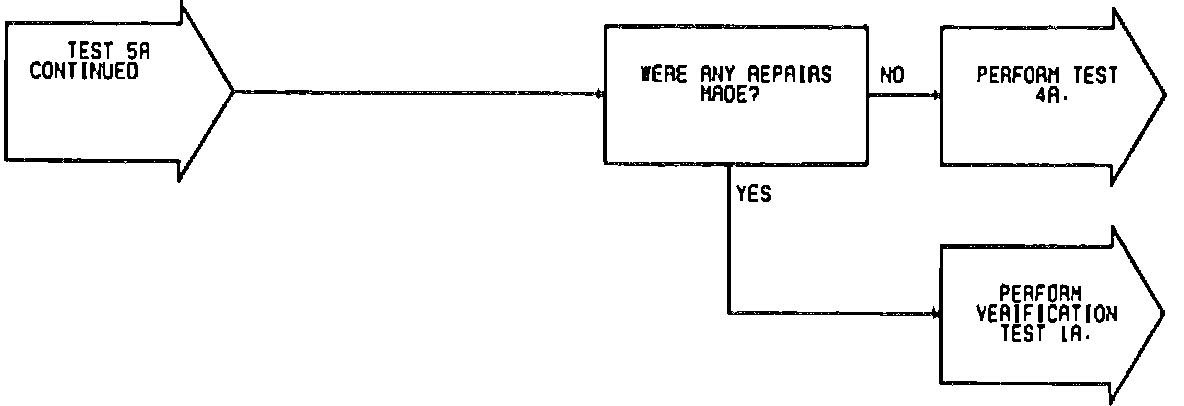

Test 5A, 5 Of 5:
