Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 1B System Function

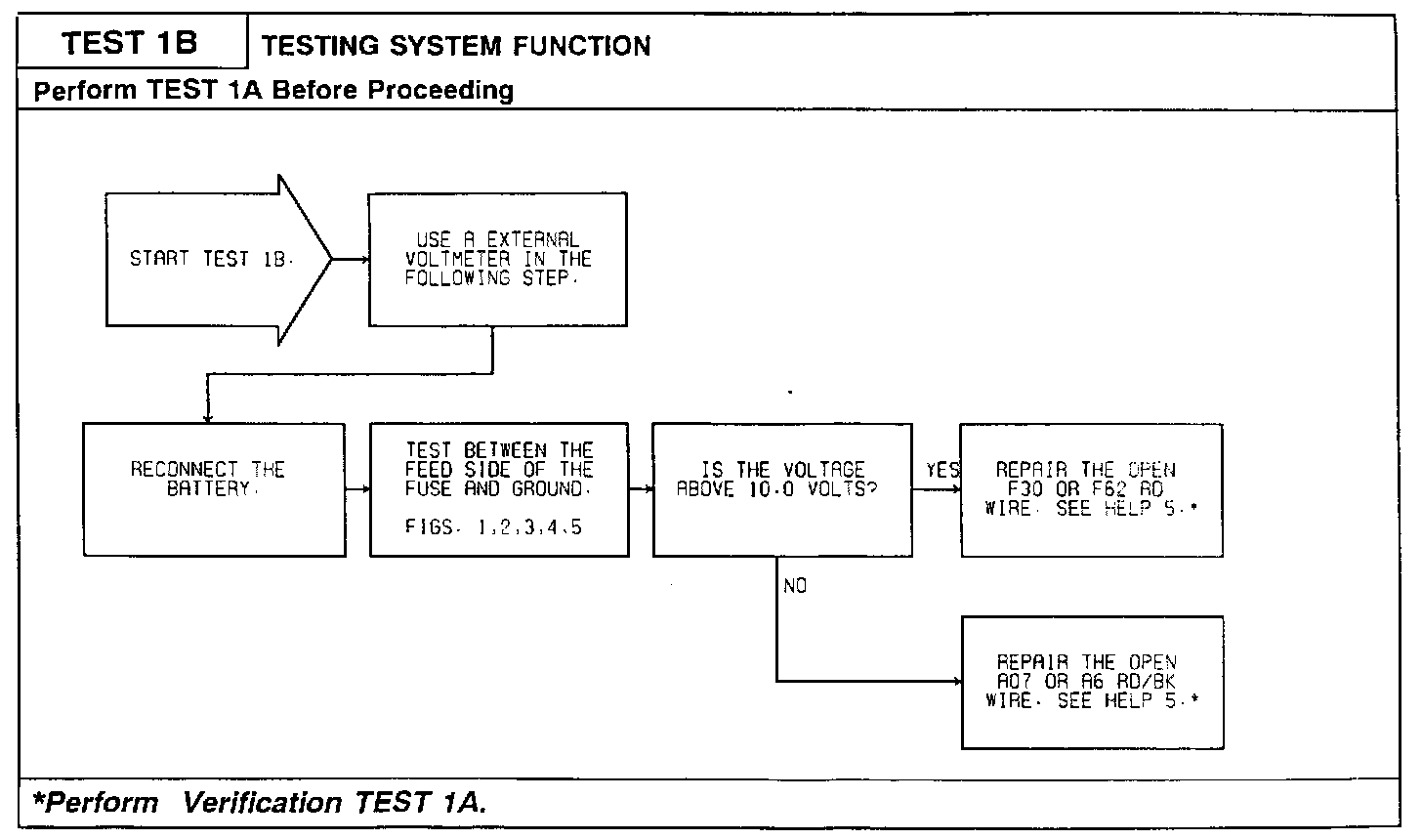

1B System Function

Test 1B, 1 Of 2:



Test 1B, 2 Of 4:
