Home >> Chrysler >> 1991 >> New Yorker V6-201 3.3L VIN R FI >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Manufacturer Code Charts >> Airbag System >> 12A Ignition Run Low Code

12A Ignition Run Low Code

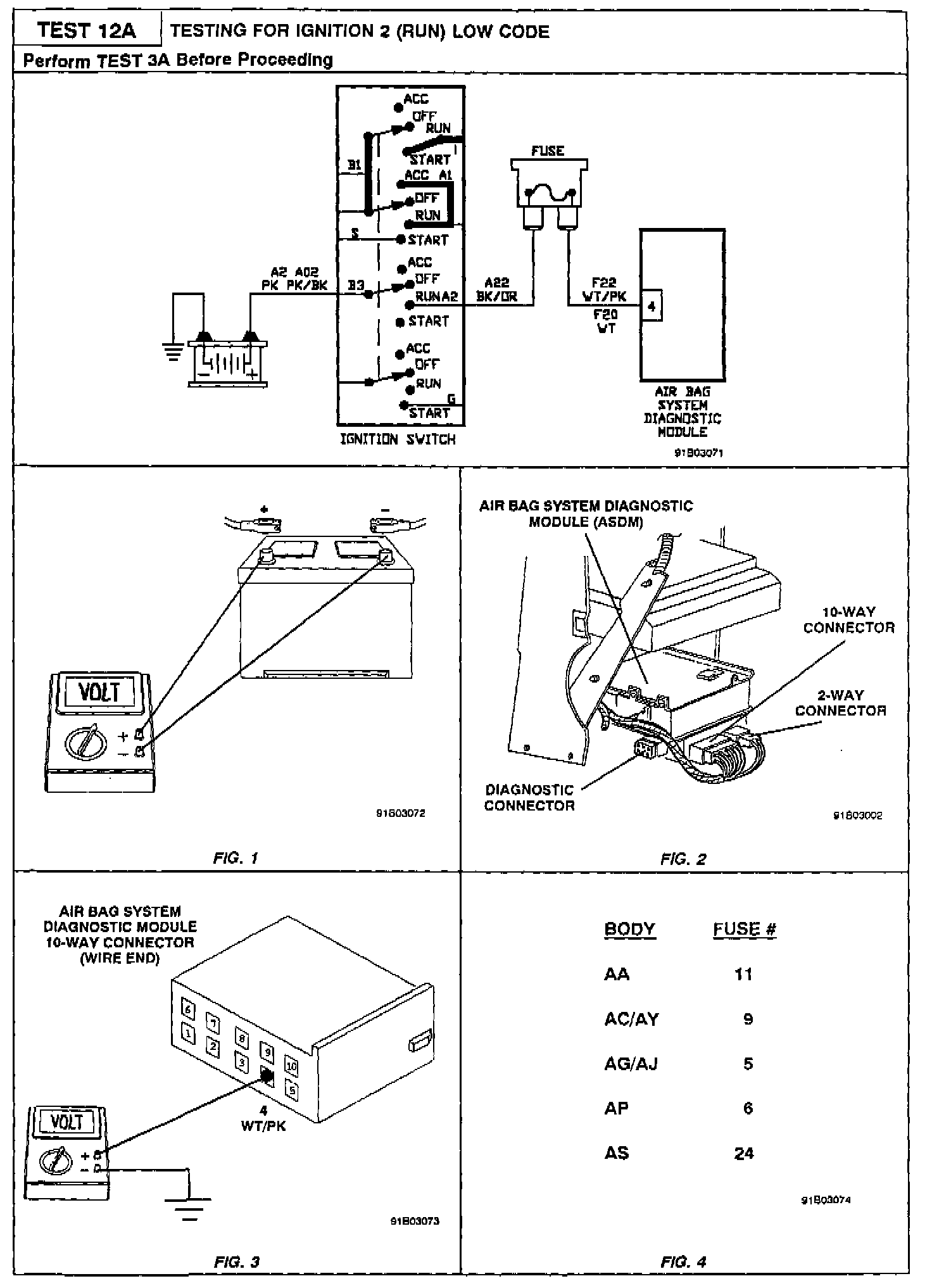

Test 12A, 1 Of 6:

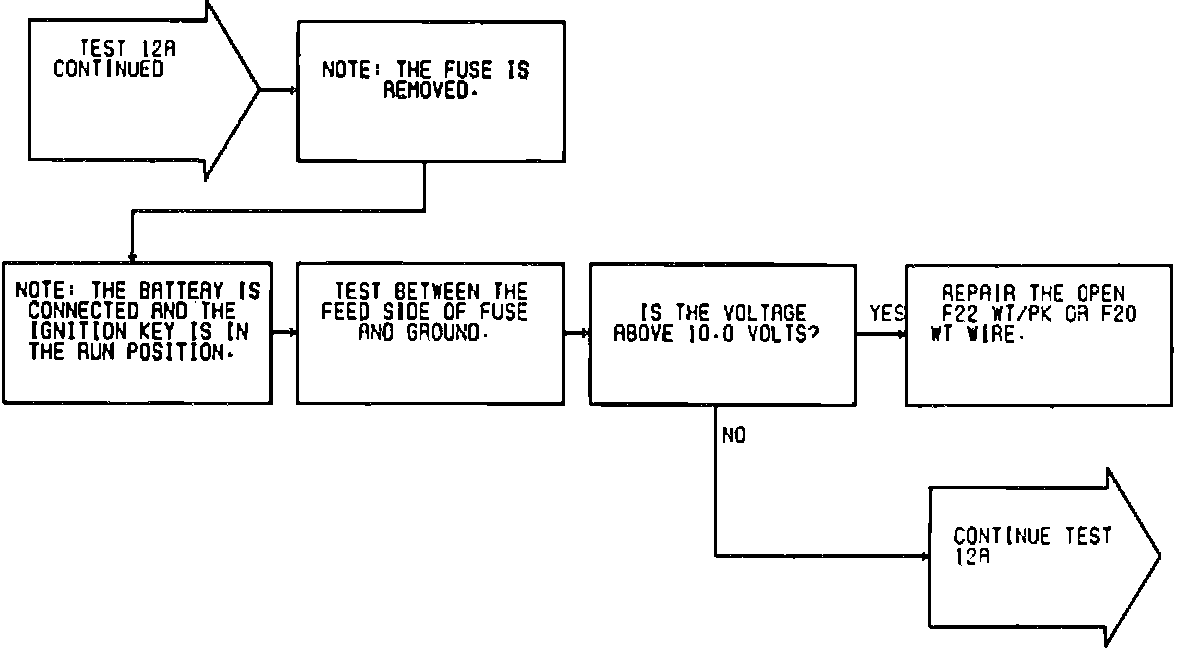

Test 12A, 2 Of 6:

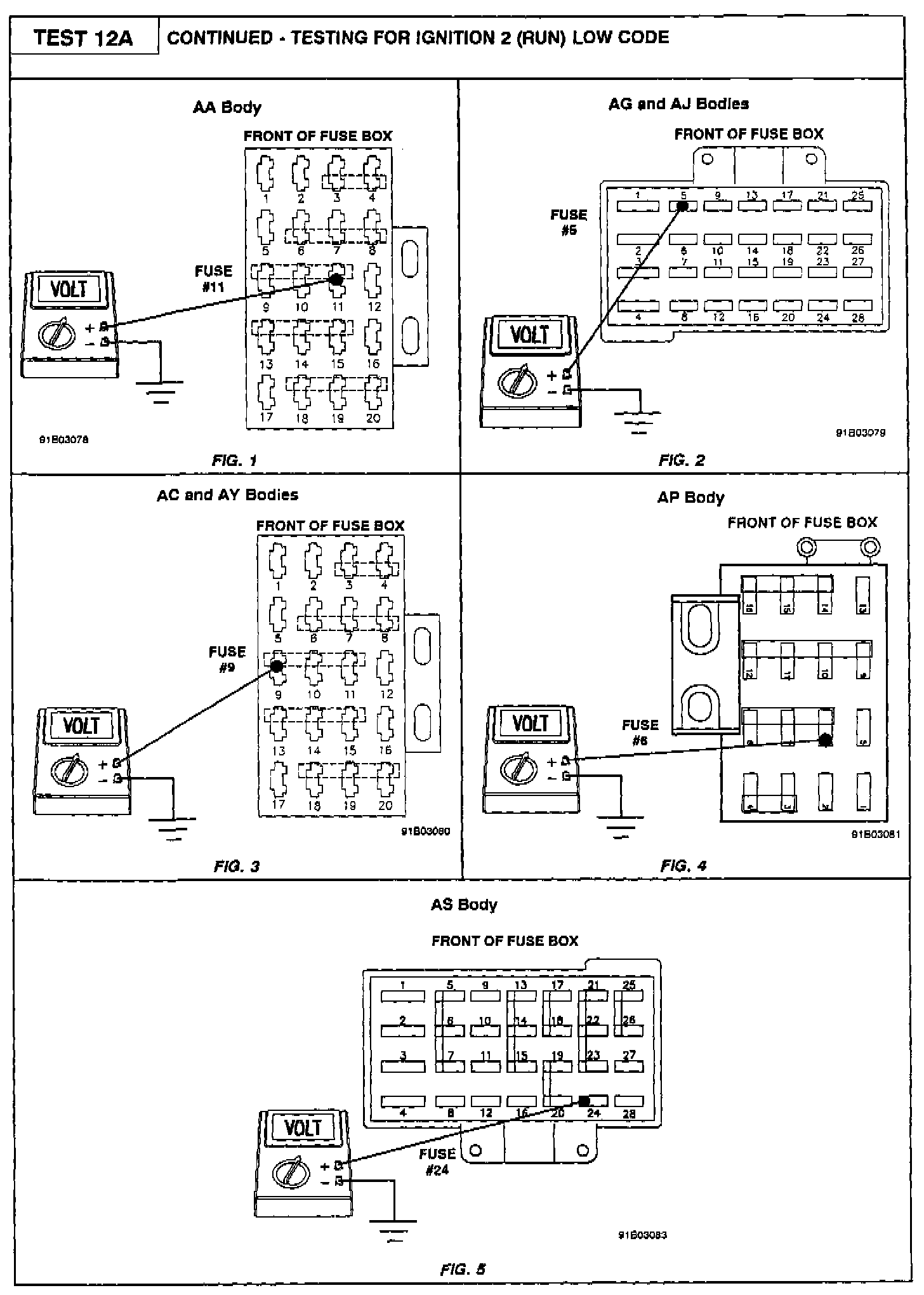

Test 12A, 3 Of 6:

Test 12A, 4 Of 6:

Test 12A, 5 Of 6:

Test 12A, 6 Of 6:
