FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1991
>>
New Yorker V6-201 3.3L VIN R FI
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Manufacturer Code Charts
>>
Airbag System
>>
10A Front Sensor Open Code
10A Front Sensor Open Code

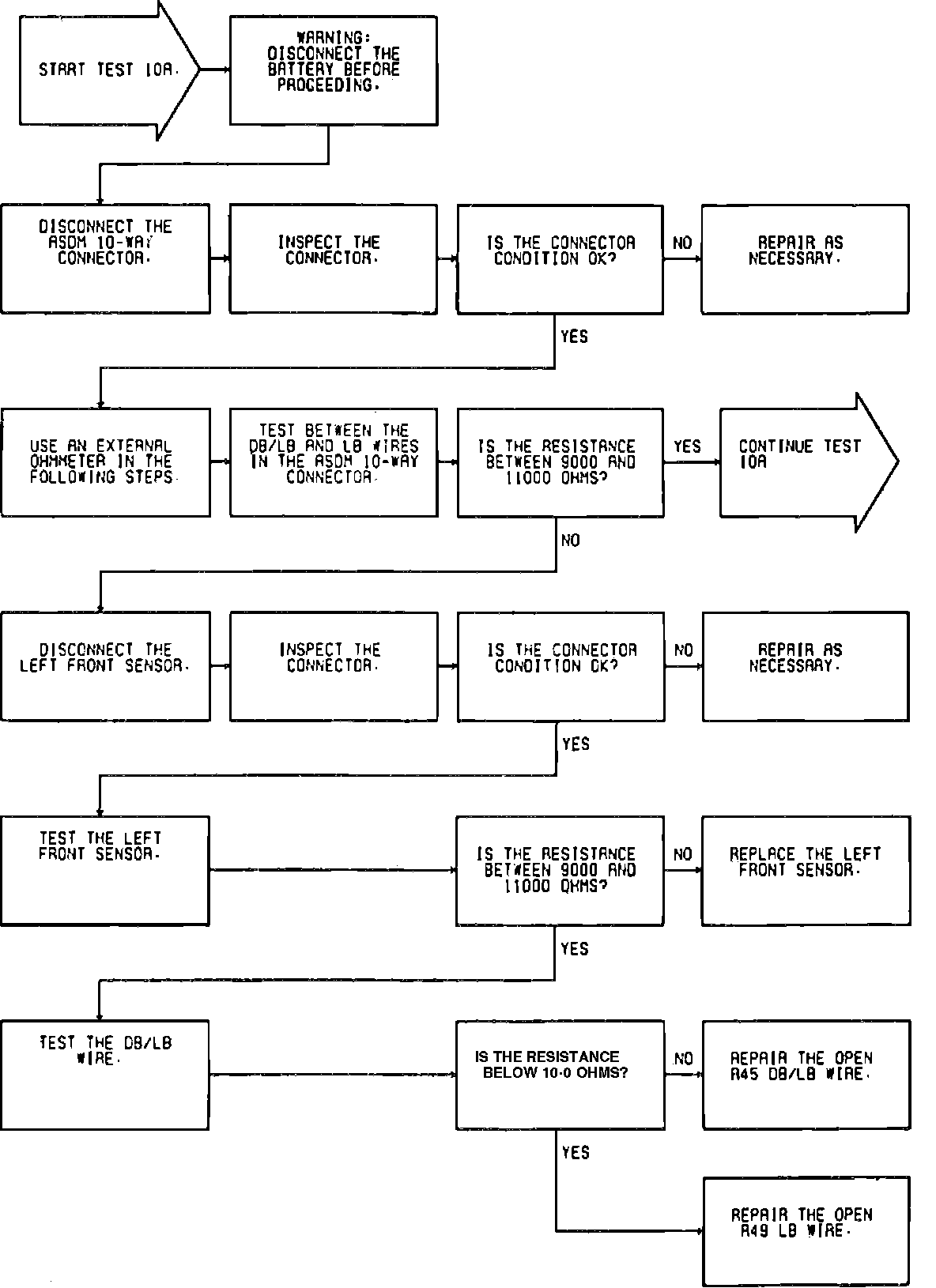

Test 10A, 1 Of 4:

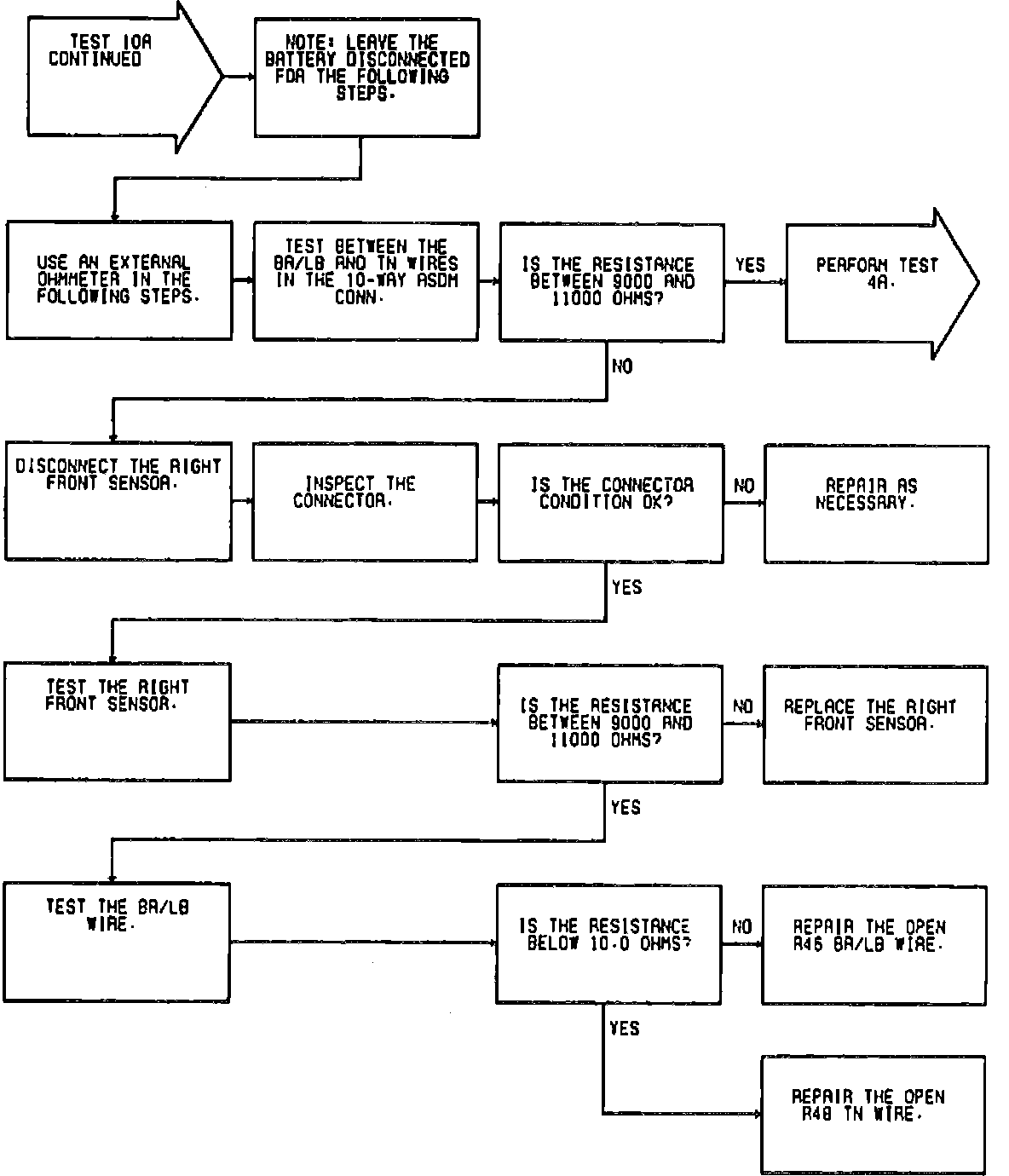

Test 10A, 2 Of 4:

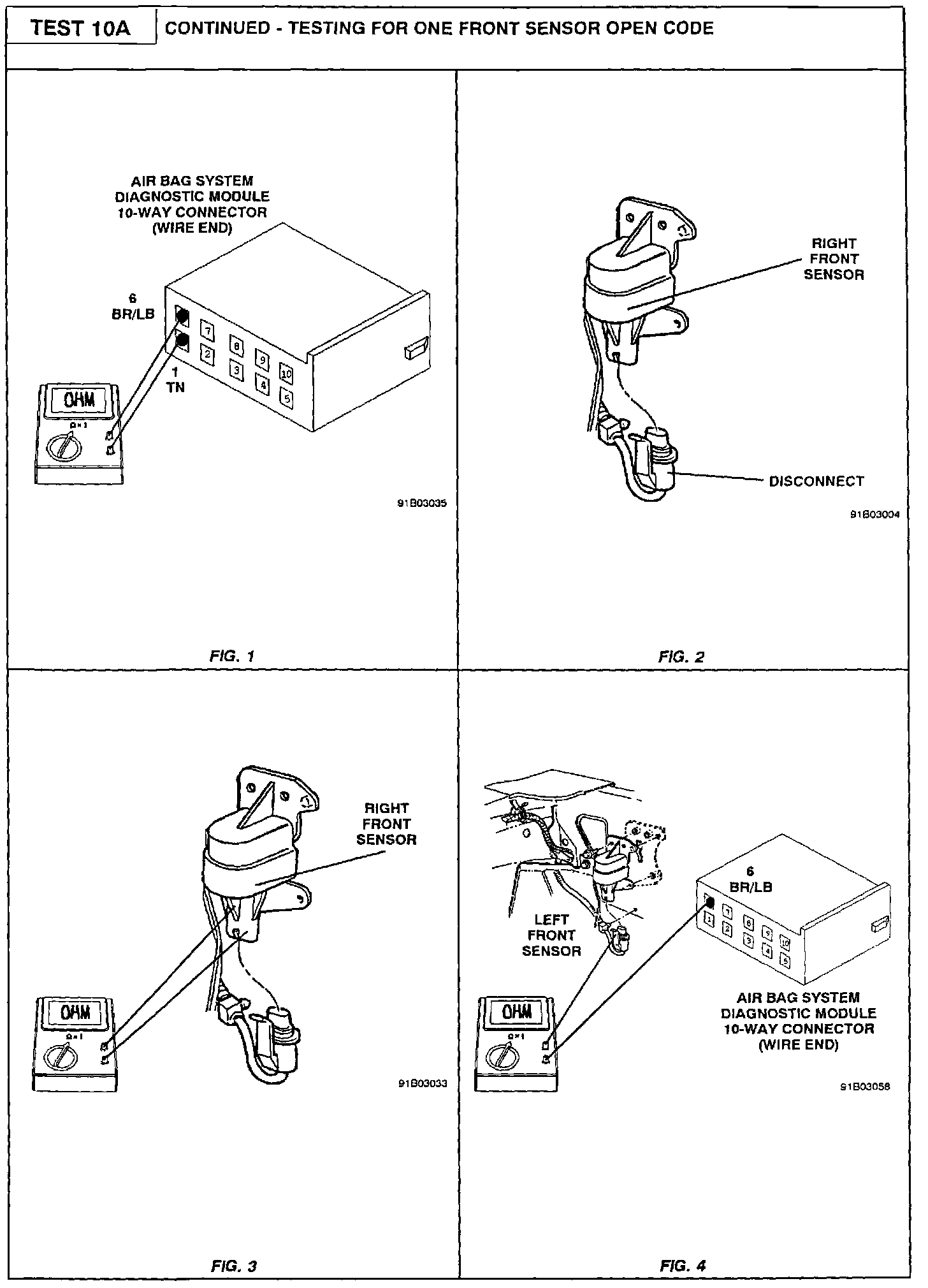

Test 10A, 3 Of 4:

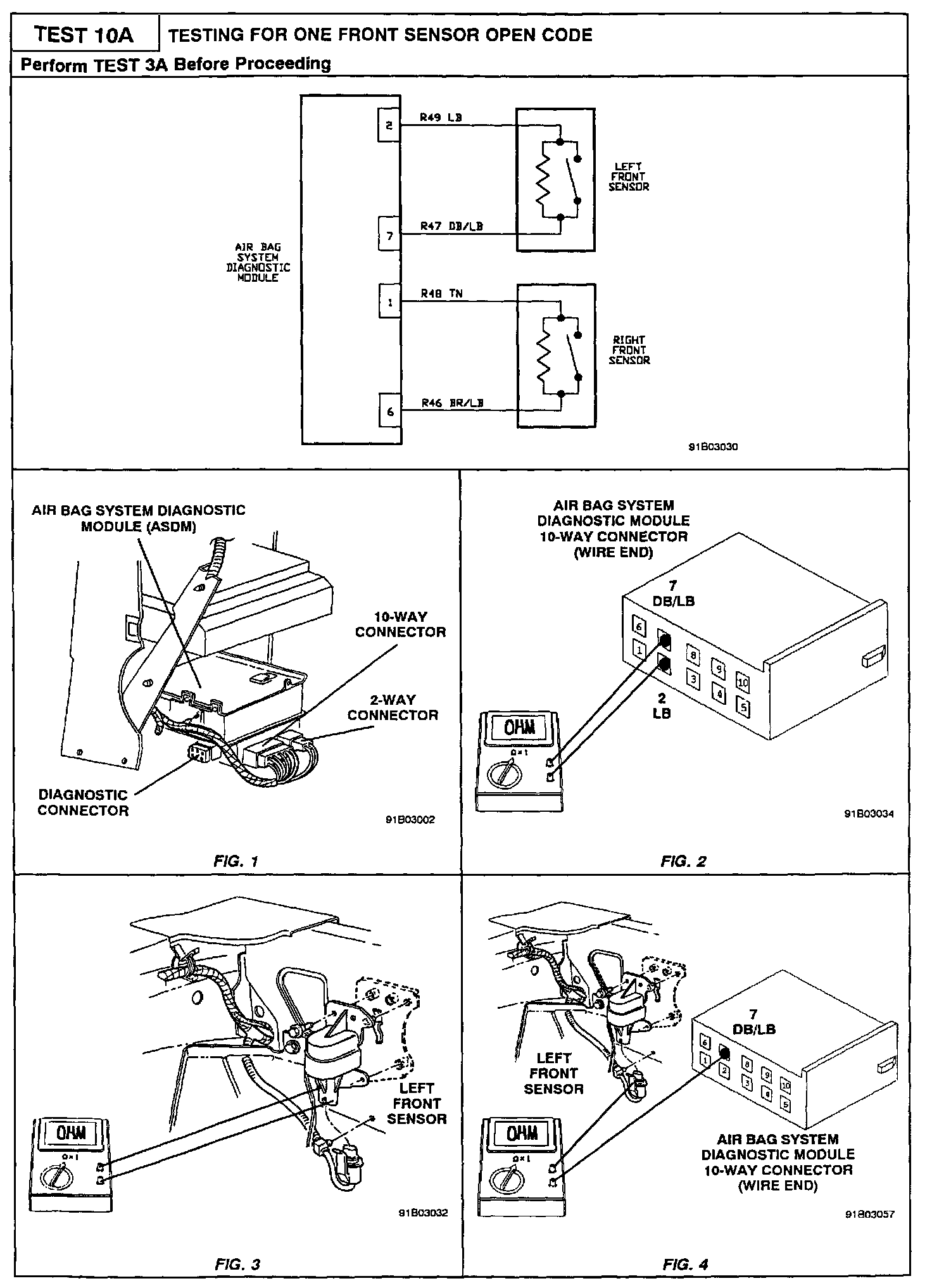

Test 10A, 4 Of 4:
