System Specifications

IGNITION TIMING

Basic Timing



Automatic 12° BTDC +/- 2° 700 RPM

Manual 12° BTDC +/- 2° 800 RPM

ELECTRONIC SPARK ADVANCE

Transmission RPM Degrees of Total Advance

Automatic 2000 38~ +/- 4~


RESISTANCE VALUES

Ignition Coil Primary Resistance:
21-27~C (70-80~F) 0.97-1.18 ohms
Ignition Coil Secondary Resistance:
21-27~C (70-80~F) 11,000-15,300 ohms



SPARK PLUGS

Gap .039 to .044 in. (0.9 mm - 1.1 mm)

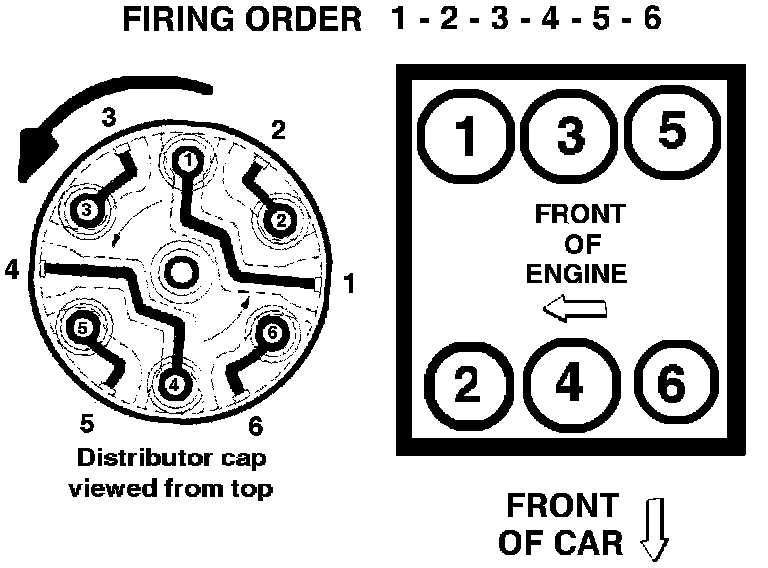

FIRING ORDER

Distributor Cap From The Top - Includes Connections Inside The Cap. (Round Terminals Are Plug Wire Connections On The Top Of The Cap.):
