FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Chrysler
>>
1991
>>
Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-9B Repairing "No Reference Signal During Cranking" Fault
>>
Part 1 of 2
Part 1 of 2

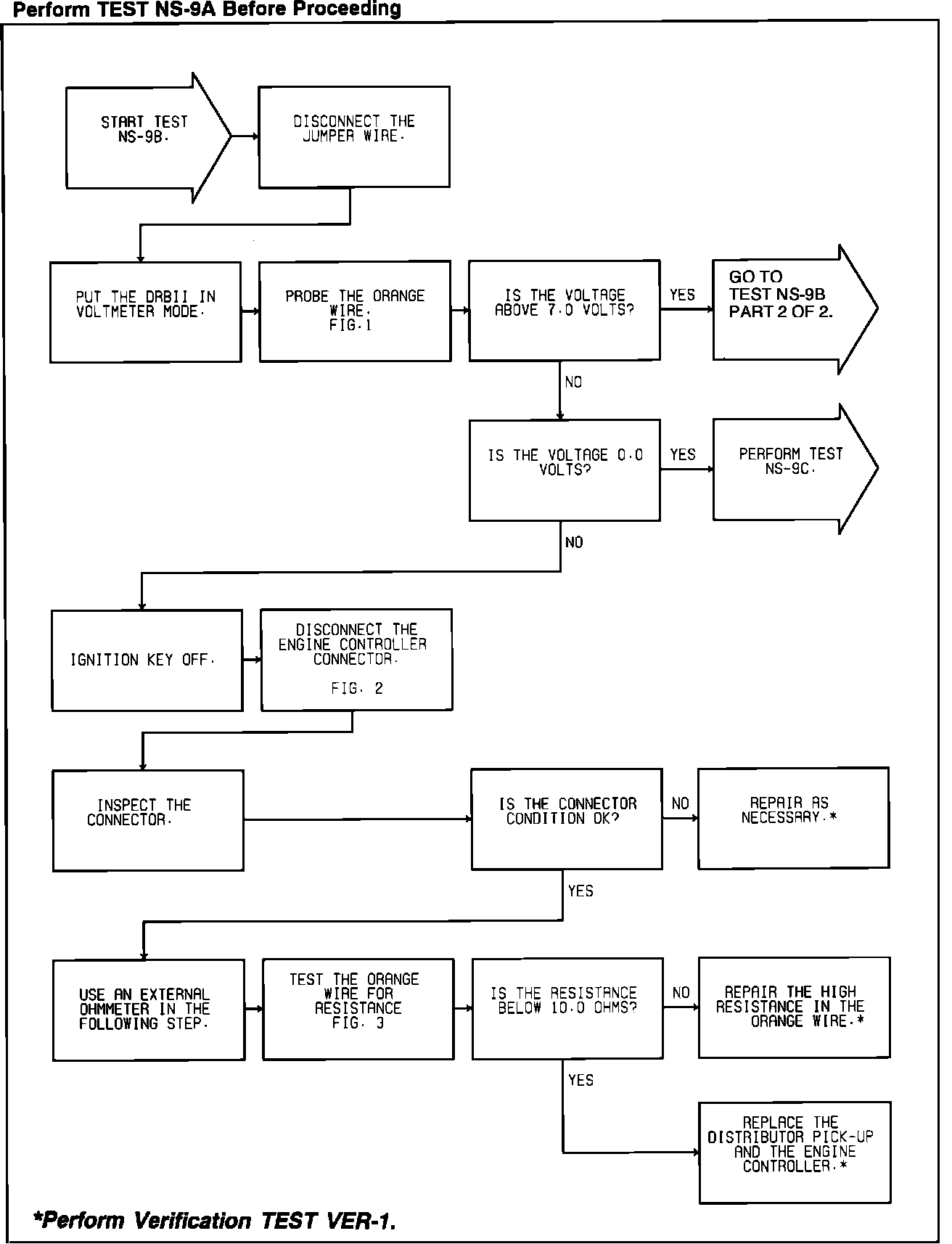

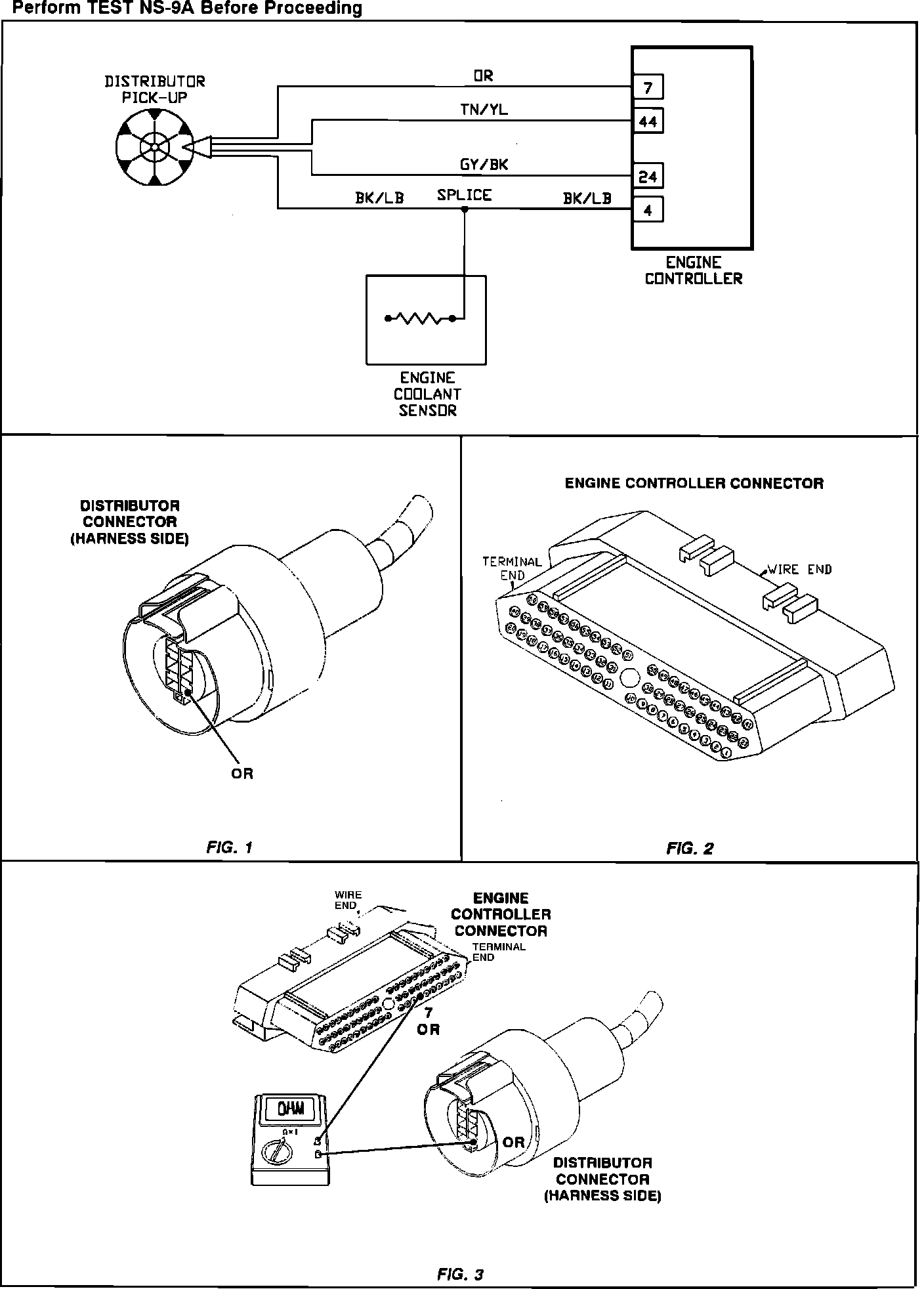

Test NS-9B - "No Reference Signal During Cranking":
Test NS-9B - "No Reference Signal During Cranking":
