No Start Test
>>
No Start (NS) Tests
>>
NS-8B Checking System Power Ground TPS MAP Sensor & SBEC
>>
Part 2 of 2
Part 2 of 2

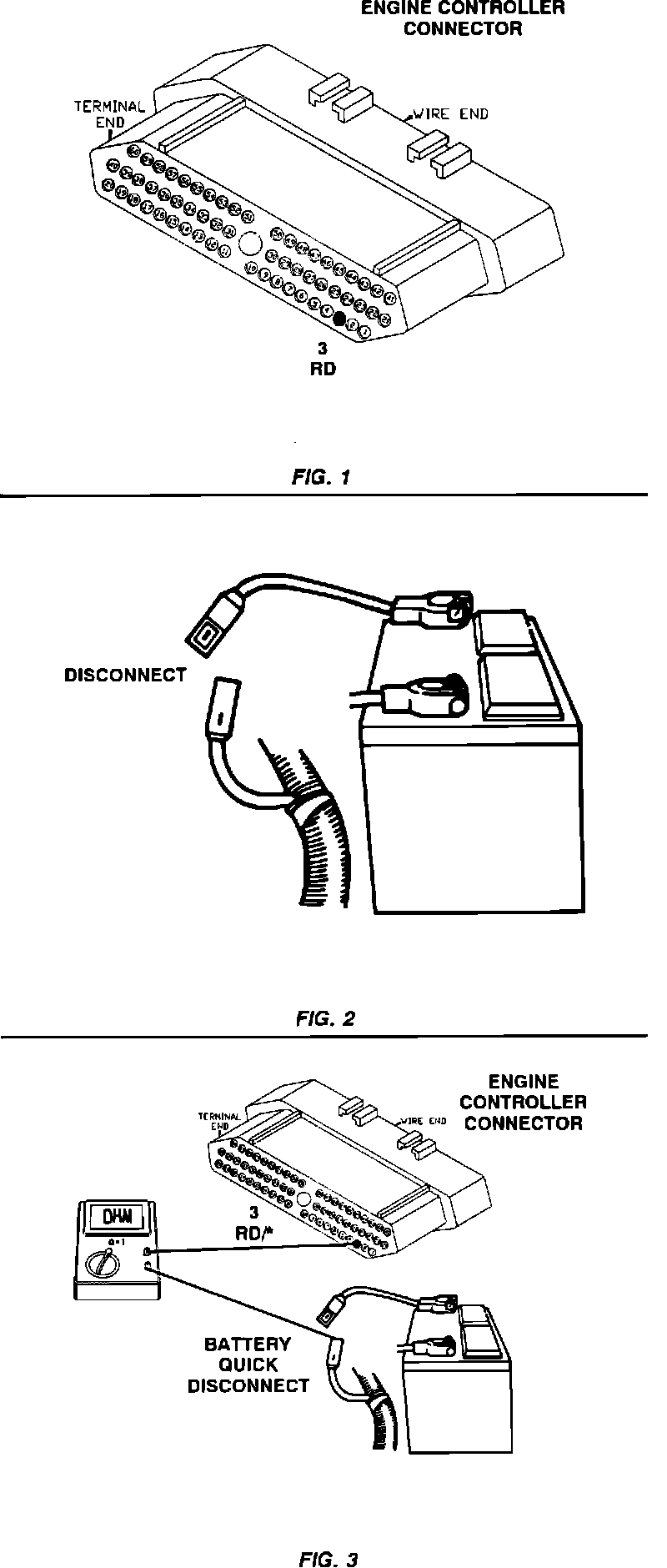

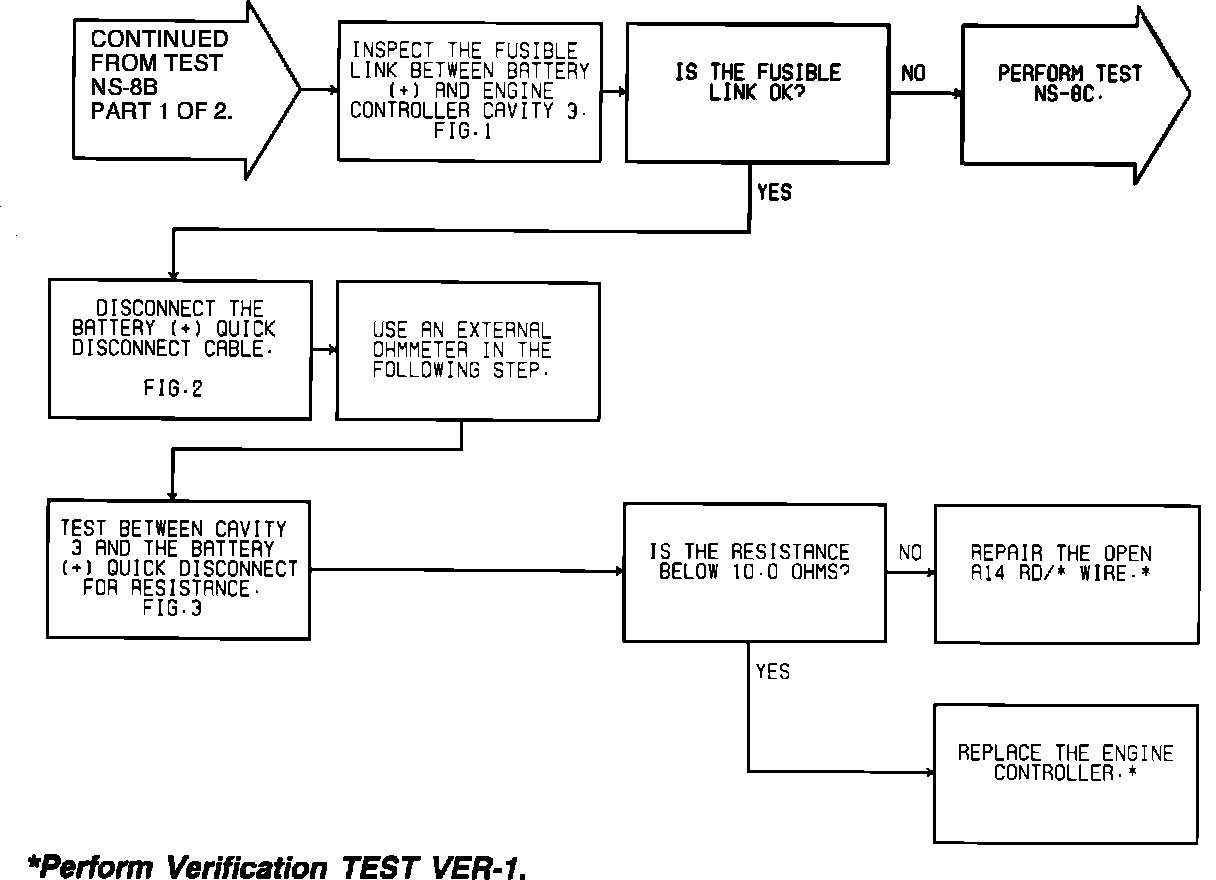

Test NS-8B - System Power And Ground, TPS, MAP, And Engine Controller Operation:
Test NS-8B - System Power And Ground, TPS, MAP, And Engine Controller Operation:
