Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-8A Checking System Power Ground TPS MAP Sensor & SBEC
>>
Part 1 of 3
Part 1 of 3

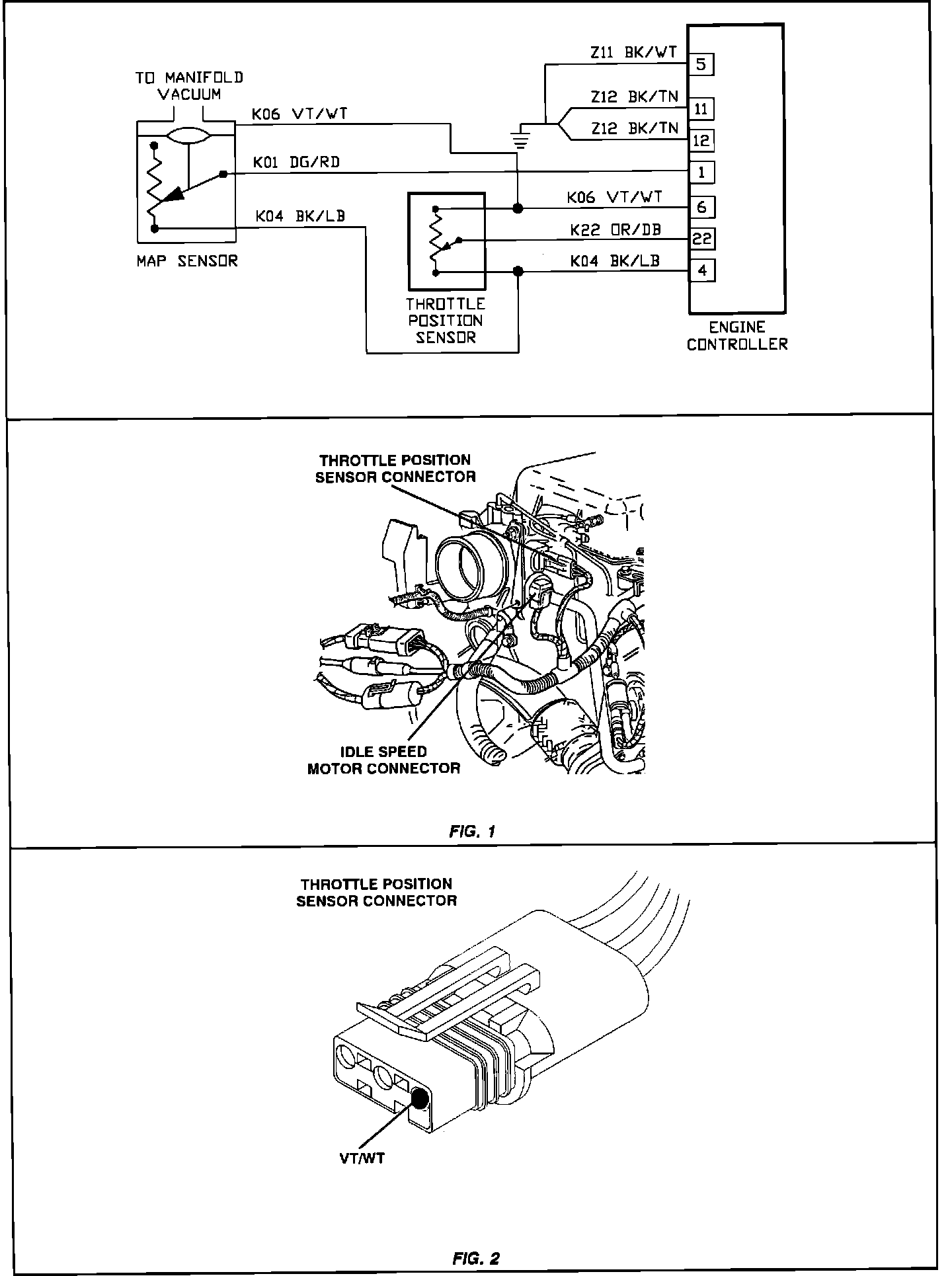

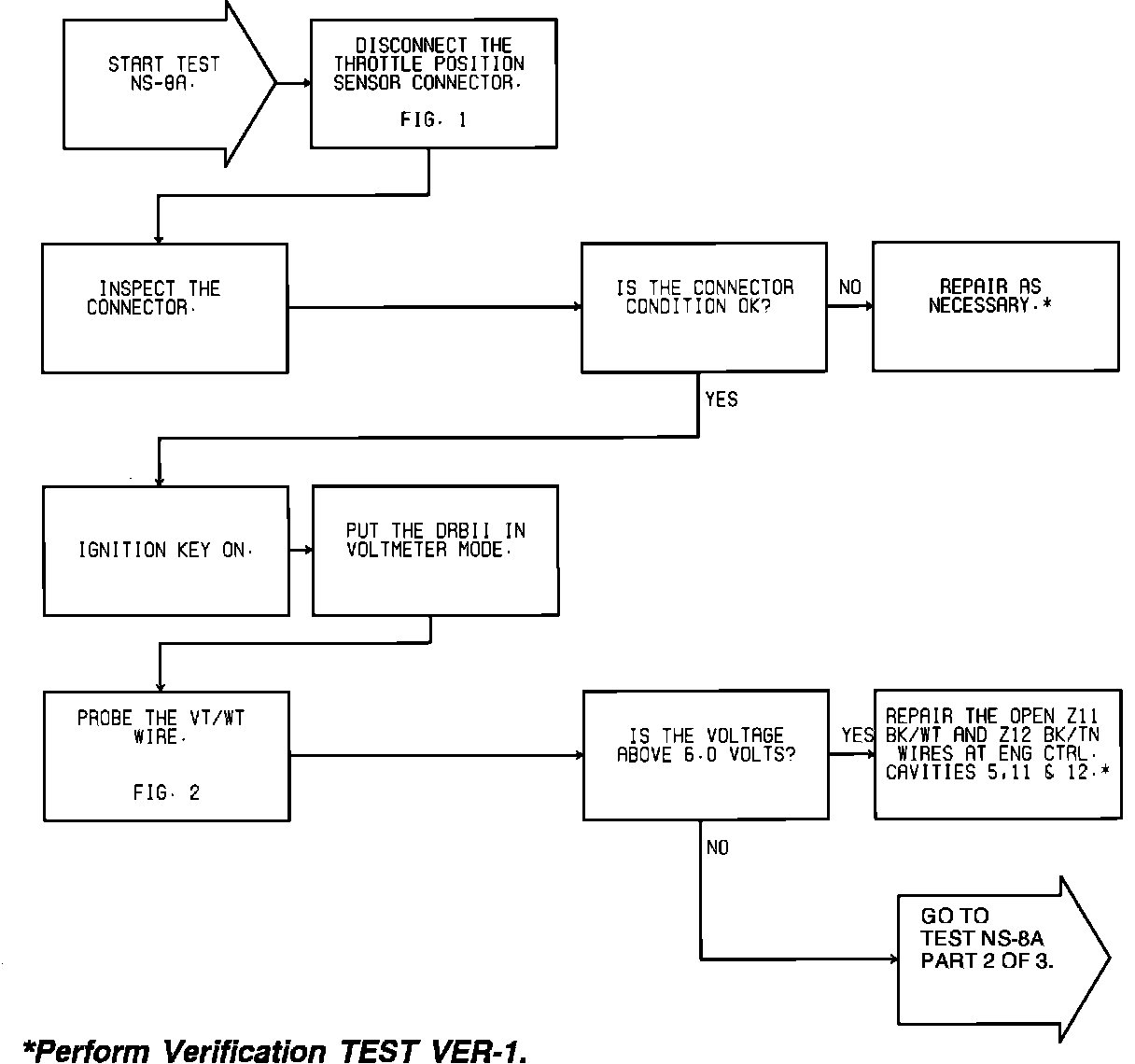

Test NS-8A - System Power And Ground, TPS, MAP, And Engine Controller Operation:
Test NS-8A - System Power And Ground, TPS, MAP, And Engine Controller Operation:
