NS-7A Checking Power to Injectors & Ignition Coil
NS-7A Checking Power to Injectors & Ignition Coil

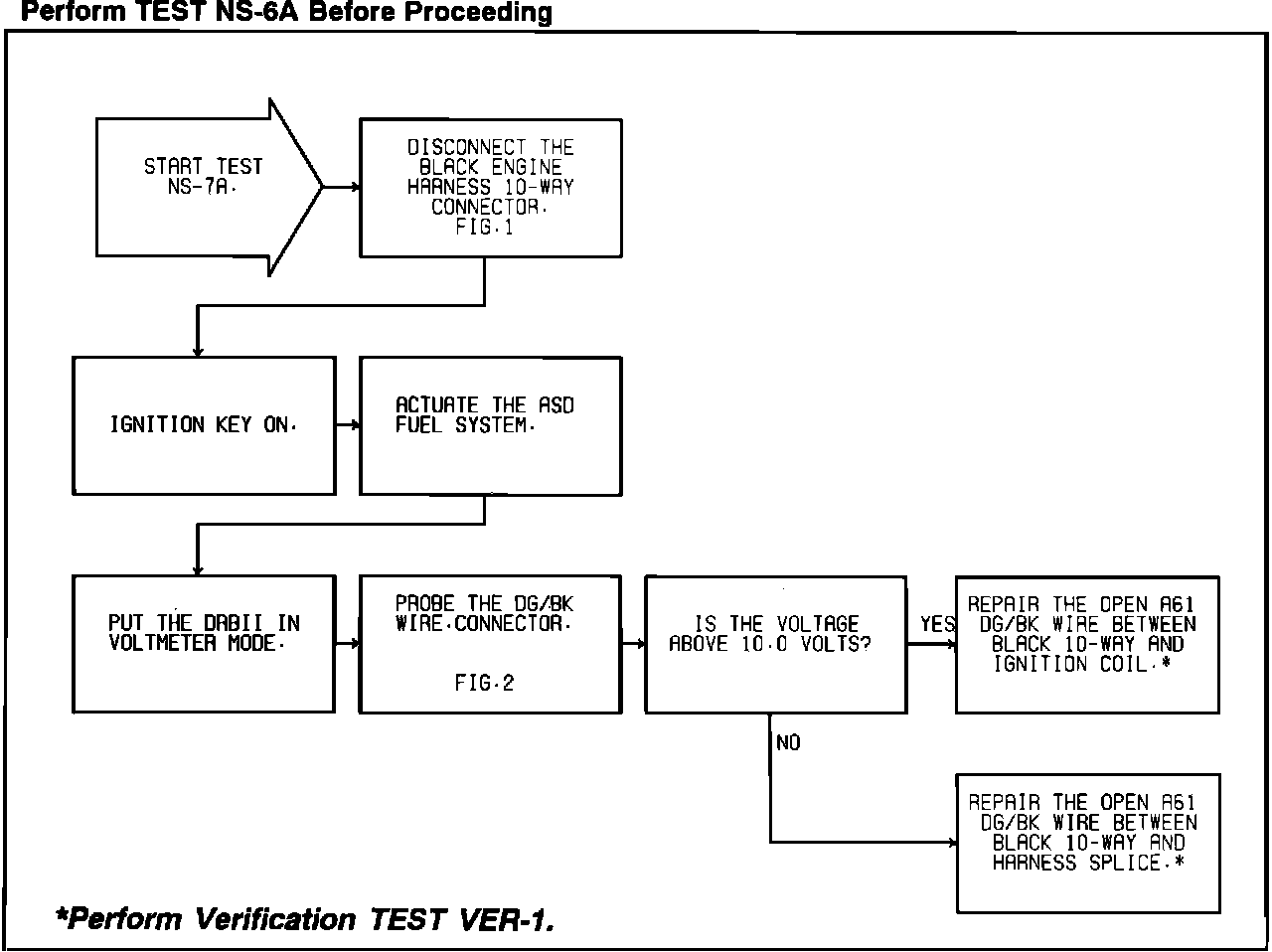

Test NS-7A - Checking Power Circuit To Injectors And Ignition Coil:
Test NS-7A - Checking Power Circuit To Injectors And Ignition Coil:
