NS-5A Checking Coil & Control Circuit

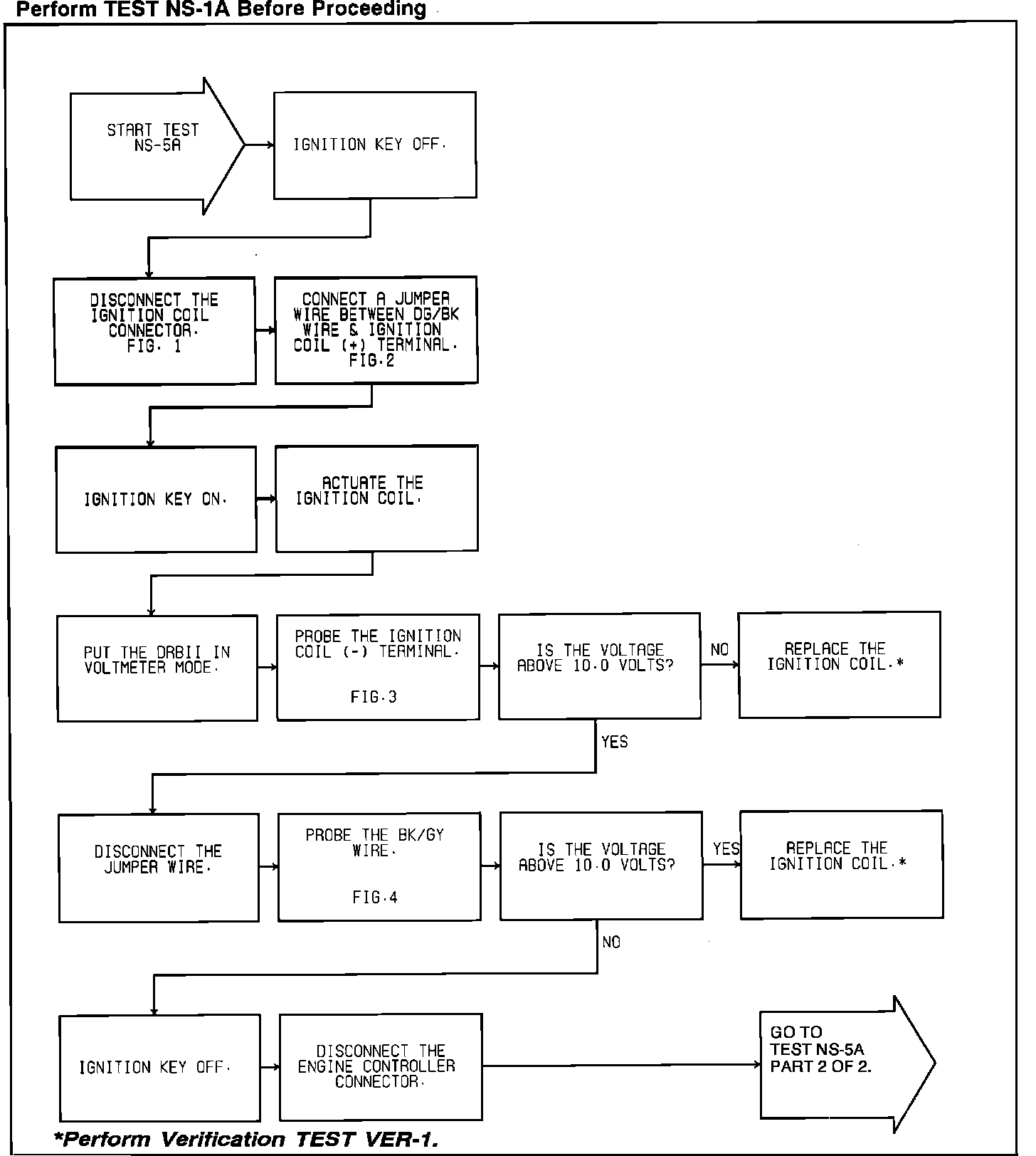

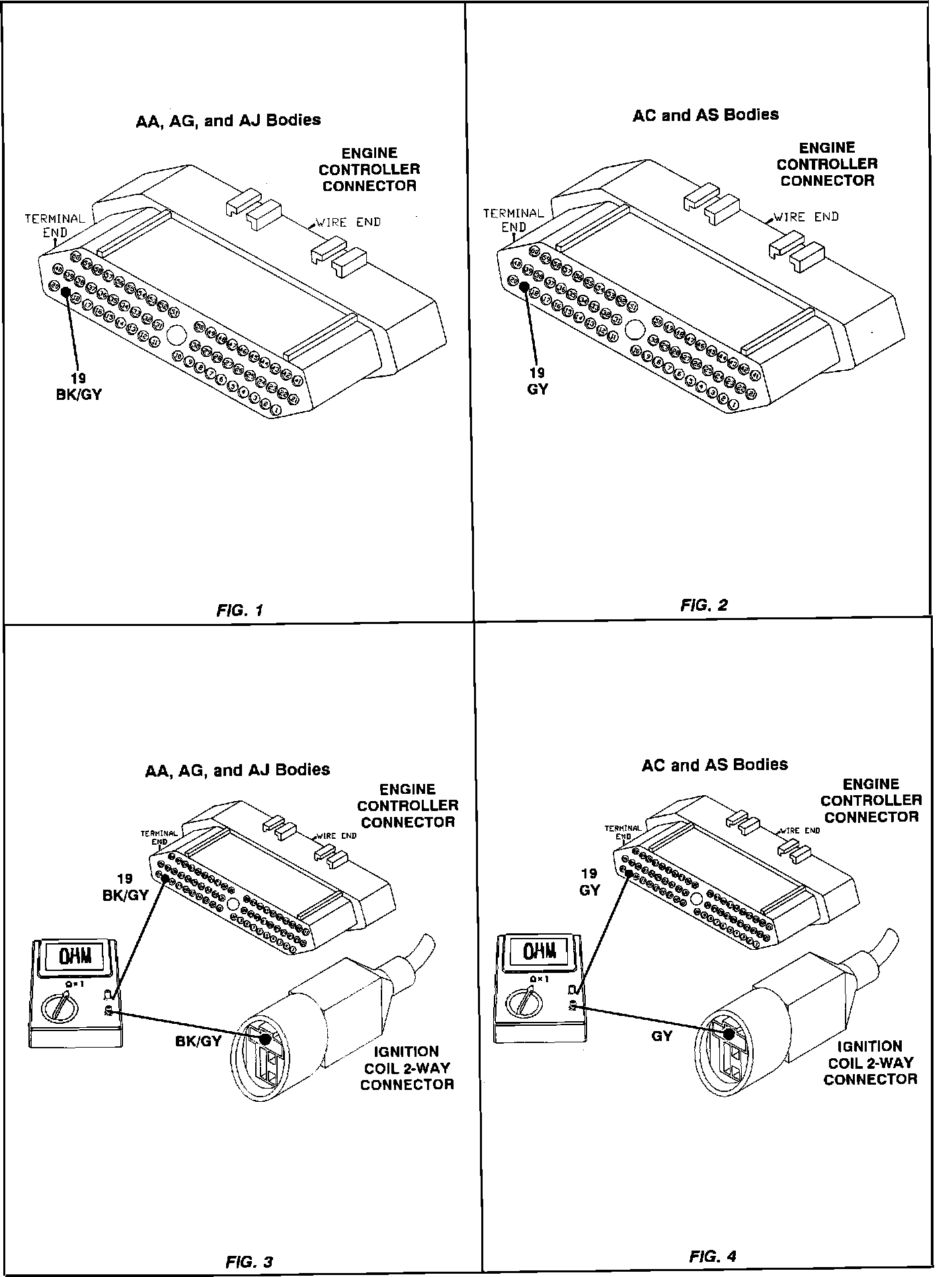

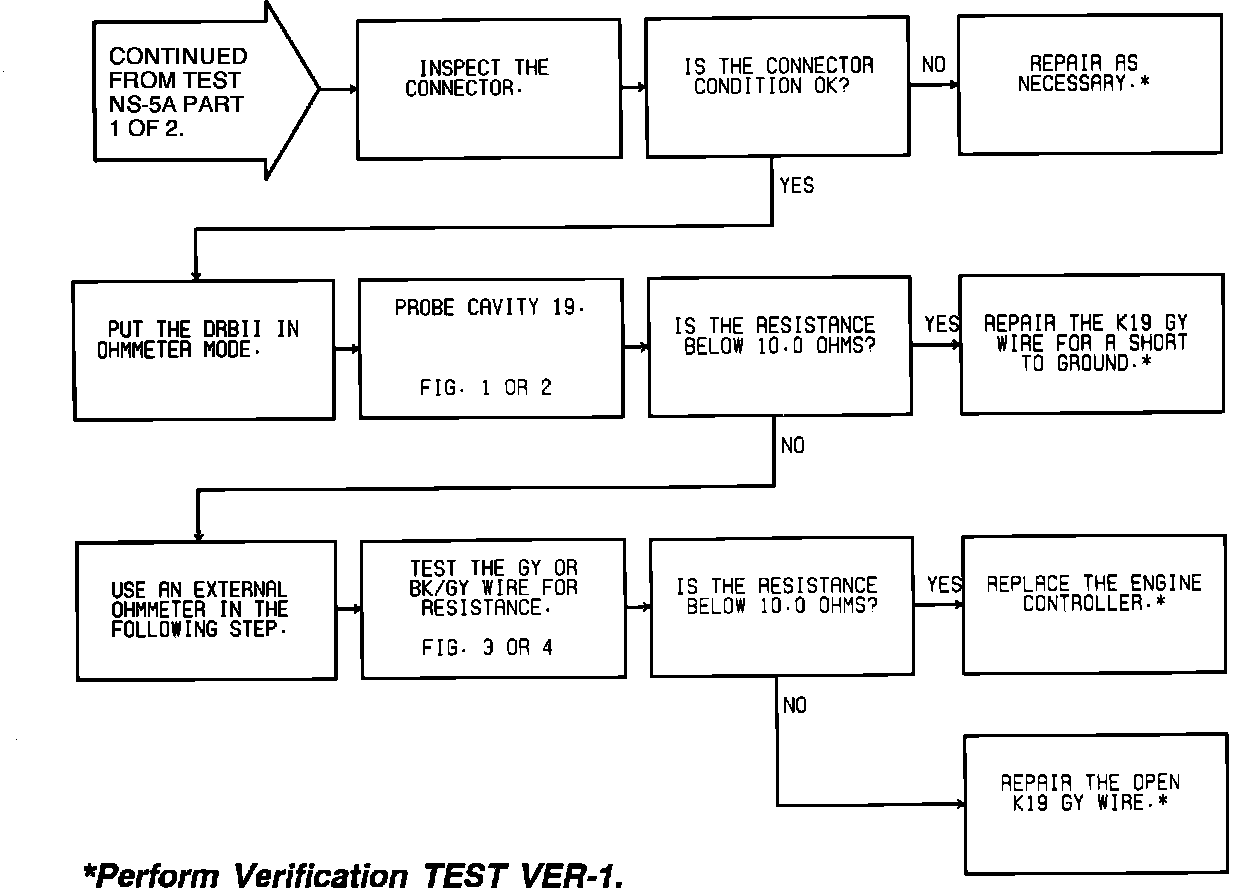

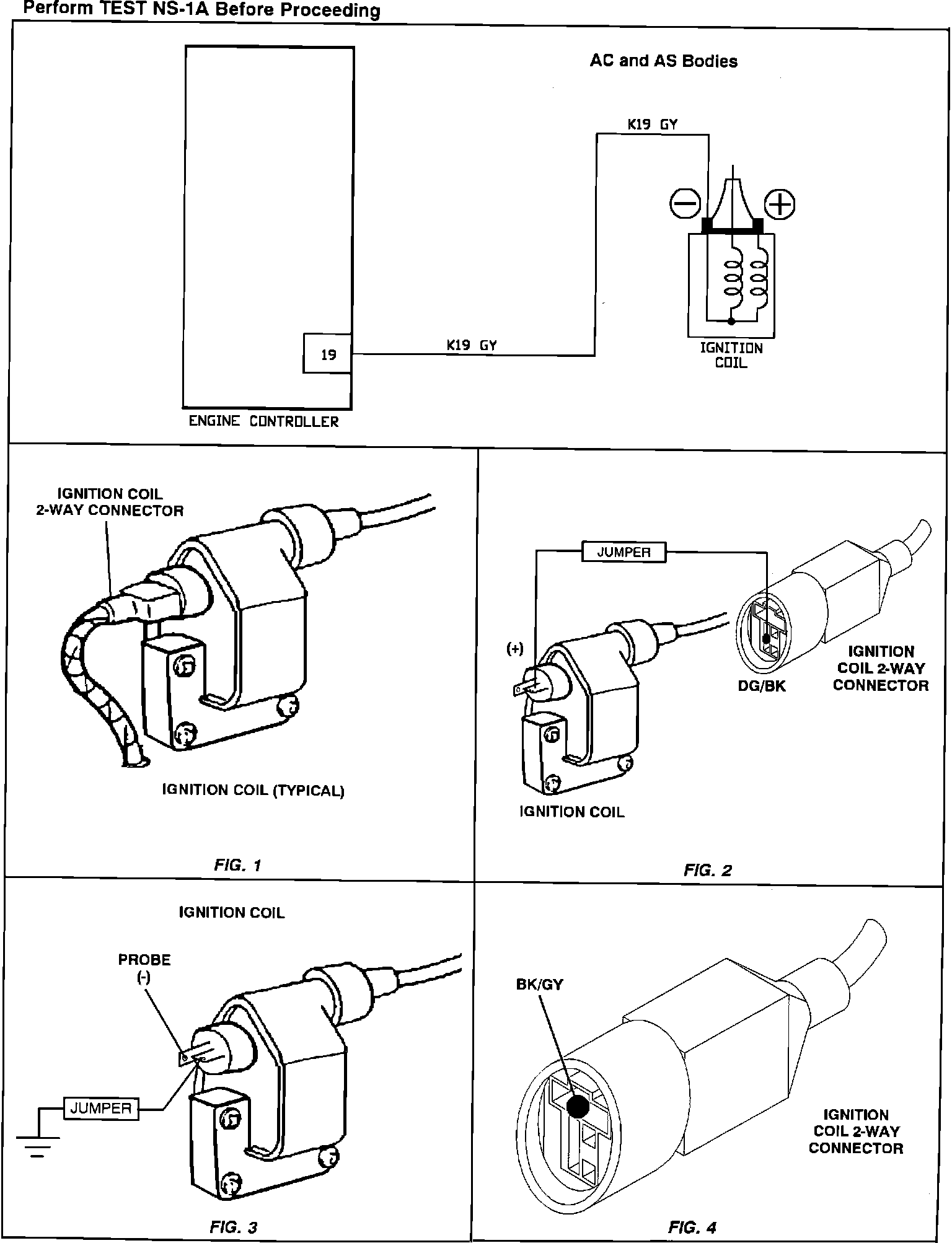

Test NS-5A - Checking For Defective Coil Or Control Circuitry:

Test NS-5A - Checking For Defective Coil Or Control Circuitry:

Test NS-5A - Checking For Defective Coil Or Control Circuitry:

Test NS-5A - Checking For Defective Coil Or Control Circuitry:
