Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Computers and Control Systems
>>
Testing and Inspection
>>
Symptom Related Diagnostic Procedures
>>
No Start Test
>>
No Start (NS) Tests
>>
NS-4C Checking Fuel Pump & Power to Fuel Pump
NS-4C Checking Fuel Pump & Power to Fuel Pump

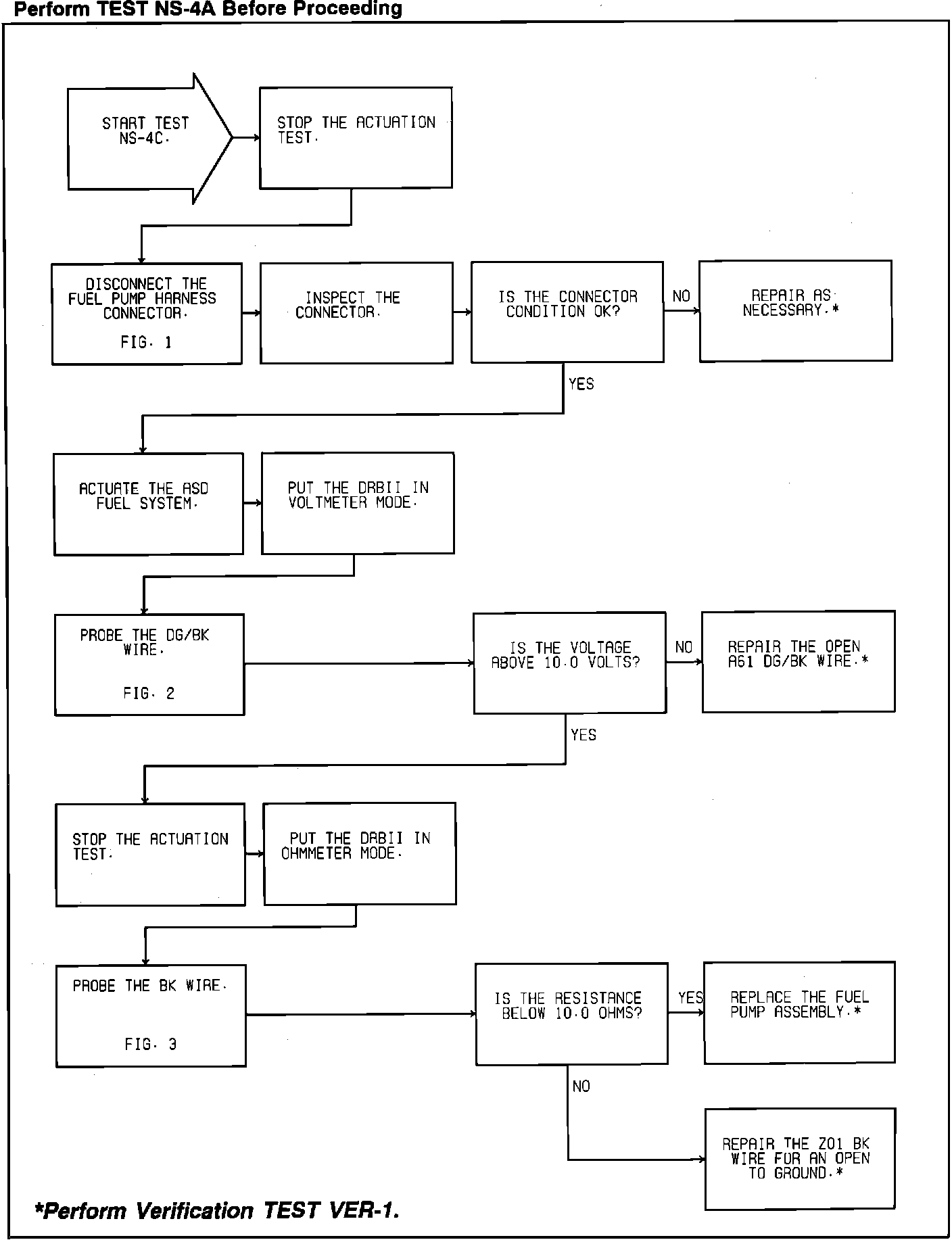

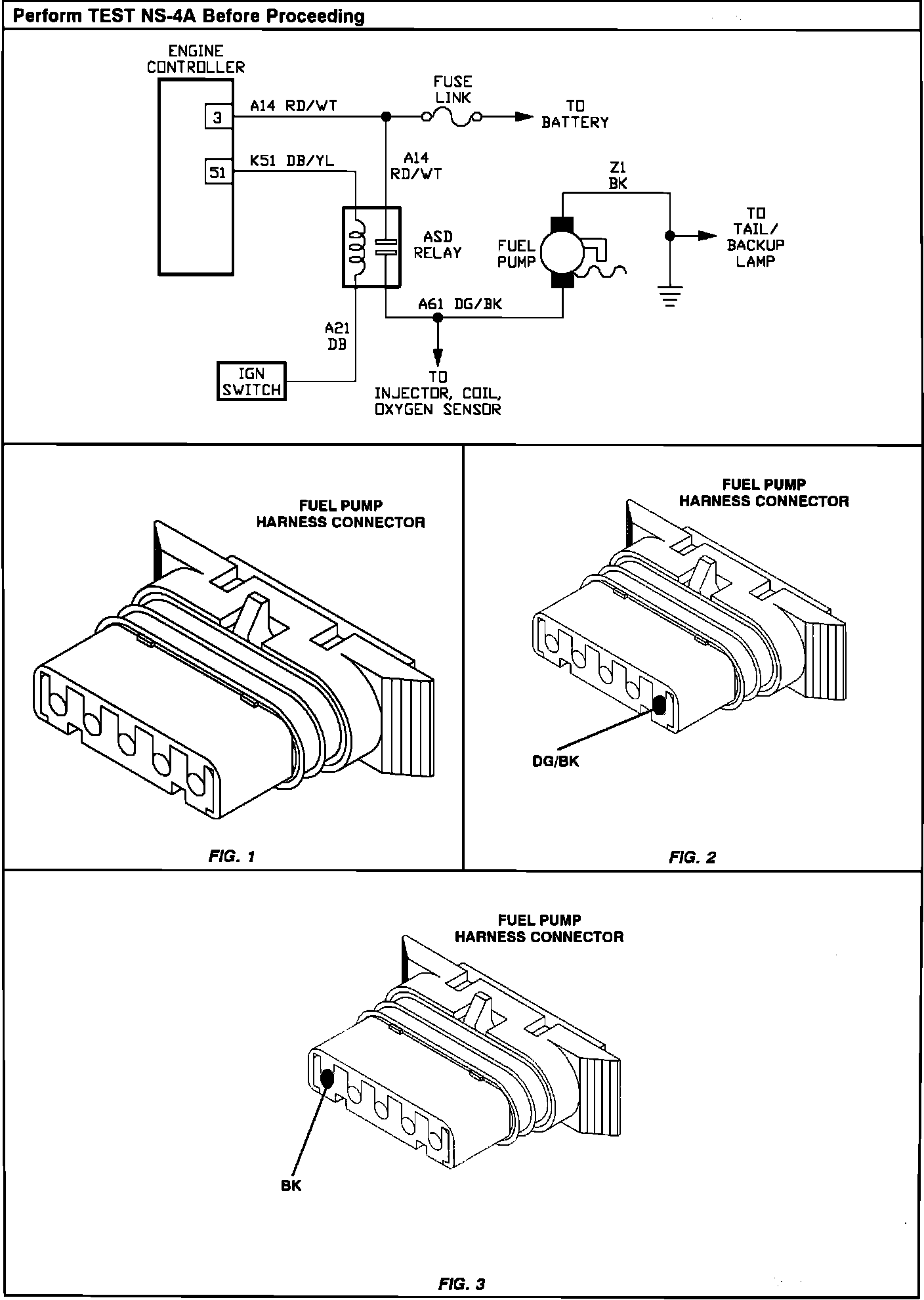

Test NS-4C - Checking Fuel Pump And Power To Fuel Pump:
Test NS-4C - Checking Fuel Pump And Power To Fuel Pump:
