Home >> Chrysler >> 1991 >> Lebaron Convertible V6-181 2972cc 3.0L SOHC VIN 3 FI >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> No Start Test >> No Start (NS) Tests >> NS-4B Checking Fuel Lines & Pressure Regulator

NS-4B Checking Fuel Lines & Pressure Regulator

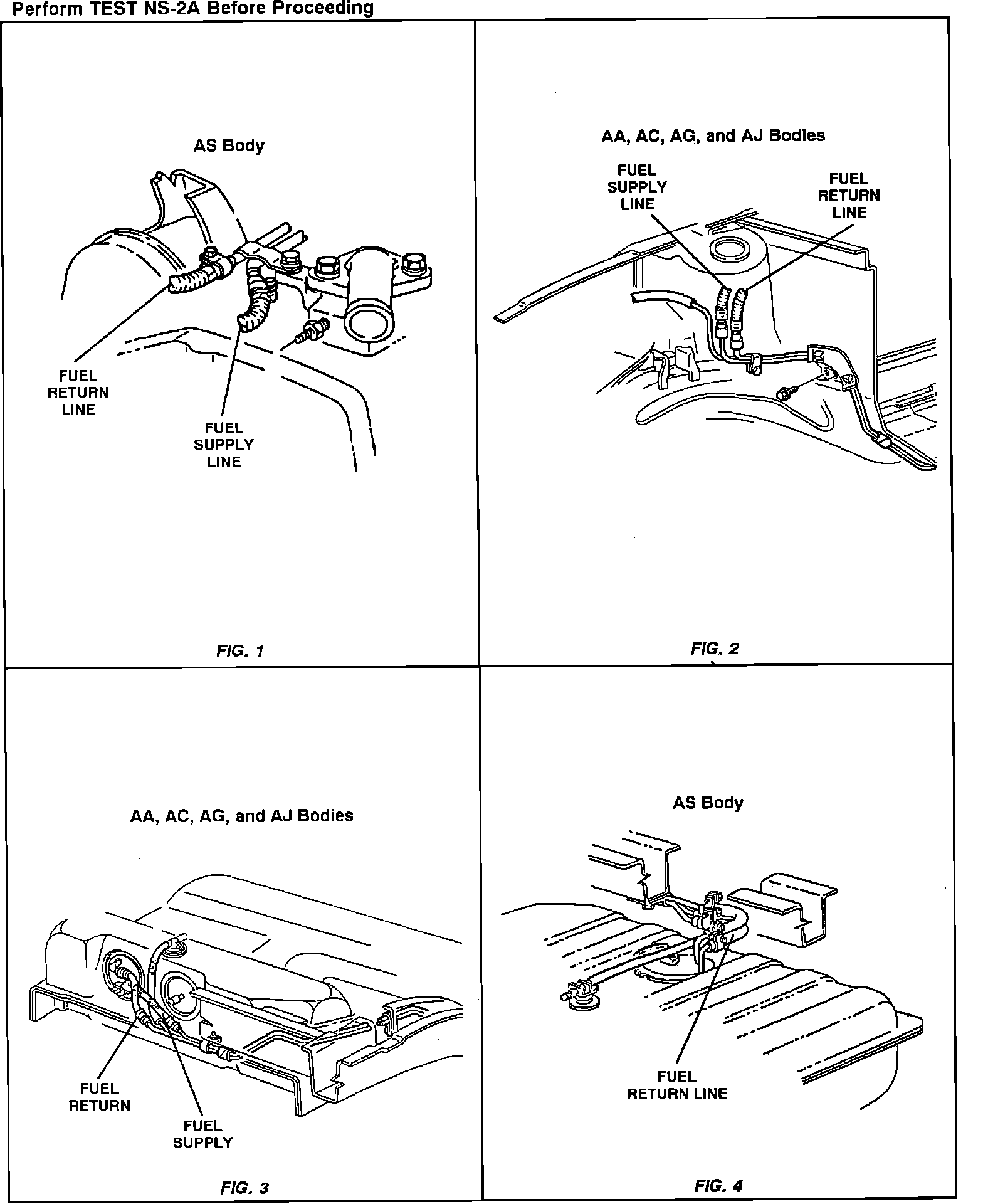

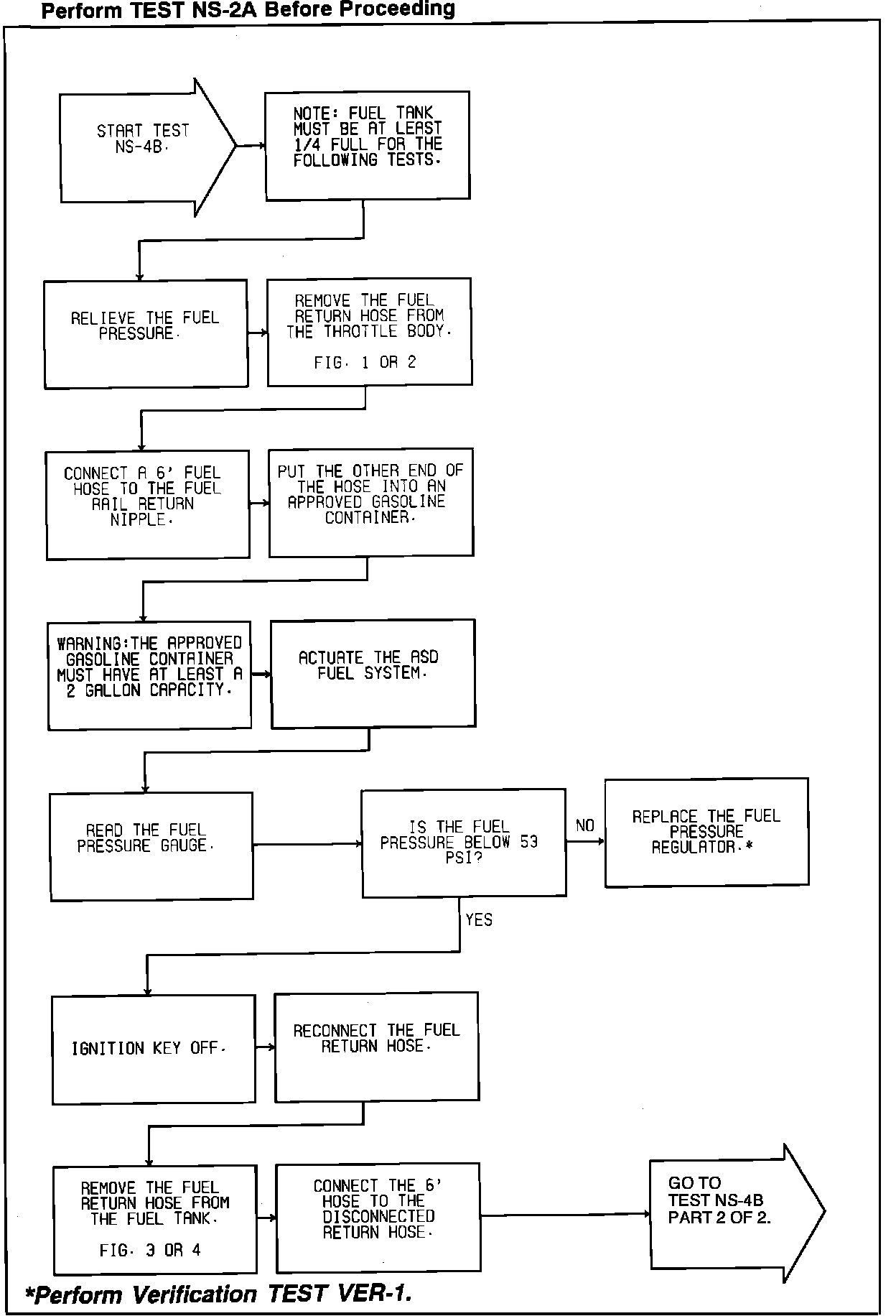

Test NS-4B - Checking Fuel Return Lines And Pressure Regulator:



Test NS-4B - Checking Fuel Return Lines And Pressure Regulator:



Test NS-4B - Checking Fuel Return Lines And Pressure Regulator:
